Chapter

Chapter 11

File Functions

11–3

In the second instance, the memory card is installed in the front panel; thus,
the file list displays the files on the card, the

button is active, and the

memory available/used/free message appears in the status message field.
Also appearing in the message field are the following special data and status
information:

•

Type –– This indicates whether or not the card is formatted for CVIM2
data.

•

Size –– This indicate the total capacity, in Kbytes, of the memory card.

•

Write Protect –– This indicate whether the write protect switch on the
memory card is ON (write protected) or OFF (not write protected).

•

Battery –– This indicates the battery condition: OK, or Low.

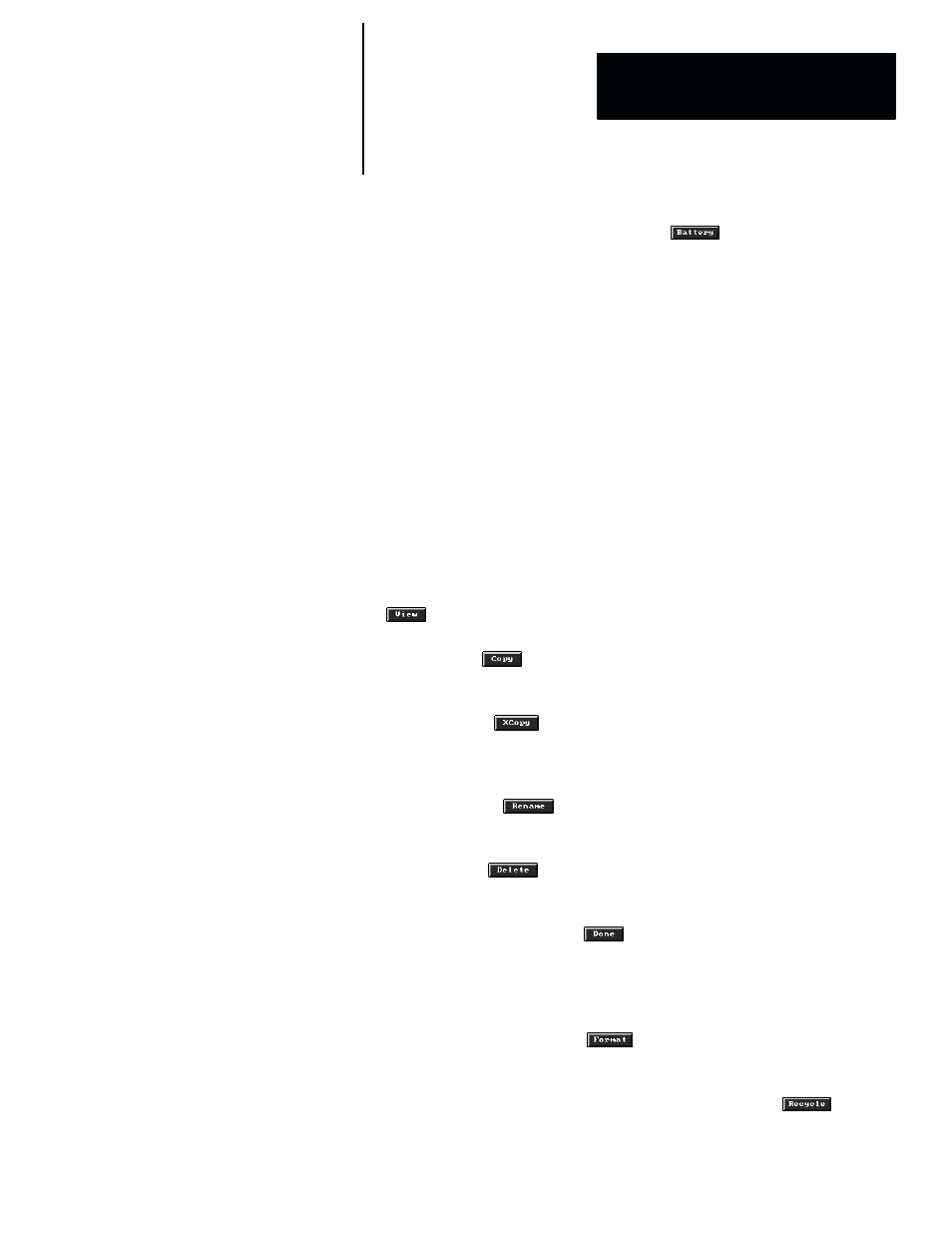

File Panel Buttons

Note that a

File

panel contains several buttons and one data entry field. Here

is a brief description of the buttons appearing at the bottom of the panel:

•

View –– When you highlight one file in the file list, and then pick the

button, the “

Viewing file

” panel appears and displays the contents

of that file (see the View section on page 11–6, for details).

•

Copy –– The

button remains shaded type until you pick (highlight)

one or more of the listed files. You can then pick the button to copy the
highlighted file or files (see the Copy section on page 11–7, for details).

•

XCopy –– The

button remains shaded until you pick (highlight)

one or more of the listed files. You can then pick this button to copy the
highlighted file or files to a different device (see the XCopy section on
page 11–9, for details).

•

Rename –– The

button remains shaded until you pick (highlight)

one or more of the listed files. You can then pick this button to change the
name of the highlighted file or files.

•

Delete –– The

button remains shaded until you pick (highlight)

one or more of the listed files. You can then pick this button to delete the
highlighted file or files (see the Delete section on page 11–9, for details).

•

Done –– When you pick the

button, the

File

panel disappears.

Here is a brief description of the buttons and data entry field appearing at the
right side of the

File

panel:

•

Format –– When you highlight any device (except FL: and V1:) in the
device list, and then pick the

button, the format “Yes or No”

decision panel appears on the screen for those devices that can be
formatted (see the Format Function section on page 11–11, for details).

•

Recycle –– When you highlight the

device, the

button

is active. This enables you to reclaim memory occupied by deleted files
(see the Recycle Function section on page 11–12, for details).
