Chapter

Chapter 7

Inspection Tools

7–61

•

Thresh/Filter –– The

button activates threshold and/or filter

functions that are appropriate for the selected image tool operation.

•

Done –– When you pick the

button, the system exits back to the

toolset edit panel.

*Area of Interest –– The portion of a source image that an image tool
processes is referred to as an area of interest (AOI), and it can be configured
(“picked and placed”) using the

and

buttons in the tool

edit panel.

The functions of the data fields and buttons in the tool edit panel are
described in the following discussions of the image tool operations and
supporting functions.

When the

Operation

field in the tool edit panel is picked, the


Operation

panel appears, as shown in Figure 7.51.

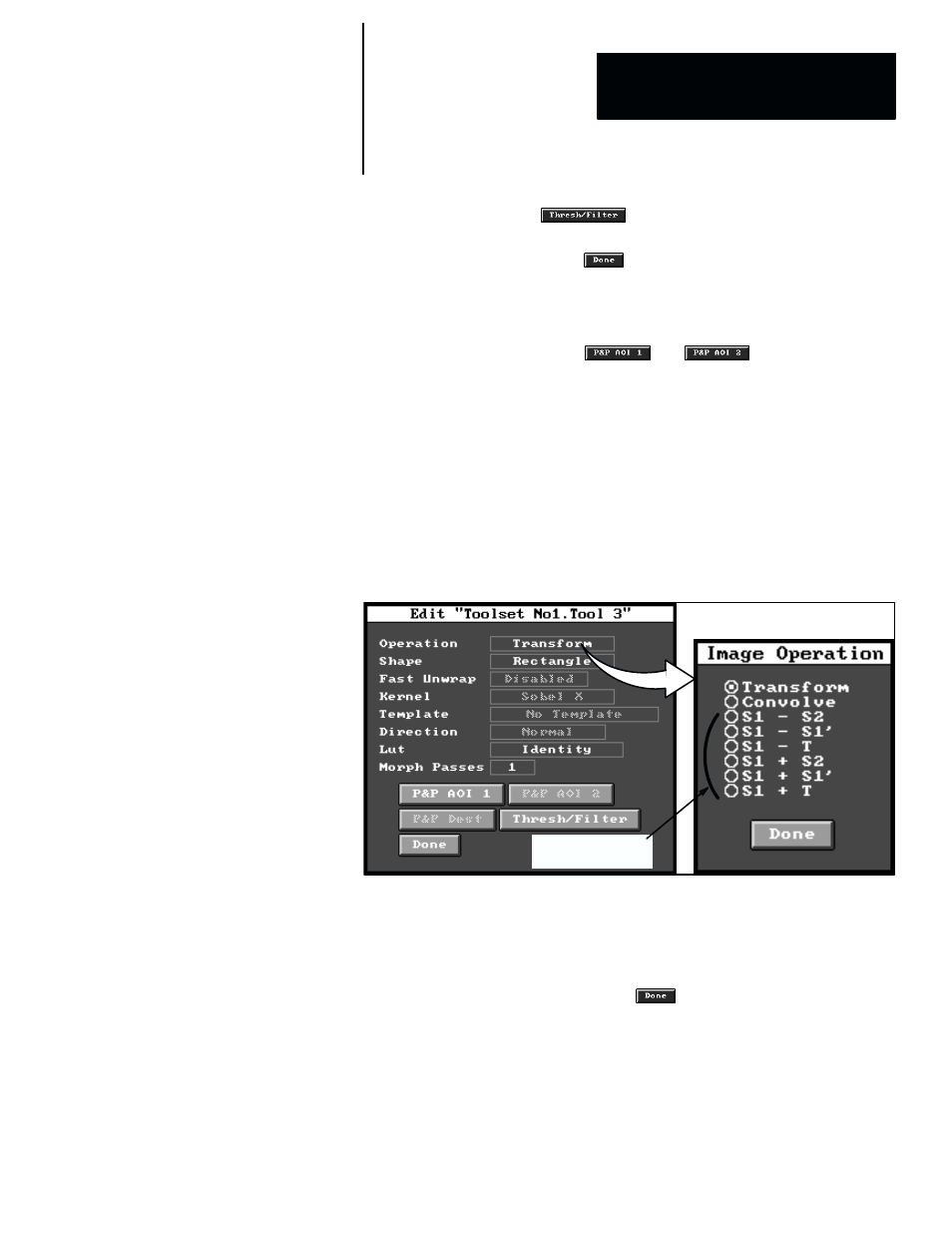

Figure 7.51 Image Operation Selection Panel

Image arithmetic

operations

ЗЗЗЗЗЗ

The

Image Operation

panel lists the three image tool operation types

referred to earlier. Note that the last six operations are identified as image
arithmetic operations.

You can select a specific image tool operation by picking the circle adjacent
to the operation name, then picking the

button. The tool edit panel

returns with the selected operation name appearing in the

Operation

field.

The following sections discuss the image tool operations in detail.

Image Tool Operations:
Selection
