Chapter 4
Inspection Configuration
4–42
Configuring Subimage
The Image Manager provides a “pick and place” function to set the position
and size of the subimage window. To configure a subimage, pick the
button, then position the window over the appropriate feature in the image
field and set window’s size, as illustrated by the example in Figure 4.33.

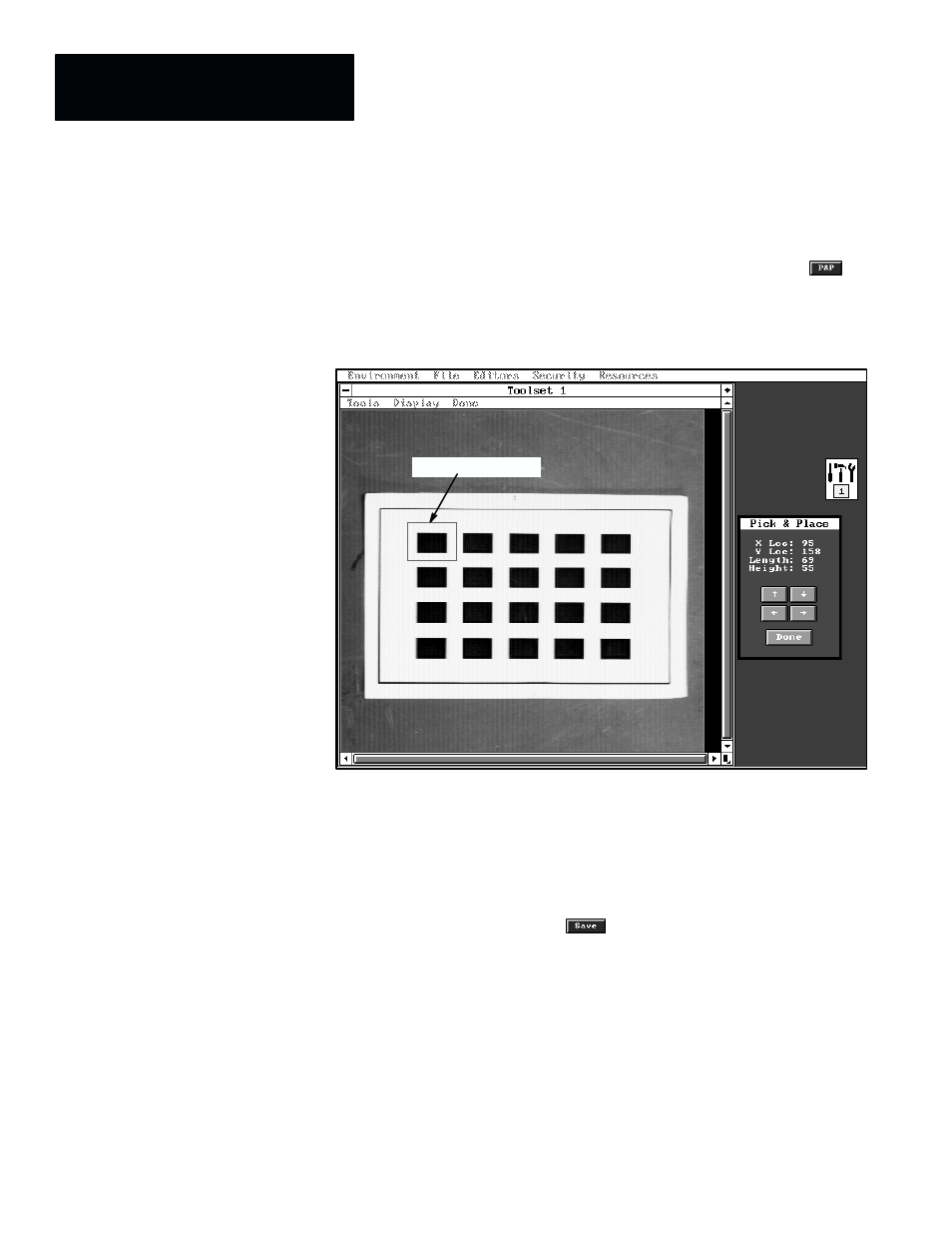

Figure 4.33 Example: Subimage Window Positioned Over Feature
Subimage window
Before saving the feature image, check the Default Device field. Initially,
the default device is “ MC: ,” which is the memory card. If you expect to save
all (or most) feature image files in this device, leave it as “ MC:. ” If, however,
you want to use another device, you can change the default device by picking
the
Default Device field and selecting another device from the Devices
selection panel.
To save a feature image, pick the button. When you do, the keyboard
panel appears with this instruction in the title bar:
Enter a file name. Default device is MC:.
To store an image file in the default device, enter a file name such as . . .
Feature1
