Chapter 7
Inspection Tools
7–104
This section discusses the configuration steps that are accessed from the
fields and buttons in the feature finder tool edit panel shown in Figure 7.86.
Initially, most of these fields and buttons are inactive (shaded). They become
active when the appropriate points are reached in the configuration process.

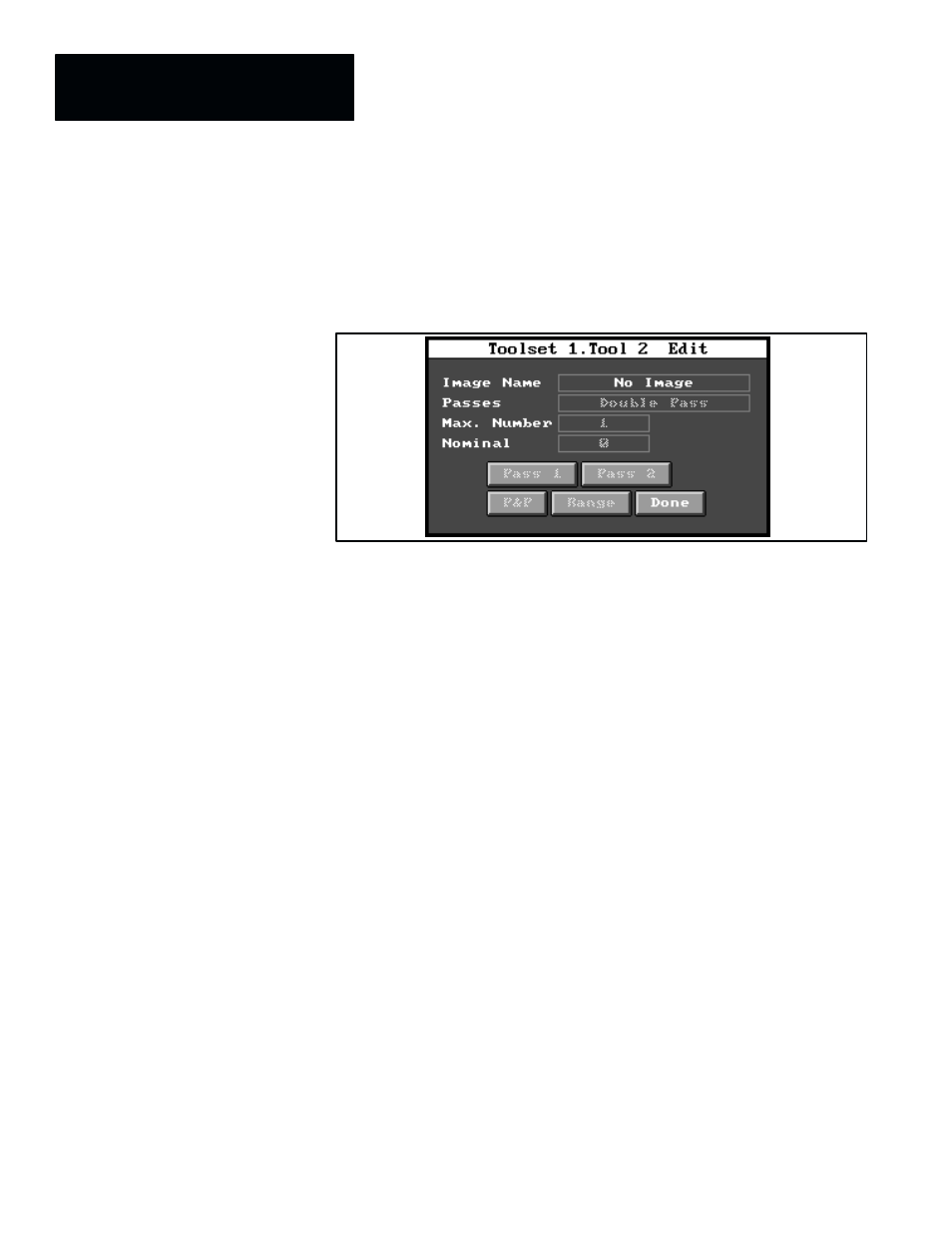

Figure 7.86 Feature Finder Tool Edit Panel
Image Name: Feature Image Configuration
The feature image configuration procedure for the feature finder tool is
identical to the same procedure for the reference window tool. Refer to the
Feature Image Configuration section of Chapter 6, page 6–30, for details.
P&P: Search Window Configuration
The search window configuration procedure for the feature finder tool is
identical to the same procedure for the reference window tool. Refer to the
Search Window Configuration section of Chapter 6, page 6–33, for details.
Passes: First and Second Pass Configuration
Refer to the Single Pass vs Double Pass section of Chapter 6, page 6–34, for
a discussion of the application considerations involved in choosing
Single
Pass or Double Pass .
First Pass Configuration
The first pass configuration procedure for the feature finder tool is identical
to the same procedure for the reference window tool. Refer to the First Pass
Configuration section of Chapter 6, page 6–34, for details.
Feature Finder Tool
Configuration
