Chapter 7
Inspection Tools
7–158
Figure 7.129 illustrates a profile tool using the distance operation in the X
direction.

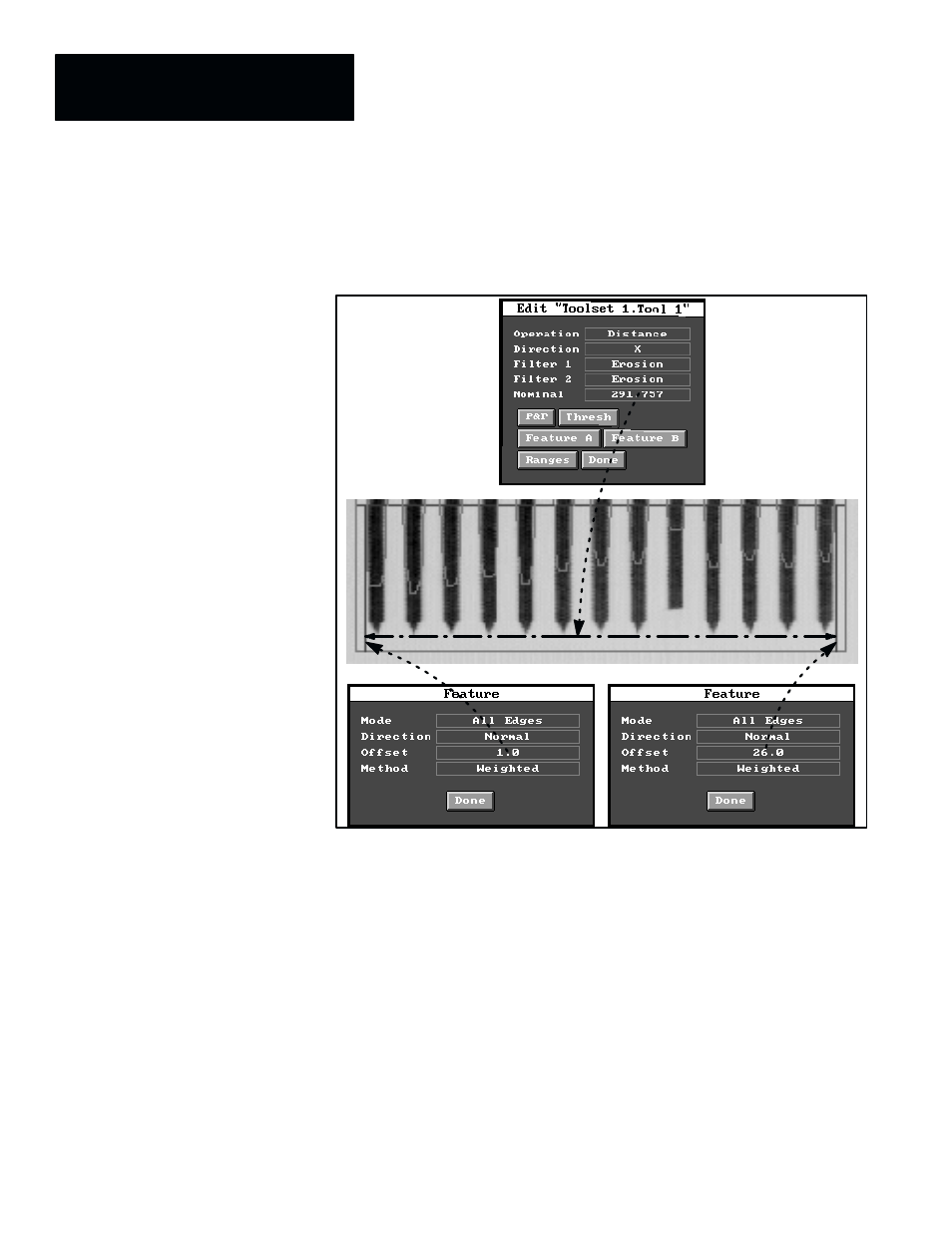

Figure 7.129 Example: Reporting the Distance Between Two Edges Along X Axis
In this example, the specified features on the profile display correspond to
the left edge of the leftmost connector pin and the right edge of the rightmost
connector pin, both of which are identified as “offset 1.0” and “offset 26.0”
in their respective
Feature selection panels. In the tool edit panel, the
distance between these features is shown to be 291.757 pixels. (Note: The
Feature selection panel is described in detail in the Feature Selection
Functions section on page 7–164.)
