Chapter 10
Environment Menu Selections
10–20
Tool Results Detail Panel
When you “pick” anywhere along a tool results line in the Results panel
under the Result , Faults , Status , or other column headings, a Results
detail panel appears. Figure 10.21 provides an example of four different
detail panels.

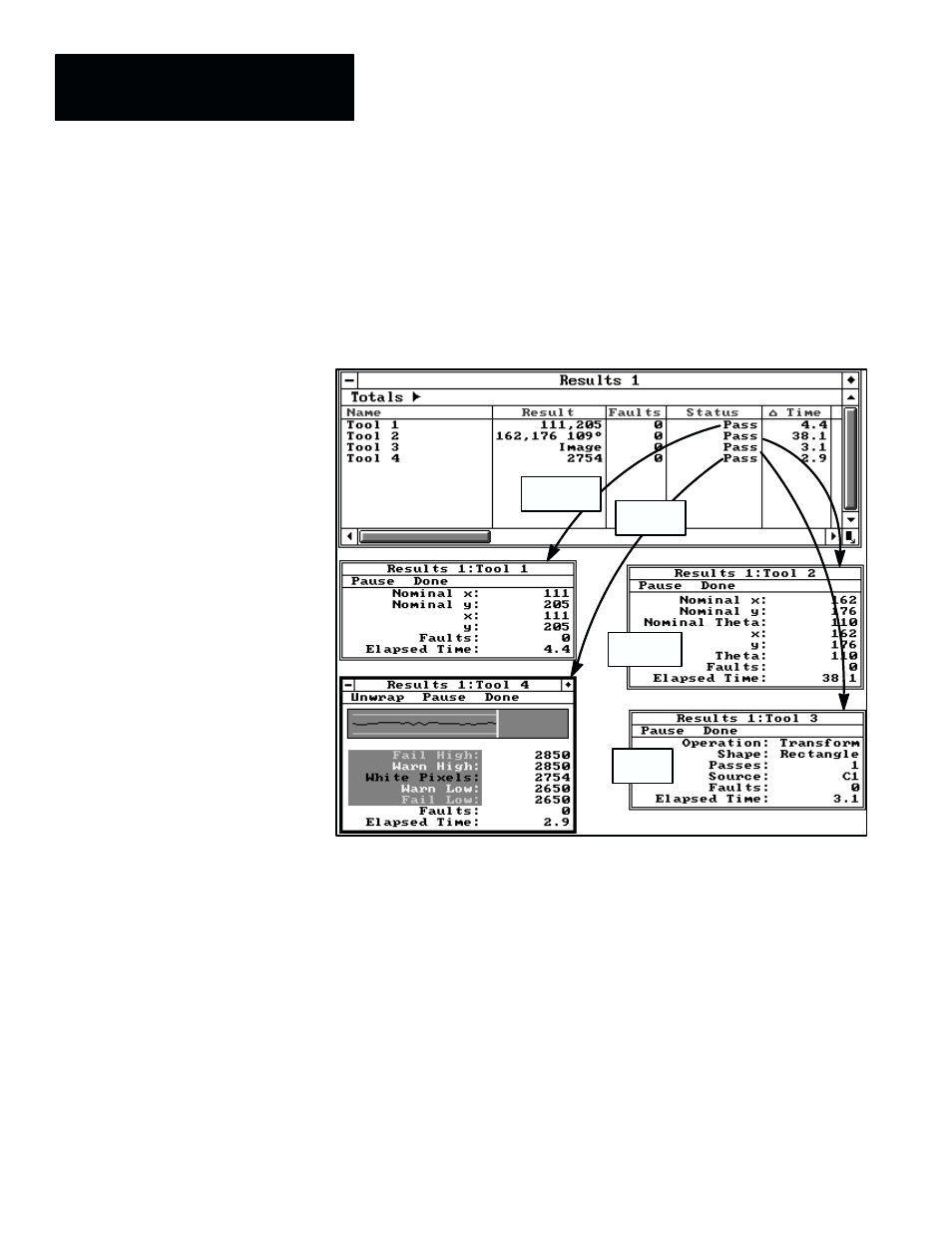

Figure 10.21 Example: Selecting Tool Results Detail Panels
Reference
line
Window
or gage
Rotation
finder
tool
Note in Figure 10.21 that the example detail panels for Tool 1 , Tool 2 , and
Tool 3 contain only text data, while the panel for Tool 4 contains both text
and graphic data. As the figure shows, the specific text data that appears in
any detail panel varies with the tool type and tool operation, and with the
inspection results.
You can expand a detail panel containing graphic data to a larger size by
picking the diamond (
z) symbol in the upper–right corner of the panel.
When you pick this symbol, the detail panel expands to occupy the entire
screen, with the graphic display using most of the screen space.
By picking the diamond symbol again, you can return the detail panel to the
smaller size.
