5 Chapter Chapter 7
Inspection Tools
7–21
All Edges
The all edges feature mode enables you to specify an edge from among the
following points along the length of the gage:
•
All edges detected as a result of the threshold/filter settings.
•
The head of the gage when using the head–to–tail search direction, or the
tail of the gage when using the tail–to–head search direction.
•
The midpoints between adjacent pairs of edges.
•
The center point between the first edge and the last edge.
Figure 7.21 uses a linear gage and the binary gaging mode to illustrate the
potential edges with the all edges feature mode enabled.

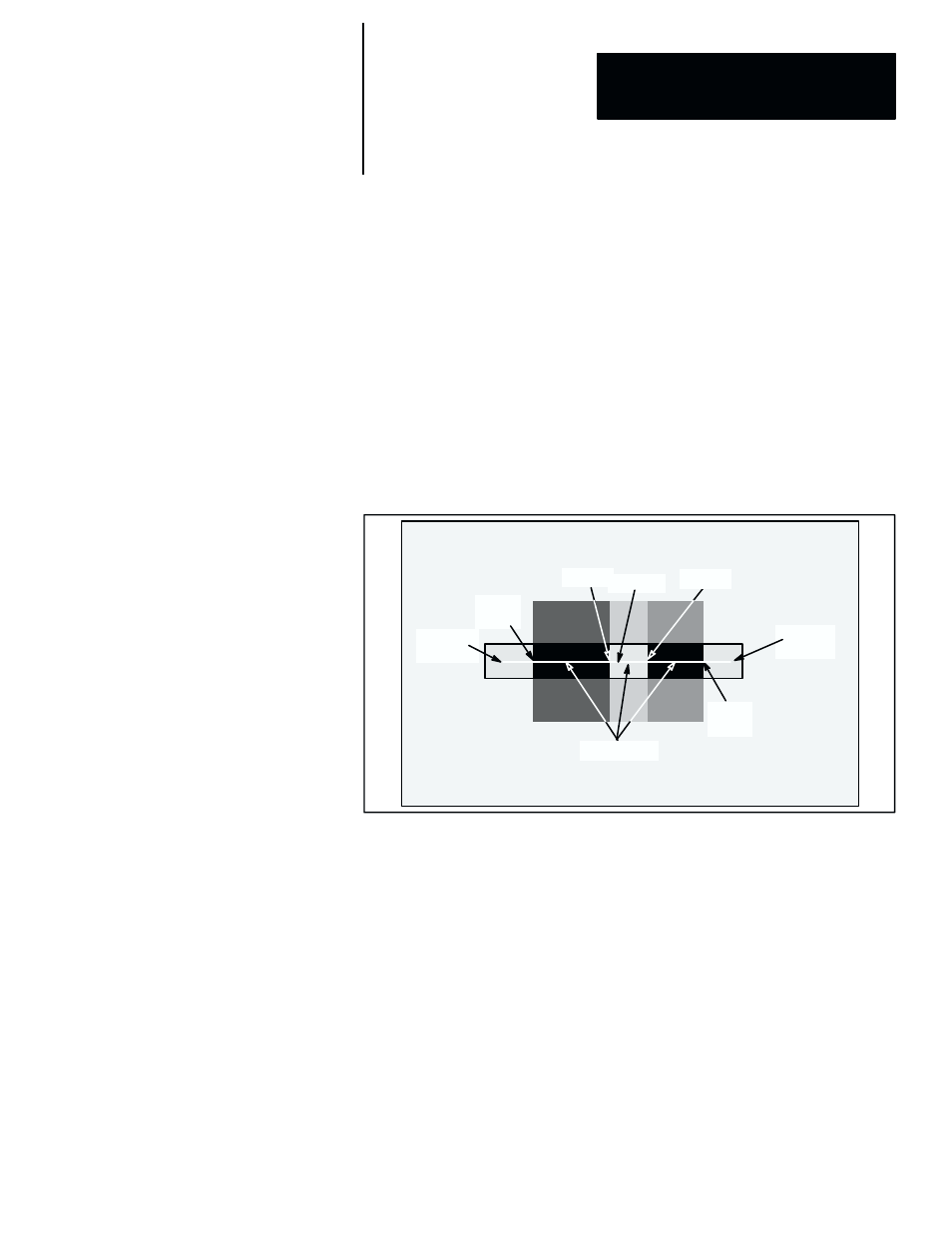

Figure 7.21 Example: All Edges Along a Line Gage
Center
“Head”
of gage
Edge
Midpoints
First
edge
Last
edge
“Tail”
of gage
Edge
Max Object
The maximum object feature mode enables you to specify an edge from
among the following points on the gage:
•
The first edge (offset 0.0 ) of the maximum–size object.
•
The midpoint ( Center ) between the first edge and the last edge of the
maximum–size object.
