Rockwell Automation 5370-CVIM2 Module - Manual (Page 273)

5 Chapter Chapter 7
Inspection Tools
7–35
Target Panel
The Target panel enables you to specify the measurement functions that
determine which contours the window will identify and count as “objects.”
When you pick the button in the window tool edit panel, the Target
panel appears on the screen, as shown in Figure 7.32.

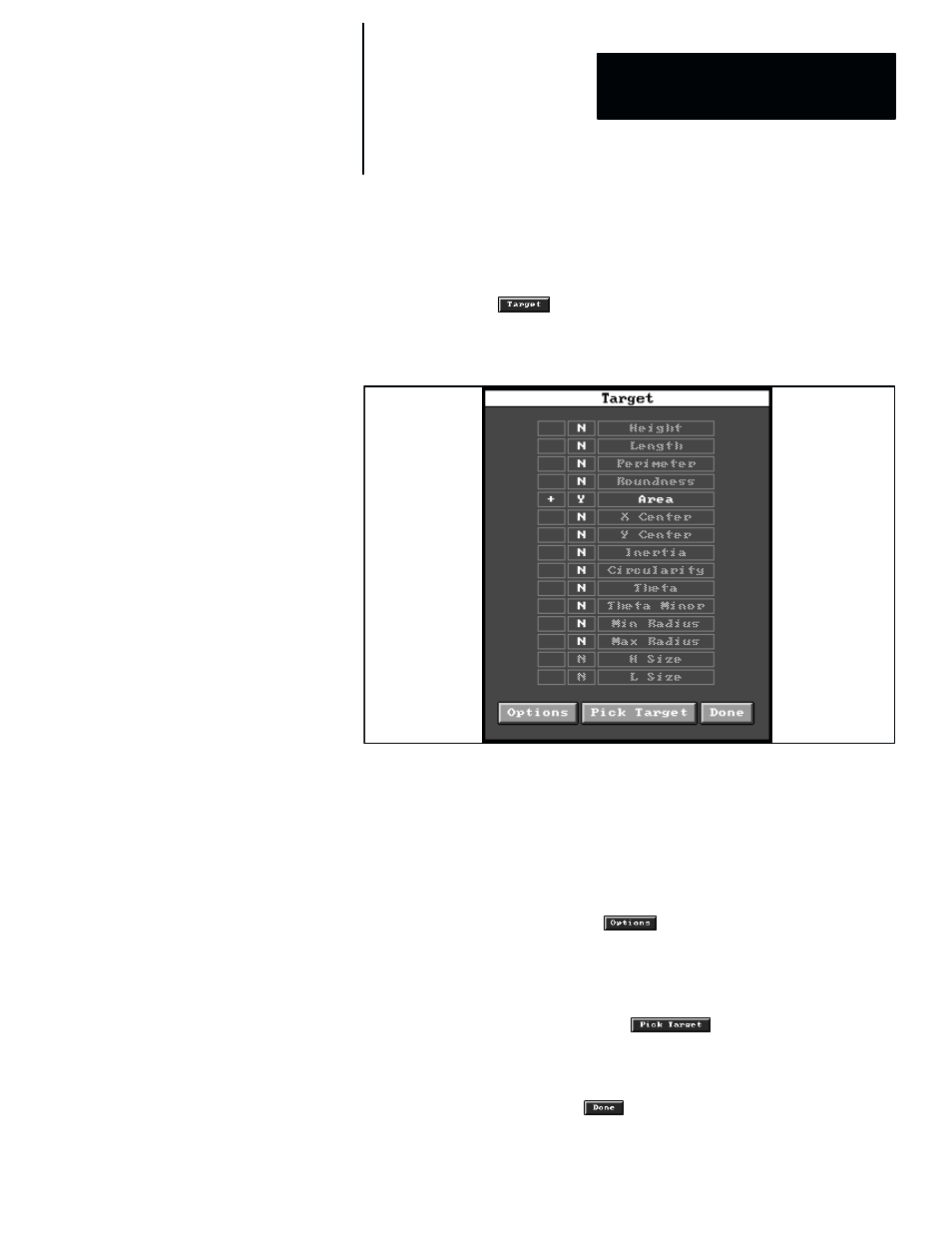

Figure 7.32 Target Panel
Here is a brief description of the fields and buttons in the Target panel.
•
Contour measurement fields –– These fields enables you to “activate”
the specific measurement functions that the contour window uses for a
particular inspection application. The measurement functions evaluate
each contour in the window, and it is their collective criteria that
differentiates contours that qualify as “objects” from those that do not.
The “
Area ” measurement function is activated by default.
•
Options –– When you pick the button, the Contour Options
selection panel appears on the screen. This panel enables you to select the
window border color, include or exclude “holes” in contours, the
maximum number of measurement results to be stored, and the “nearest
neighbor” function.
•
Pick Target –– When you pick the button, the Pick Target
display panel appears on the screen. This panel displays all of the
measurement functions. If you pick any contour, measurement values for
that contour will appear alongside each listed measurement function.
•
Done –– When you pick the button, the system exits back to the
tool edit panel.
