The Image Manager panel enables you to archive full images or parts of
images (called subimages). Full images are typically archived for
troubleshooting, documentation of the original setup environment, and
retention of rejected parts, while subimages are archived during
configuration for use as features and templates with tools such as reference
window, feature finder, and image tools.
Both types of images are archived as files on devices (memory) such as EE:
and MC: .
During configuration, when you pick the Image Name field in the reference
window or feature finder tool edit panel, or the Template field in the image
tool edit panel, the Image Manager panel appears as shown in Figure 4.32
(A). During online operations, when you pick Save Image in the Display
menus, the Image Manager panel appears as shown in (B).

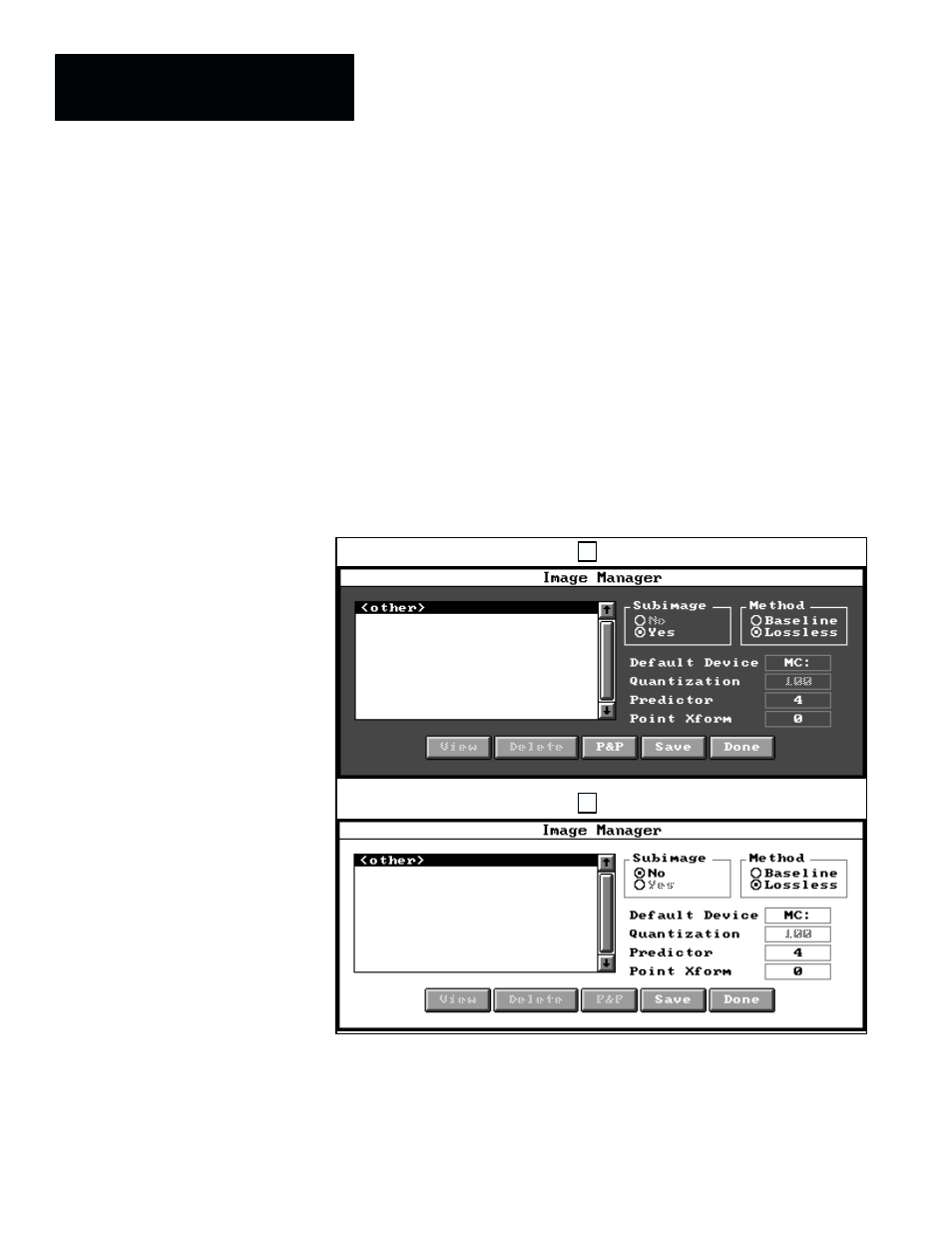

Figure 4.32 Image Manager Panel: Two Forms
A
B
The parameter selections in the Image Manager panel provide a number of
choices for compressing and storing images and for converting images to
forms that are compatible with other image processing systems.
Image Manager Panel
