5 Chapter Chapter 5
Pick and Place Function
5–17
When you select the arc ring shape for a window tool and then pick the
button in the window edit panel, the arc ring window color
changes from red to green, and the Pick & Place panel appears, as shown in
Figure 5.16.

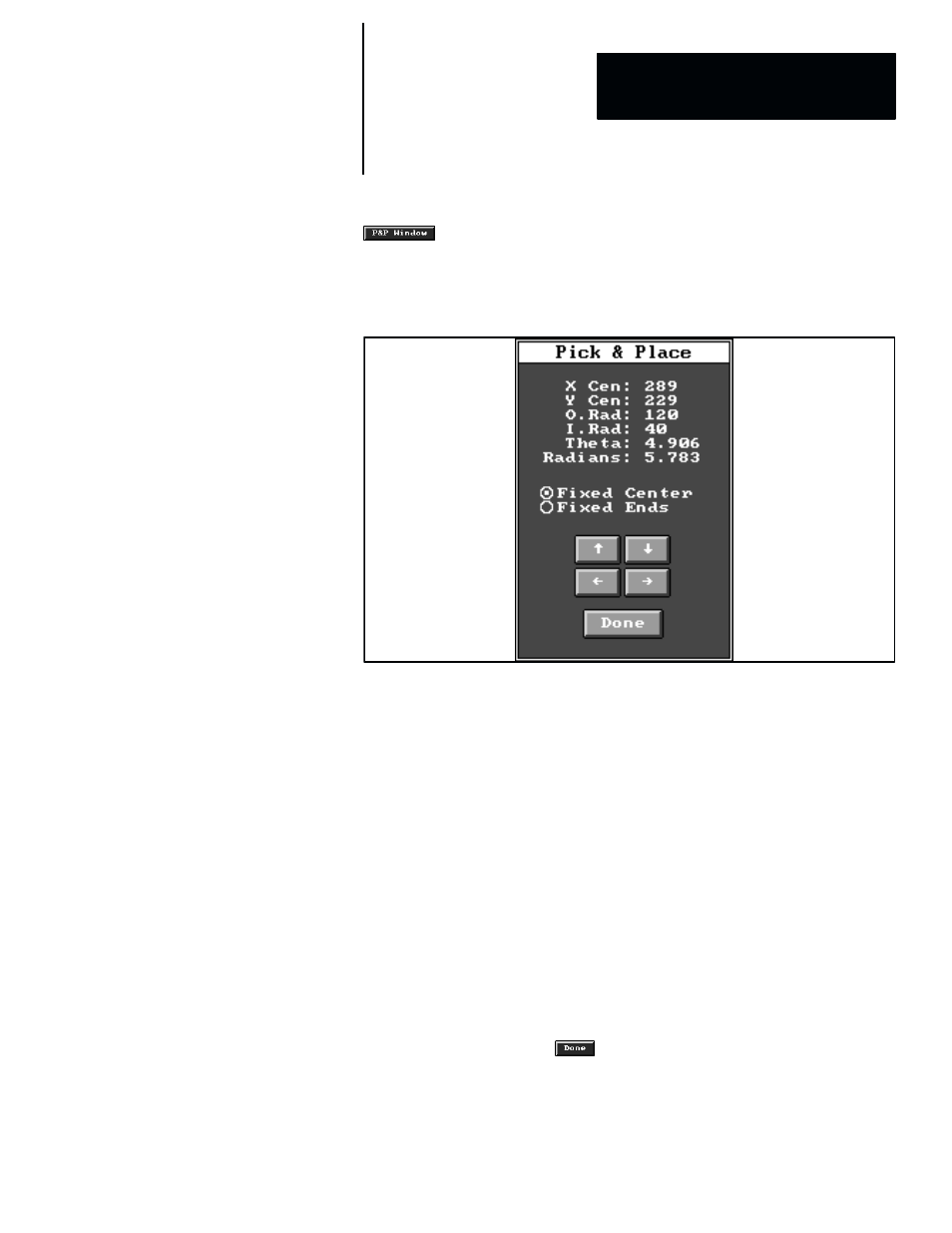

Figure 5.16 Example: Pick and Place Panel for Arc Ring Window
The arc ring window Pick & Place panel contains the following data display
fields and buttons:
•
X Cen; Y Cen –– These two fields display, respectively, the current X
and Y coordinates of the center of the arc ring window.
•
O Rad –– This field displays the radius of the outer ring, in pixels.
•
I Rad –– This field displays the radius of the inner ring, in pixels.
•
Theta –– This field displays the current location, in radians, of the “head”
of the arc ring, with respect to the X–axis 0
° point. The radian value
increases clockwise from that point.
•
Radians –– This field displays the current arc ring size in radians.
•
Arrow buttons,
↑, ↓, ←, and → –– When you pick an arrow button, by
default the entire arc ring window moves one pixel in the direction of the
corresponding arrow. If, however, you have just picked and placed one
side of the inner or outer ring, the arrow buttons will affect that part of the
window only.
•
Done –– When you have set the window position and size as required for
the application, pick the
button to exit the pick and place function
and return to the tool edit panel.
Arc Ring Windows
