5 Chapter Chapter 7
Inspection Tools
7–75

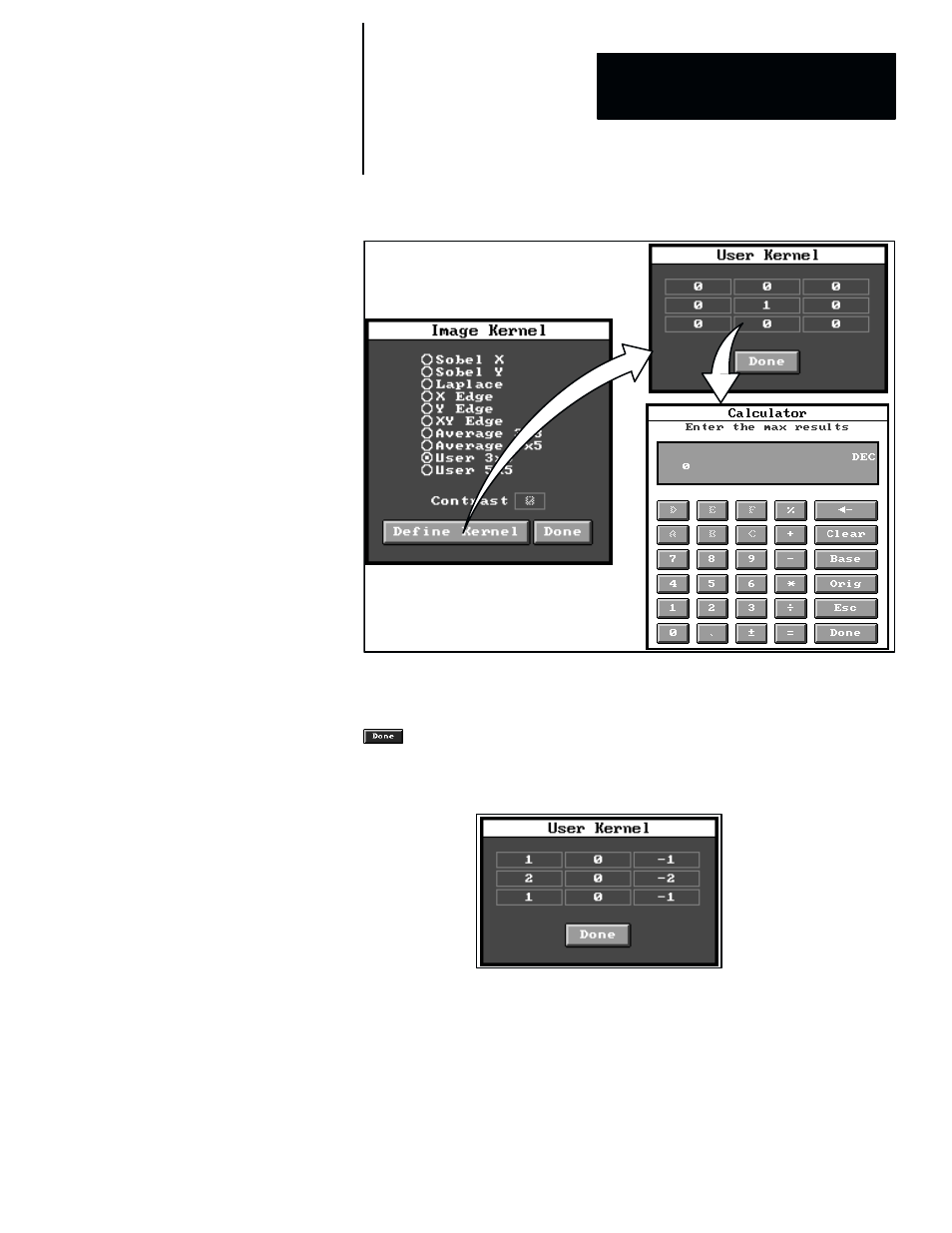

Figure 7.63 Selecting Coefficient for User 3x3 Kernel
ЗЗЗ
ЗЗЗ
ЗЗЗ
ЗЗЗ
ЙЙЙЙЙЙЙЙЙ
ЙЙЙЙЙЙЙЙЙ
ЙЙЙЙЙЙЙЙЙ
ЙЙЙЙЙЙЙЙЙ
ЙЙЙЙЙЙЙЙЙ
ЙЙЙЙЙЙЙЙЙ
ЙЙЙЙЙЙЙЙЙ
ЙЙЙЙЙЙЙЙЙ
ЙЙЙЙЙЙЙЙЙ
As Figure 7.63 shows, when you pick any of the coefficient fields in the
User Kernel setup panel, the calculator pad appears. To change a coefficient
value, enter the new value in the calculator (range: –128 to 127) and pick the
button. Repeat the process for all other coefficients that require new
values.
Example: If you were to enter the coefficient values shown below . . .
. . . the kernel would operate exactly as the Sobel X kernel described earlier.
Kernel Contrast
The Image Kernel selection panel shown in Figure 7.63 contains a field
labeled Contrast . The state of this field (active or inactive) depends on
which kernel is selected. Thus, the Contrast field is active for all kernel
selections; however, when User 3x3 or User 5x5 is selected, the state of the
