Icm features, Icm functional description, Er to – Altera IP Compiler for PCI Express User Manual

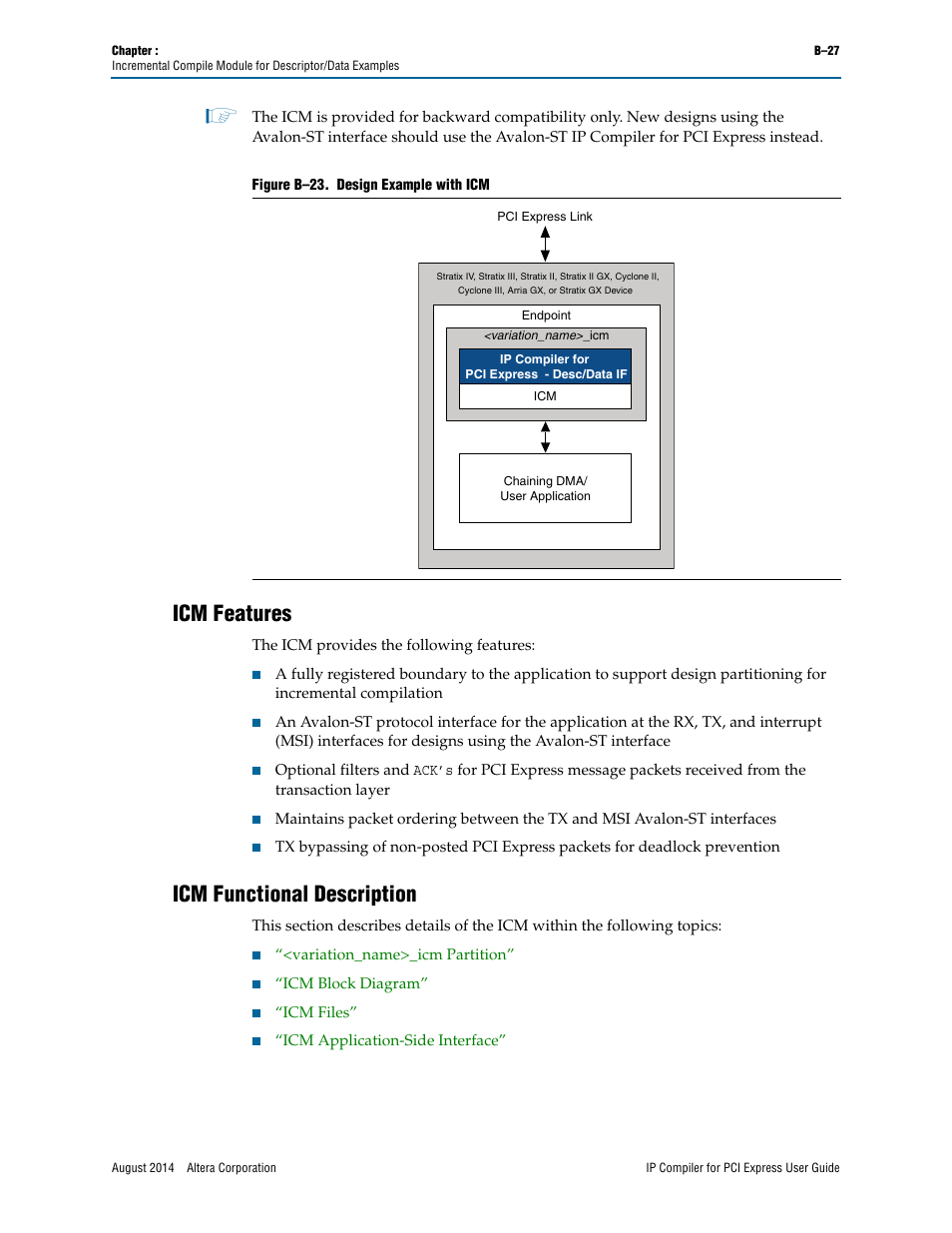

Page 345: Figure b–23
