Note:
Transformation resources always display their internal names when used to support channels or control
modes. To aid resource mapping in the main Station Builder display, enable (check) the Show internal
names control.
About Creating Multibox Configurations
Once you have used the Controller Management Tool (CMT) application to register and configure the multibox
system and the Hwi Editor application to create .hwi files for each box, you can use the Station Builder
application to create the configurations required for your test.
Multibox configurations are created in the same manner as single-box systems with the following exceptions:
• The resources shown in the Station Builder application are grouped by the box where they are installed.
• All the hardware resources used in a control channel must reside in the same box.
Important:
Control channels that use hardware resources from one box cannot include hardware resources
from another box.

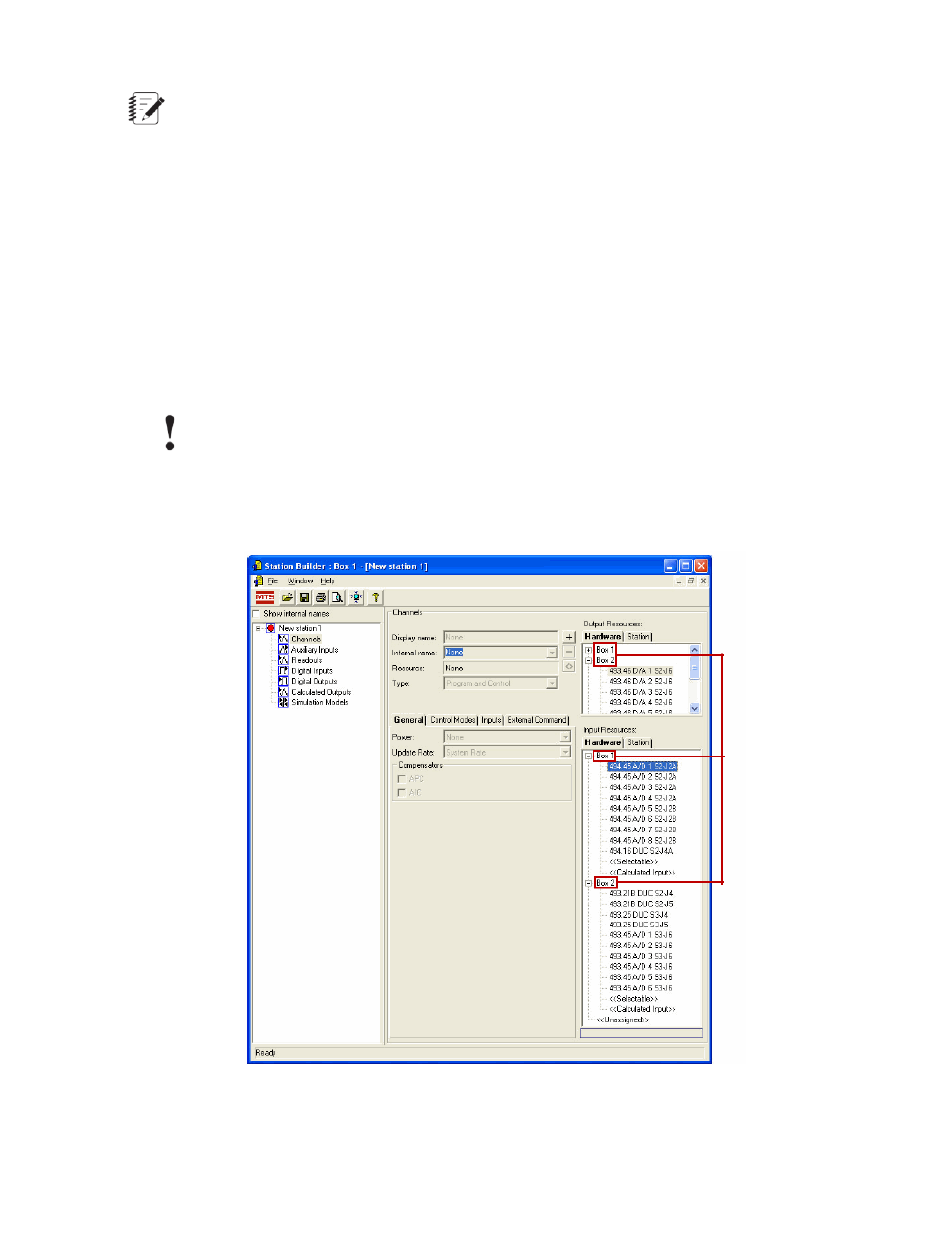

In the graphic below, resources are grouped for each box and displayed in a tree view
