Description Item
Selects or clears all meters for setup. Use this control and the Meter
Setup control to make global changes to all meters. Check
Displays the Meter Setup window for the selected meter. Setup
Displays the meters associated with the selected signal list. You
create and edit signal lists in the Signal List page (Tools > Channel
Options > Signal Lists). Signal list
Displays the Meter Setup window. The button’s legend identifies the
signal being monitored. Meter Setup button

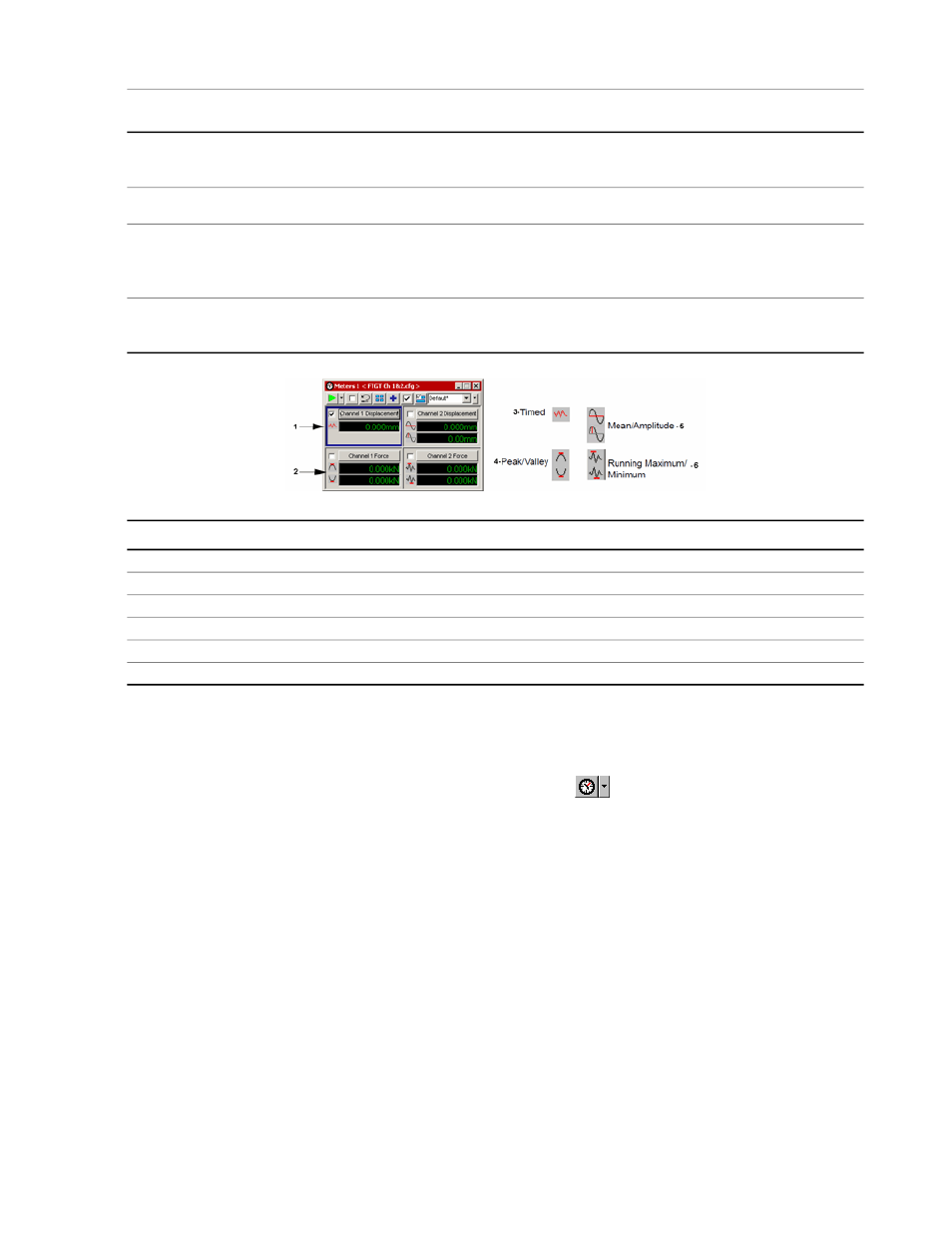

Description Callout
Selected Meter 1
Meter Type 2
Timed meter 3
Peak/Valley meter 4
Mean/Amplitude meter 5
Running Maximum/Minimum meter 6
How to Add an Individual Meter
1.
On the Station Manager window’s toolbar, click the meters icon or select Create Meters on the Meters
icon pull-down menu.
2. In the Meters window Signal Lists box, select Default*.
The Default setting allows you to select and build your own signal list from scratch by adding meters and
selecting signals as desired.
3. Click the Add Meter button.
When a meter is added to the active Meters window it is a copy of the currently active meter, with identical
setup parameters.
4. You can create up to 16 meters by successively clicking the Add Meter button.
