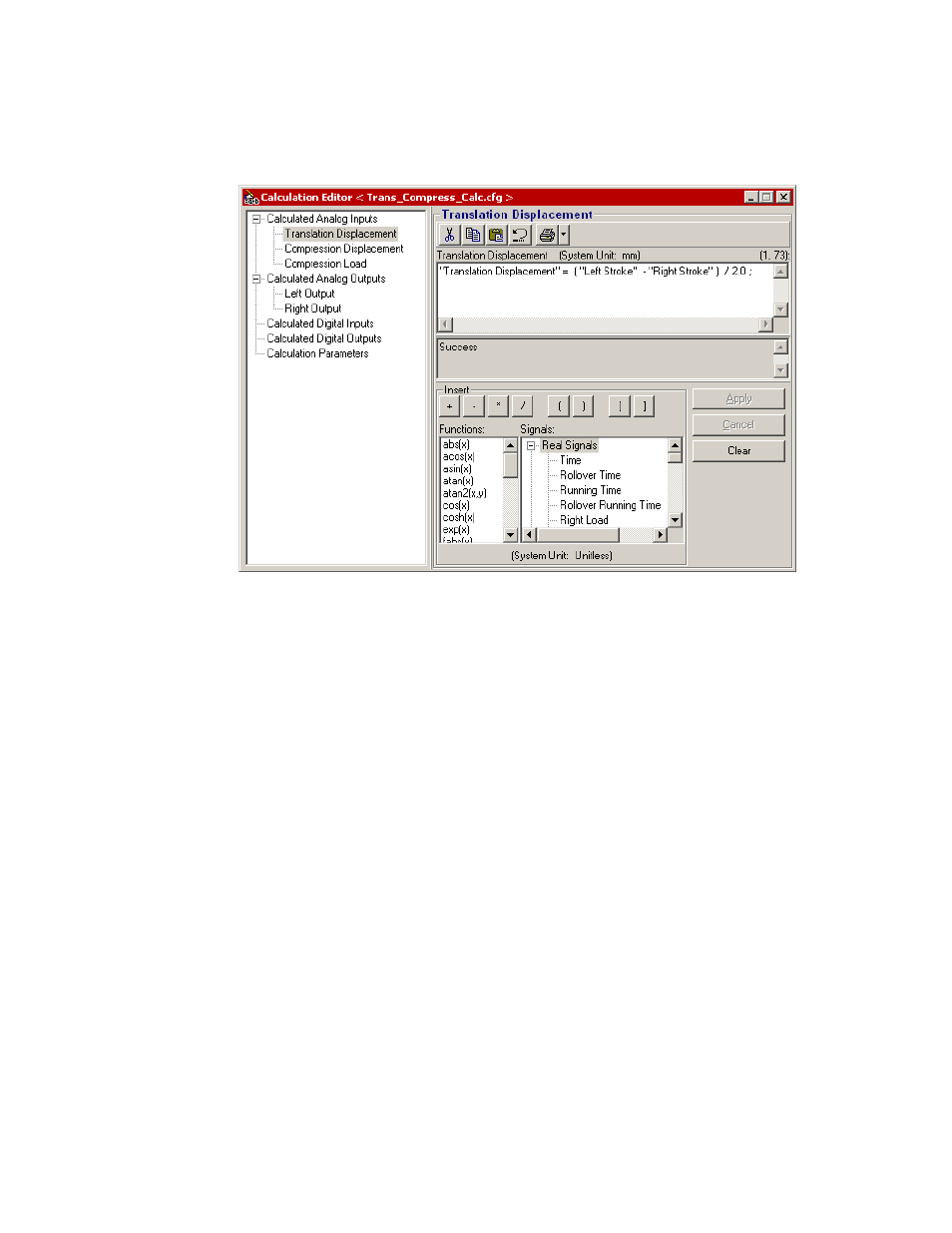

d) Select the first analog input (Translation Displacement), then enter the required equation in expression
window:
“Translation Displacement” = (“Left Stroke” - “Right Stroke”)/2.0
e) Select the second analog input (Compression Displacement), then enter the required equation in
expression window:
“Compression Displacement” = (“Left Stroke” + “Right Stroke”)/2.0
f) Select the third analog input (Compression Load), then enter the required equation in expression
window:
“Compression Load” = (“Left Load” + “Right Load”)/2.0
7. In Station Manager, define the required calculation for each valve’s calculated output signal.
a) Select Calculated Analog Outputs on the Calculation Editor window navigation pane. The expanded
list displays all outputs for which calculations must be provided and represents the outputs that may
be used as commands for servovalves or other user-defined purposes.
MTS Series 793 Control Software 369
Calculated Signals
