16 Auxiliary means
16.1 Auxiliary means integrated in the DSD
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

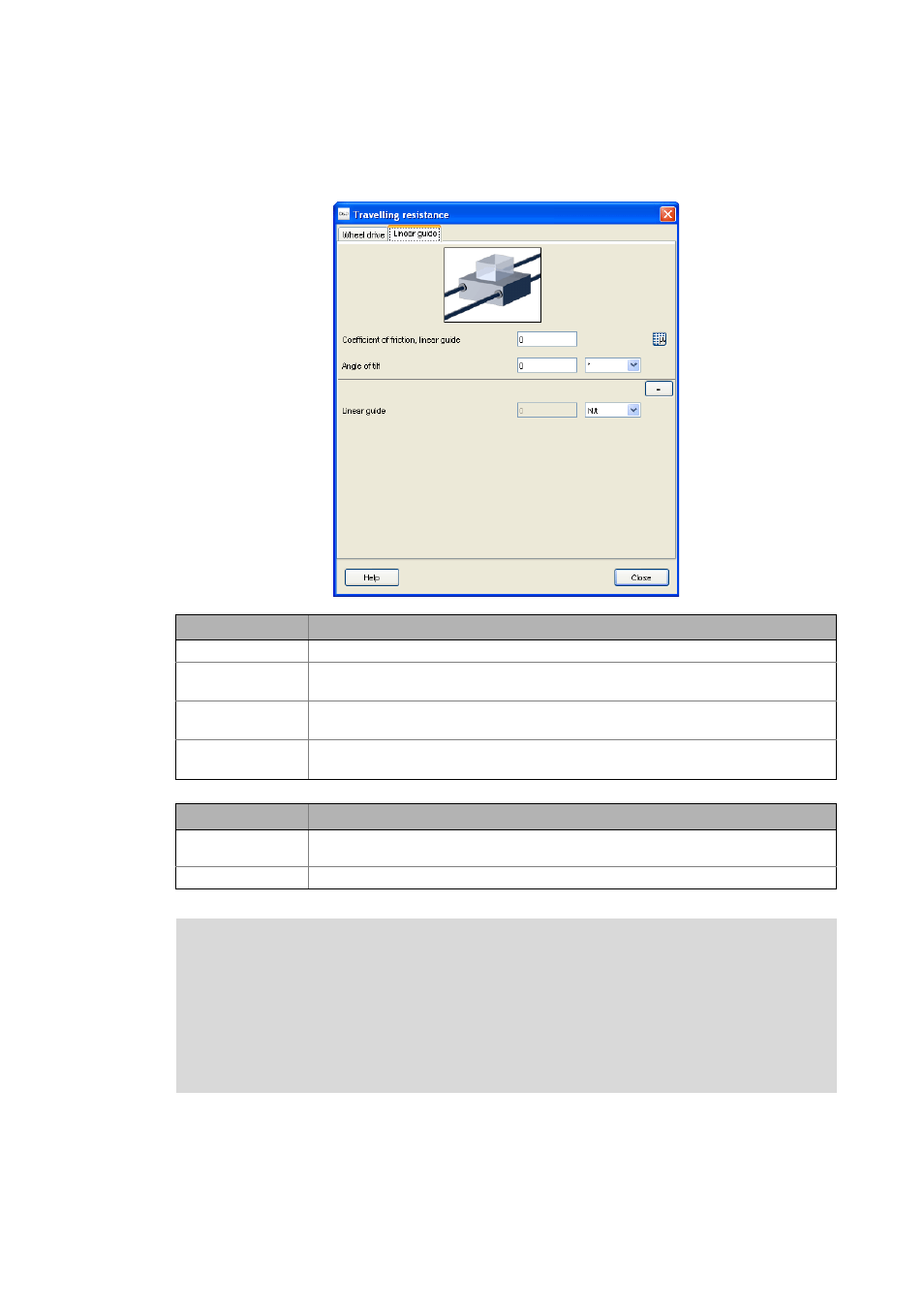

the Linear guide tab
The calculator determines the travelling resistance for applications with linear guides.
Button Function
= Calculate result.
Close Close dialog box.
• Only available if the calculator is called via the menu bar.
Accept Accept calculated value for the parameter and close dialog box.
• Only available if the calculator is called via the input area.
Cancel Discard calculated value and close dialog box.
• Only available if the calculator is called via the input area.
Input field Meaning
Coefficient of friction
of the guide
Coefficient of friction of the guide
Angle of tilt Angle to the horizontal β

Note!
• The travelling resistance only contains the parts of the friction force, which depend on
the mass of the application. Constant forces that are independent of the load in the
motion design must be entered as counterforces!
• The DSD does not transfer values from the input area to the auxiliary calculator.
• Ensure that the angle β in the auxiliary calculator corresponds to the angle entered
in DSD to avoid incorrect calculations.
