7 Applications
7.21 Dimension the multi-axis system
186
Lenze · Drive Solution Designer · Manual · DMS 4.2 EN · 12/2013 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

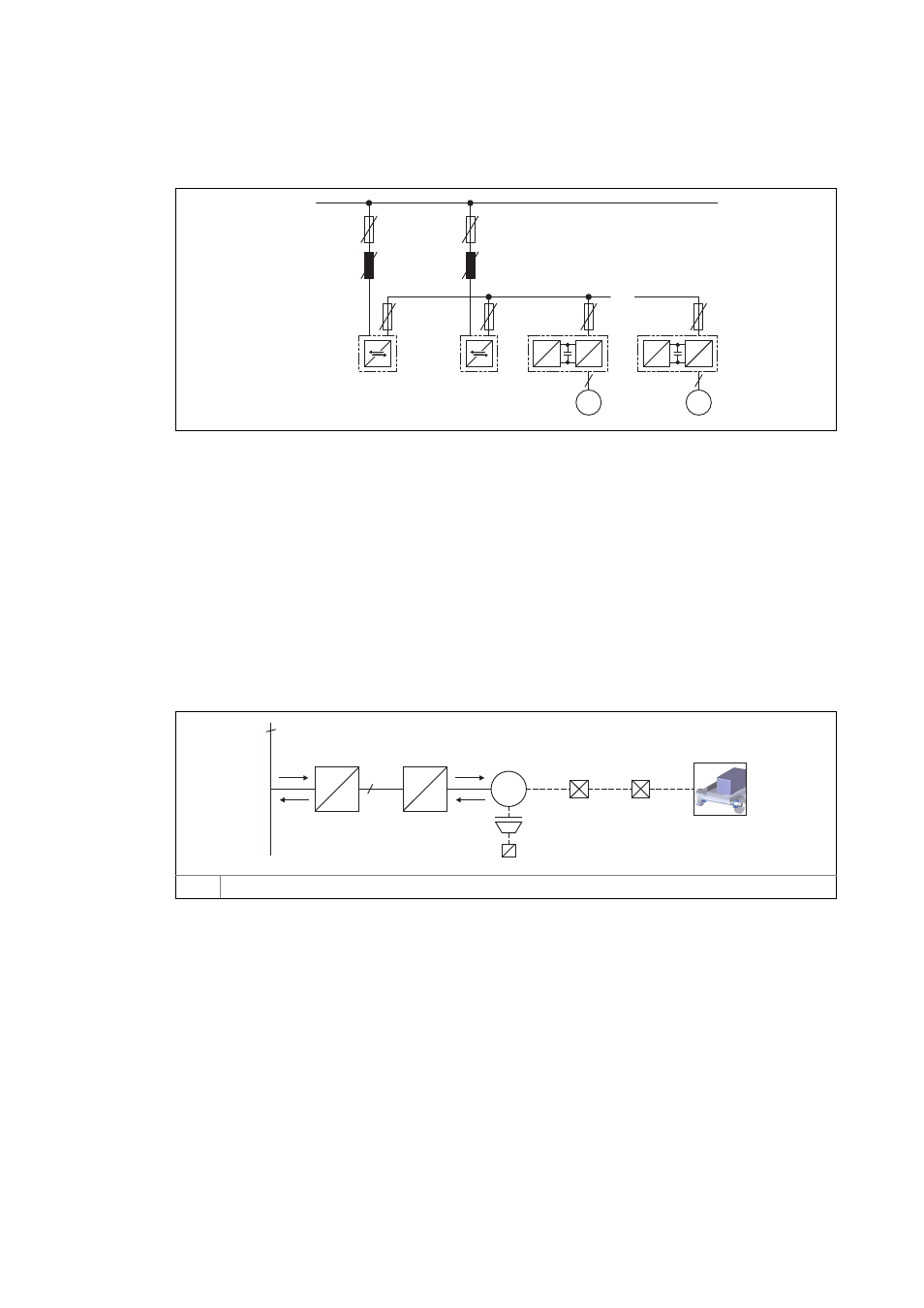

Parallel connection of several regenerative power supply modules
[7-183] Parallel connection of several regenerative power supply modules
• When the derating factors are complied with, the operation of several regenerative power sup-
ply modules in the DC-bus connection is permitted.
• The arrangement in the DSD can only be dimensioned with regenerative power supply modules
9400.
• The regenerative power supply modules can be each dimensioned separately in the DSD.
• The selection table in the DSD provides regenerative power supply modules 9400 connected
in parallel (2 × E94... or 3 × E94...).
Single-axis application
For applications with a high regenerative power (e. g. unwinders and hoists) it may also be reason-
able to use a regenerative power supply module for a drive axis.
[7-184] One drive axis with supply/feedback
3 AC
DC bus
2
3
3
2
3
3
=
~
=
~
M
3~
2
M
3~
...
...
2
3 3
=
~ =
~ =
~ =
~
 Regenerative power supply module
M
3
P
mot
P
gen
P
mot
P
gen
i
1
i
1,1
-
3 ~
DC
2
-
3 ~
