8 Motion design
8.2 MotionDesigner
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

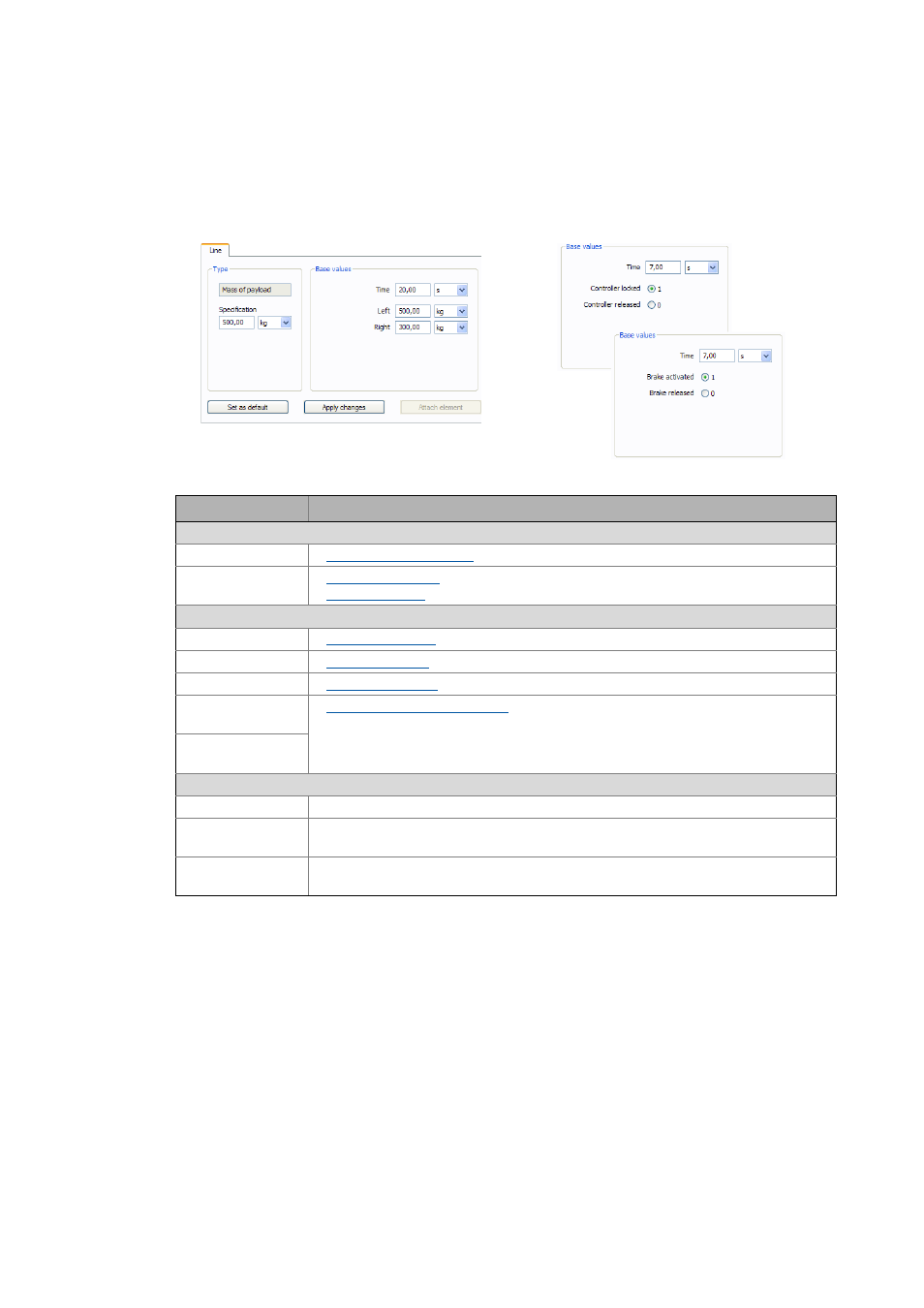

8.2.7.3 "Line" tab": Parameter profile
In this tab, you create or edit the line elements of a parameter profile. Select an already created el-
ement to edit it. Values are always entered positively.
Legend Description
Type
 – Type ( 257)
Specification  Specification – Type ( 257)
 Object properties ( 231)
Base values
Time  Time – basic values ( 258)
Left  Left – basic values ( 259)
Right  Right – basic values ( 260)
Controller locked
Controller released
 Controller / brake – basic values ( 260)
Brake activated
Brake released
Buttons
Set as default Accept values in the areas Type and Basic values as specification.
Apply changes Change the highlighted element in the Graphic area according to the entered values.
The button is only active if an element is selected in the Graphic area.
Attach element Attach an element with the specified values to the motion profile in the right Graphic area.
• The button is only active if no element is selected in the Graphic area.
