15.1 Drawing

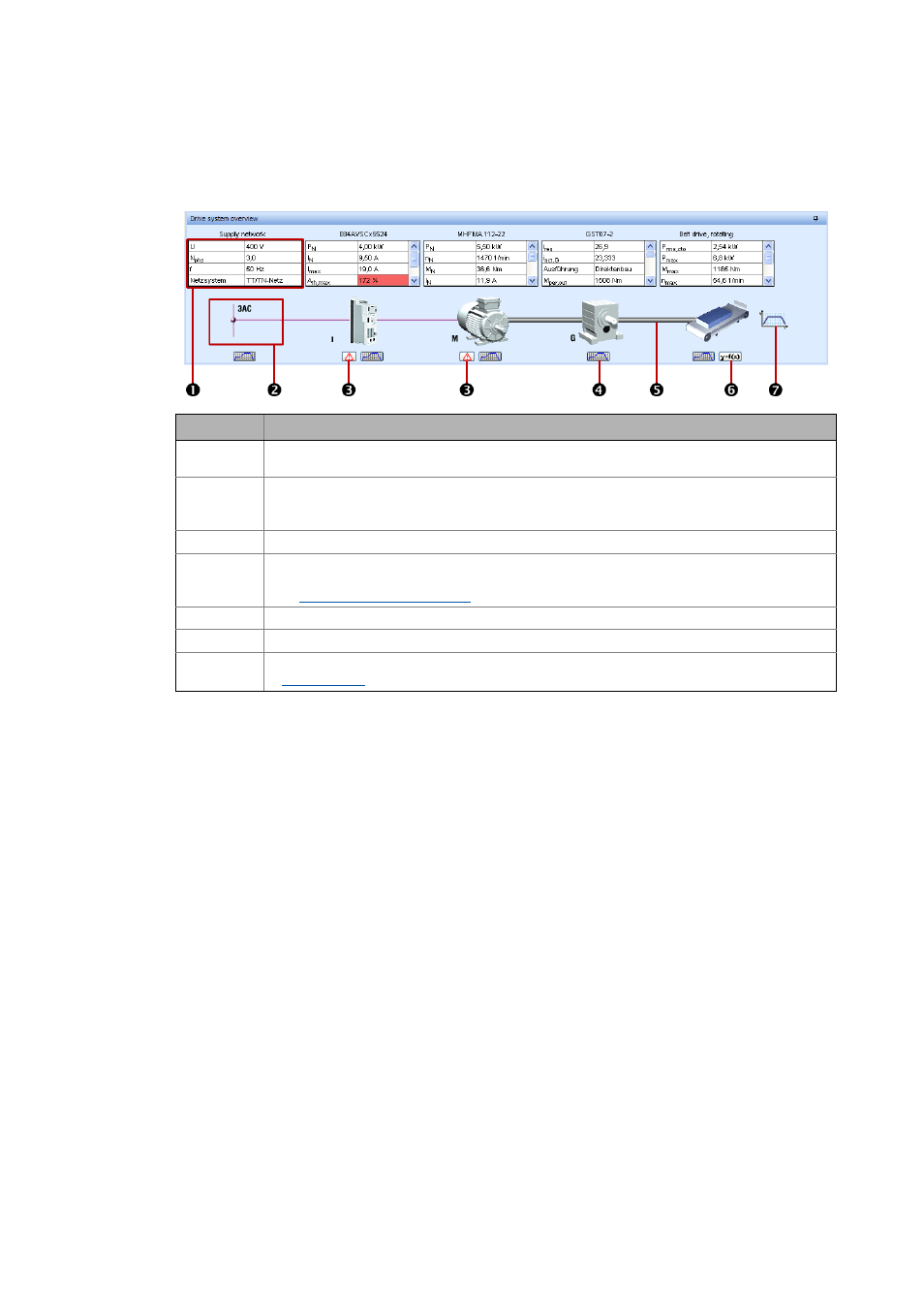

The drawing visualises the current state of the drive dimensioning.
Legend Description
 Short overview of the drive system with the data entered, rated data of the selected drive compo-
nents and their utilisation degrees, and display of notes and tips.
 Illustration of the component (at the same time button).
• By clicking on the illustration you directly reach the selection table for the corresponding compo-
nent where a variety of data is provided.
 Button for calling messages for drive dimensioning of the corresponding component.
 Button for calling the diagrams for the corresponding component.
• Graphical representation of the speed, torque, and utilisation behaviour.
 Diagrams for the components ( 387)
 Representation of the drive train used.
 Button for calling the description of the application in the online help.
 Button for calling the motion profile.
 Motion design ( 224)
