3
User interface
3.1
Control and function elements
34
Lenze · Drive Solution Designer · Manual · DMS 4.2 EN · 12/2013 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

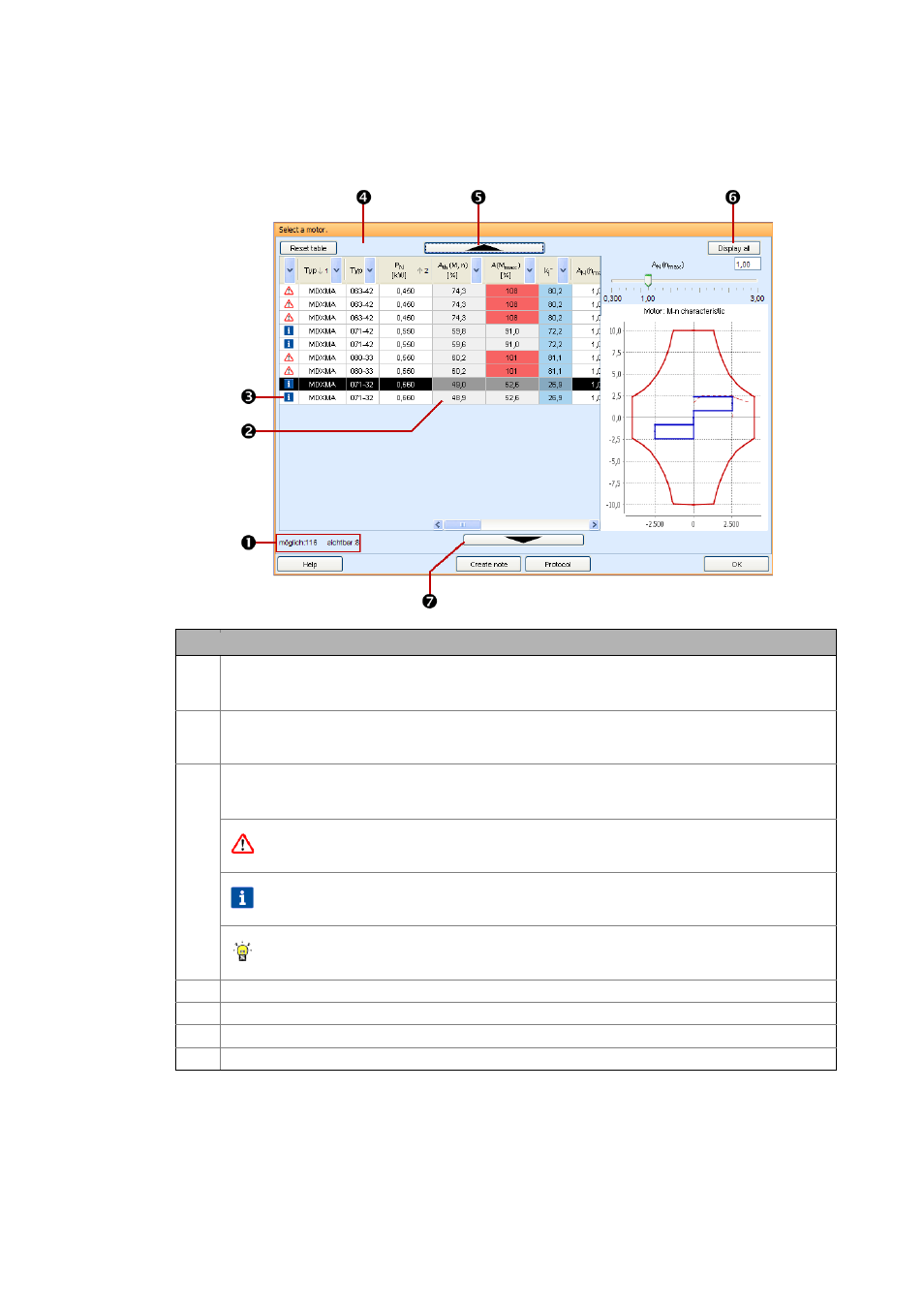

3.1.5.1
Structure of the selection tables
Description
Number of results:
• Possible: Total results detected by DSD.
• Visible: Results proposed and displayed by DSD.
• A cell with a grey background signalises that the corresponding parameter is a preview value which can
cause a warning signal.
Drive dimensioning messages.
• Several messages can be available for one component.
• The left column always shows the symbol of the highest warning level.
Warning
• Important criteria (e.g. limit values) are not fulfilled. A red background indicates the correspond-
ing value.
Information
• Important information has to be observed for a correct function of the component. A blue back-
ground indicates the corresponding value.
Tip
• Tips contain useful information on optimisation. A yellow background indicates the correspond-
ing value.
Button for resetting the extended representation of the selection table.
Button to show more components with smaller performance values.
Show all possible values detected by DSD.
Button to show more components with higher performance values.
