8 Motion design
8.2 MotionDesigner
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
8.2.5.2 Save motion profile
Together with the motion profile, the type of motion (translatory or rotary) is saved as well.

How to save the motion profile:
1. Click the icon in the toolbar.
• The motion profile including all parameter profiles is saved.
• When the motion profile is saved for the first time, you will be asked for the file name
(*.lmp) and the target directory.

How to save the motion profile under another name:
1. Click the icon in the toolbar.
2. In the Save motion profile dialog box, enter another file name (*.lmp) and select another tar-
get directory if necessary, then activate the Save button.

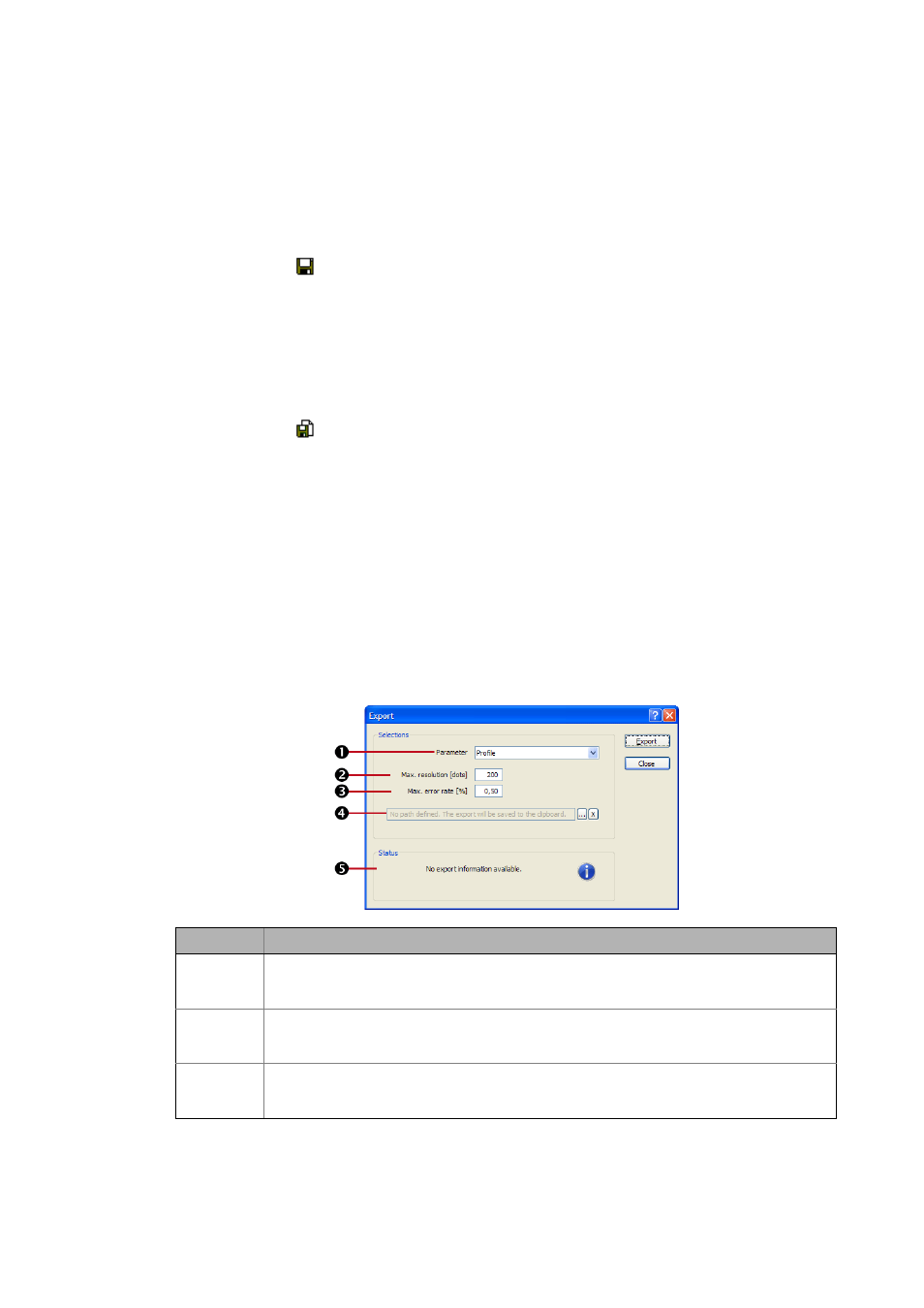

8.2.5.3 Exporting profile data
A highlighted object in the Object area (motion profile or parameter) can be exported to an ASCII file
or to clipboard.

In the Object area, highlight the motion profile or a parameter, activate the right mouse
button and select Export profile data from the context menu.
Legend Description
 Selection of the object to be exported.
• Click the list field to select an object.
• The list field displays all objects that belong to the motion profile.
 Specification of the max. resolution
• Click into the input field to enter a value.
• Value range: 10 … 1000 points
 Specification of the max. error rate.
• Click into the input field to enter a value.
• Value range: 0.01 … 99.99 %
