16 Auxiliary means
16.1 Auxiliary means integrated in the DSD
412
Lenze · Drive Solution Designer · Manual · DMS 4.2 EN · 12/2013 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

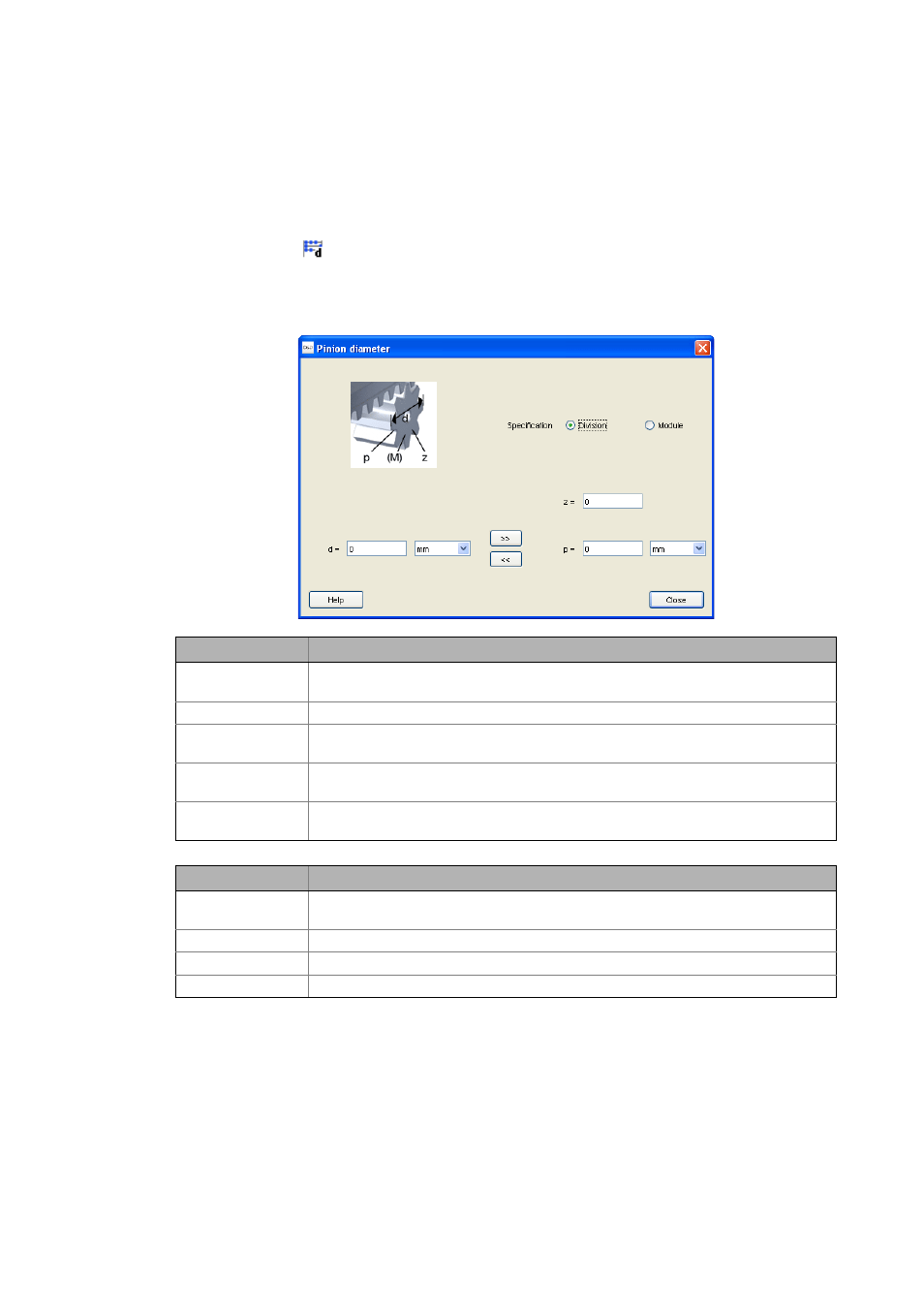

16.1.1.5 "Pinion diameter" calculator

How to call the calculator:
• Via the ToolsSpecial auxiliary calculatorsPinion diameter... command
• Via the
icon in the input area.
The calculator serves to calculate the drive diameter of rack and pinions from the module and of belt
applications from the division.
Button Function
>> Calculate pitch/module from the diameter and the number of teeth.
• Button only available by direct call-up via Toolbar.
<< Calculate diameter from the pitch/module and the number of teeth.
Close Close dialog box.
• Only available if the calculator is called via the menu bar.
Accept Accept calculated value for the parameter and close dialog box.
• Only available if the calculator is called via the input area.
Cancel Discard calculated value and close dialog box.
• Only available if the calculator is called via the input area.
Input field Meaning
Specification Selection of the calculation basis.
• "Module" (toothed racks) or "Pitch" (toothed belts) are available for selection.
Z Number of teeth of the driving pinion
P Division
M Module
