16 Auxiliary means
16.1 Auxiliary means integrated in the DSD
418
Lenze · Drive Solution Designer · Manual · DMS 4.2 EN · 12/2013 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

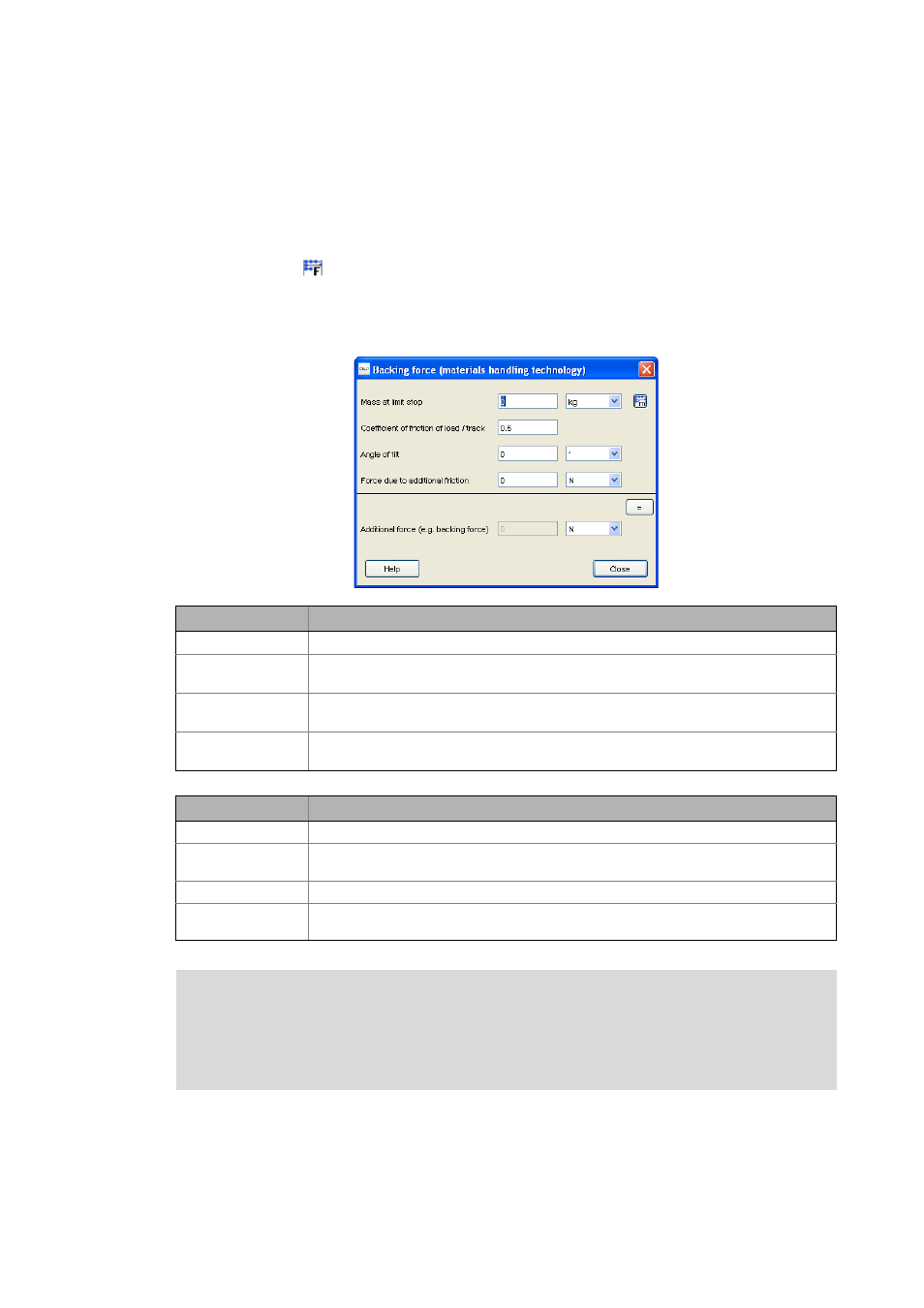

16.1.1.11 "Backing force (material handling technology)" calculator

How to call the calculator:
• Via the ToolsSpecial auxiliary calculatorsBacking force (material handling technolo-
gy)... command
• Via the icon in the input area.
The calculator serves to calculate the force acting on a continuous conveyor, exerted by transported
material driven against a limit stop .
Button Function
= Calculate result.
Close Close dialog box.
• Only available if the calculator is called via the menu bar.
Accept Accept calculated value for the parameter and close dialog box.
• Only available if the calculator is called via the input area.
Cancel Discard calculated value and close dialog box.
• Only available if the calculator is called via the input area.
Input field Meaning
Mass at limit stop The masses driven against a limit stop
Friction factor of load
on track
Friction coefficient between load and support
Angle of tilt Angle to the horizontal β
Force through further
types of friction
Force through further types of friction

Note!
The DSD does not transfer values from the input area to the auxiliary calculator.
• Ensure that the angle β in the auxiliary calculator corresponds to the angle entered in
DSD to avoid incorrect calculations.
