16 Auxiliary means
16.1 Auxiliary means integrated in the DSD
420
Lenze · Drive Solution Designer · Manual · DMS 4.2 EN · 12/2013 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Button Function
= Calculate result.
Standard values Resets all values in the input fields to the Lenze setting.
• Button only available by direct call-up via Toolbar.
Close Close dialog box.
• Only available if the calculator is called via the menu bar.
Accept Accept calculated value for the parameter and close dialog box.
• Only available if the calculator is called via the input area.
Cancel Discard calculated value and close dialog box.
• Only available if the calculator is called via the input area.

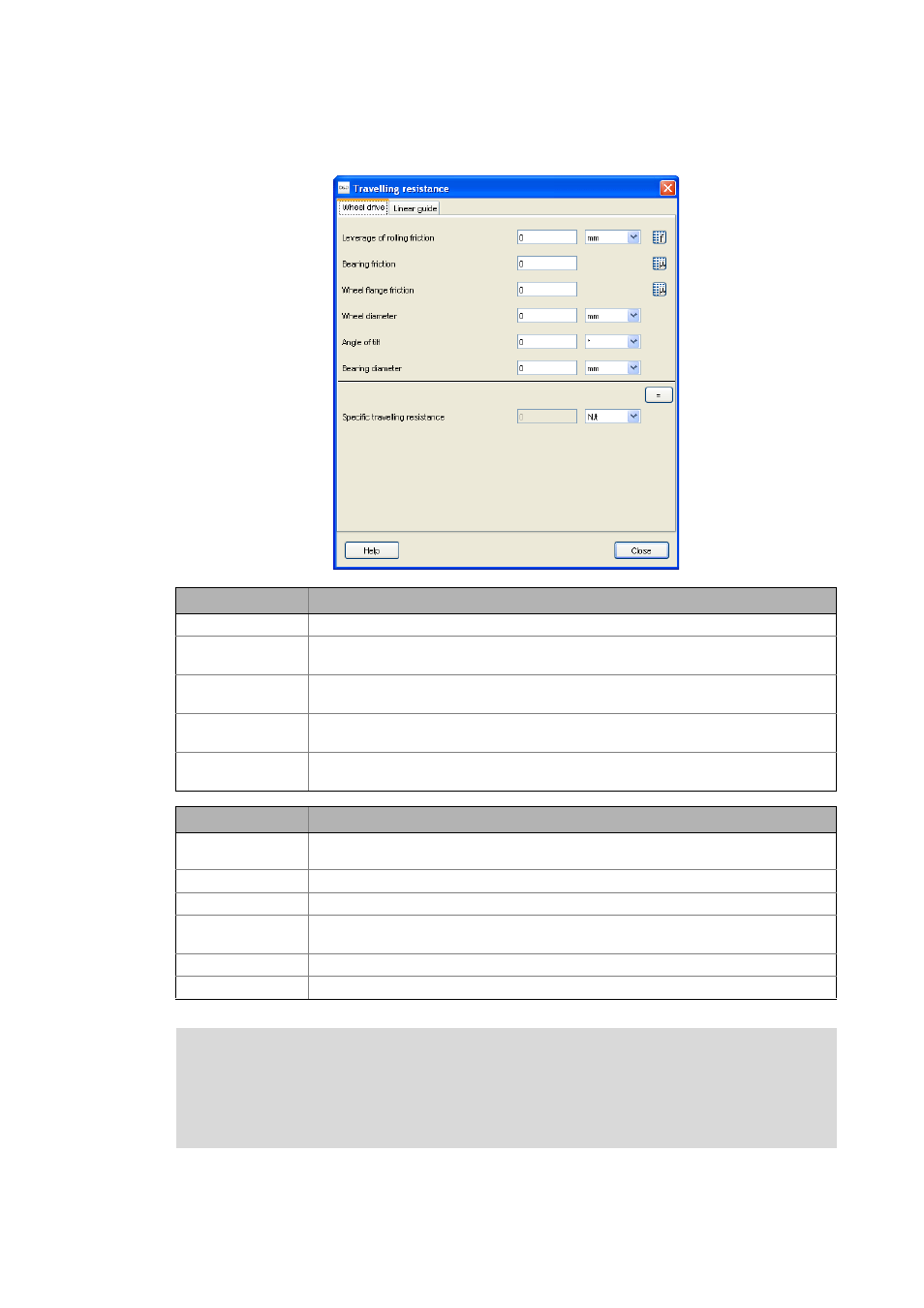

Input field Meaning
Lever arm of rolling
friction
Lever arm of rolling friction
Bearing friction Bearing friction (coefficient)
Wheel flange friction Lateral friction (coefficient)
Wheel diameter
Wheel diameter
• For the motion drive has to be identical to the values in the input mask.
Angle of tilt Angle to the horizontal β
Bearing diameter Bearing diameter

Note!
The DSD does not transfer values from the input area to the auxiliary calculator.
• Ensure that the angle β in the auxiliary calculator corresponds to the angle entered in
DSD to avoid incorrect calculations.
