7 Applications
7.21 Dimension the multi-axis system
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
7.21.5 Parameterising projects

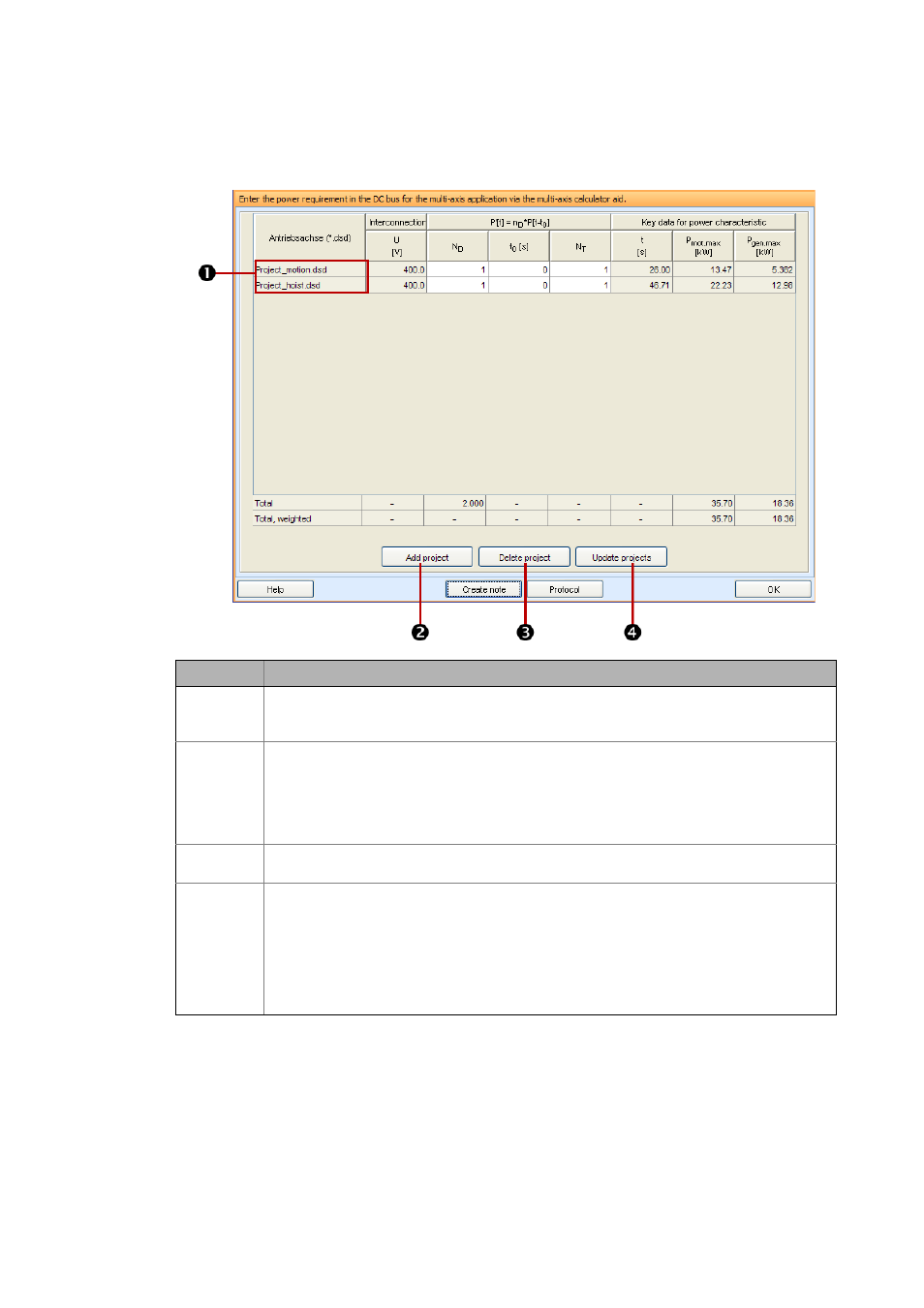

Legend Description
 Drive axis (*.dsd)
• Added DSD projects.
• The file name is displayed.
 Add project button
• Adds a DSD project to the multi-axis application.
• In order to add several DSD projects at the same time, select several files in the Add project dialog
box:
• In order to select single files, keep pressed and left-click the respective files.
• In order to select an area, keep pressed and left-click the first and the last file.
 Delete project button
• Deletes a highlighted DSD project from the multi-axis application.
 Update project button
• Updates the parameters if an added DSD project was changed. The DSD projects of the individual
drive axes are linked to the multi-axis application.
• Recommendation: Save the DSD project of the multi-axis application and the DSD projects of the
single drive axes to the same directory.
• The linking remains active if the entire directory is shifted and the multi-axis application is
opened.
• The linking gets lost if a project file is shifted.
