16 Auxiliary means
16.1 Auxiliary means integrated in the DSD
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

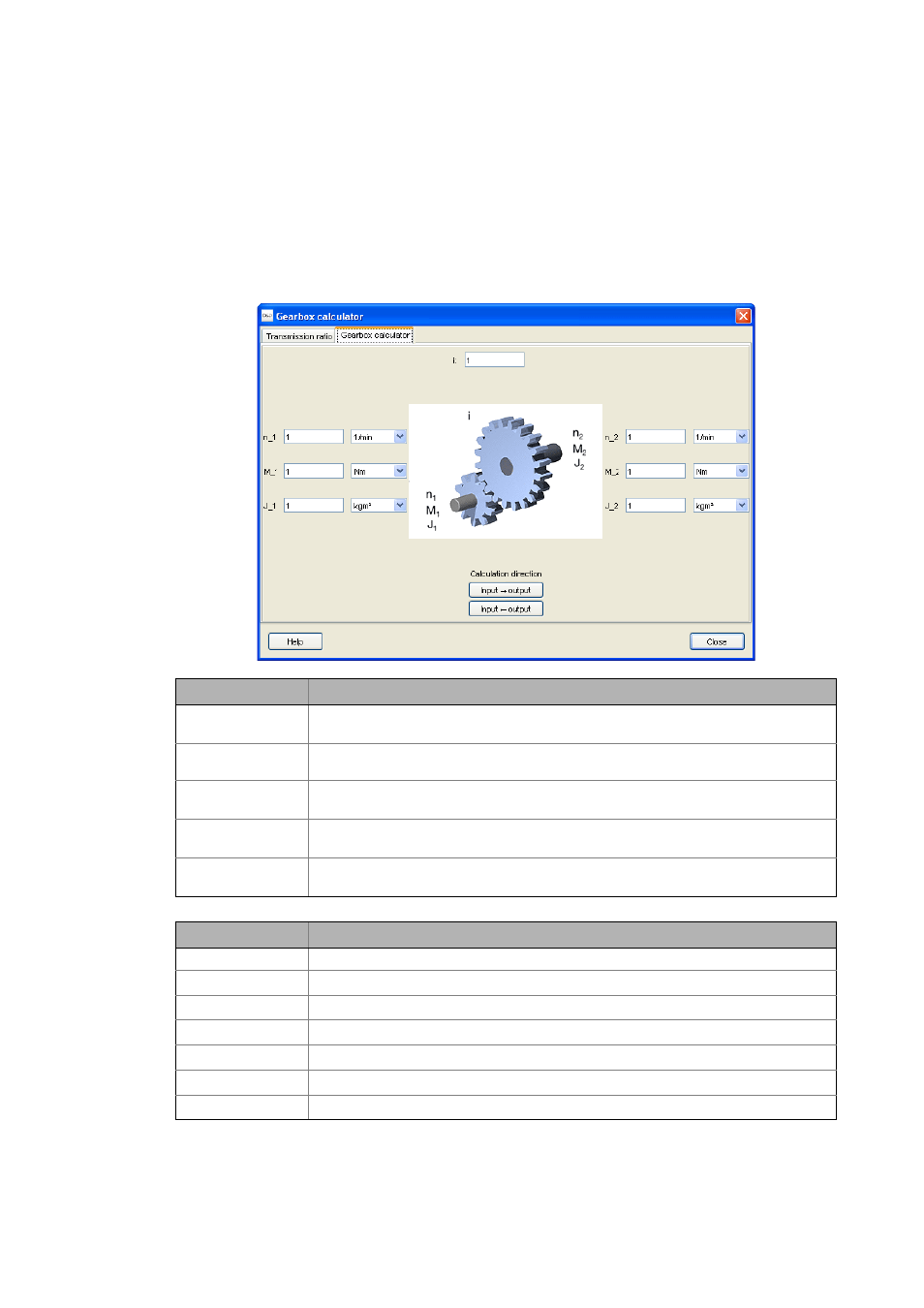

Gearbox calculator tab
On the Gearbox calculator tab, torques, speeds and mass inertias are transformed from one side of
the gearbox to the other.
• In order to allow for a transformation from the output end to the drive end, the desired direction
of the transformation can be changed by means of two buttons. Both calculation directions,
however, are only available via the toolbar when the gearbox calculator is called up. If an appli-
cation is carried out, only one direction is active.
Button Function
Drive end --> output
end
Calculate result: drive end on output end.
• Button only available by direct call-up via Toolbar.
Drive end <-- output
end
Calculate result: output end on drive end.
Close Close dialog box.
• Only available if the calculator is called via the toolbar or the menu bar.
Accept Accept calculated value for the parameter and close dialog box.
• Only available if the calculator is called via the input area.
Cancel Discard calculated value and close dialog box.
• Only available if the calculator is called via the input area.
Input field Meaning
i Transmission ratio for the calculation
n
1
Speed at the drive end
M
1
Torque at the drive end
J
1
Moment of inertia at the drive end
n
2
Speed at the output end
M
2
Torque at the output end
J
2
Moment of inertia at the output end
