8 Motion design
8.2 MotionDesigner
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

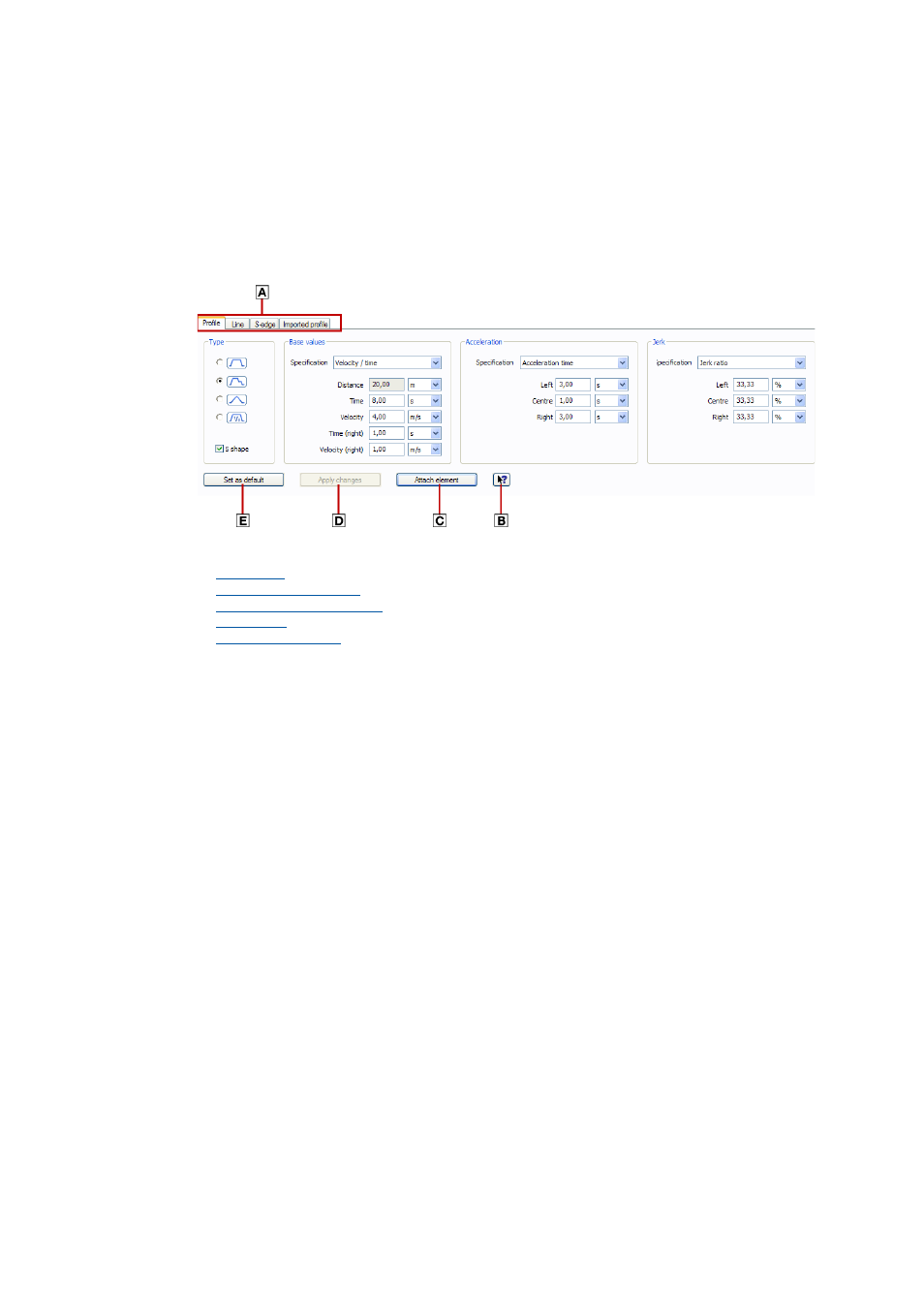

8.2.7 Parameter area: Description
In the parameter area, the values of a selected element of the motion profile or the parameter pro-
file are indicated.Graphically created elements can be optimised by entering the values numerically.
Elements can also be created by entering values numerically and attaching them to the motion pro-
file. For the purpose of analysing, the values of the points of an imported profile are indicated in tab-
ular form.
 Tabs under which the parameter areas are edited.
 "Profile" tab ( 248)
 "Line" tab: Motion profile ( 250)
 "Line" tab": Parameter profile ( 251)
 "S-edge" tab ( 253)
 "Imported profile" tab ( 254)
 Call of the context-sensitive help in the parameter area
 Attach an element with the specified values to the motion profile in the right Graphic area.
• The button is only active if no element is selected in the Graphic area.
 Change the highlighted element in the Graphic area according to the entered values.
• For the selected element, the respective tab is always active.
 Set the values in the input fields of the respective areas as a specification for the corresponding element.
• The values do not need to be entered anew if you want to create several elements with the same values.
• The values are specified until new values are set as specification.
