16 Auxiliary means
16.1 Auxiliary means integrated in the DSD
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

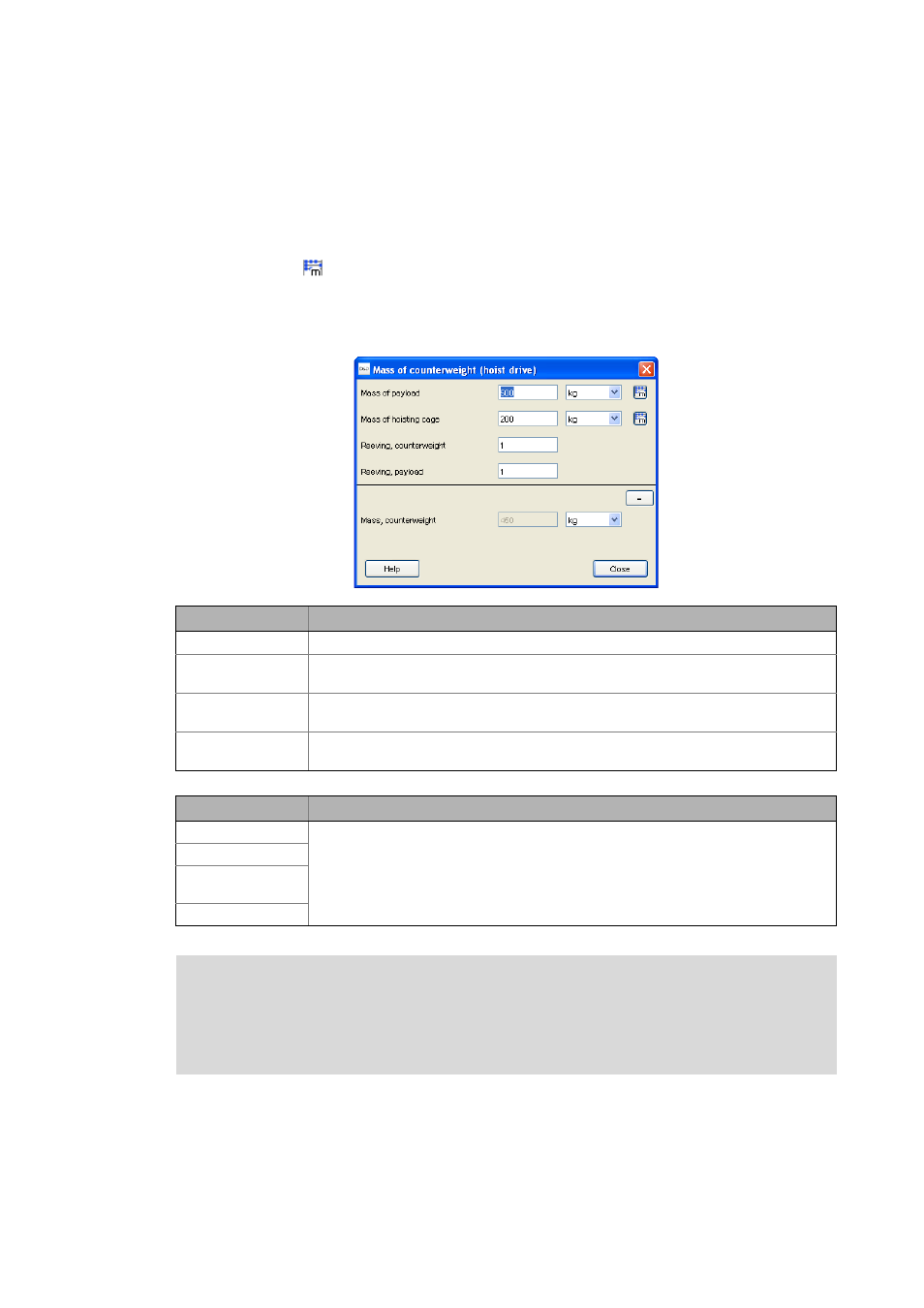

16.1.1.6 "Mass of counterweight (hoist drive)" calculator

How to call the calculator:
• Via the ToolsSpecial auxiliary calculatorsMass of counterweight (hoist drive)... com-
mand
• Via the icon in the input area.
With regard to hoisting applications with counterweight, the required drive power can be mini-
mised by selecting the optimum counterweight.
Button Function
= Calculate result.
Close Close dialog box.
• Only available if the calculator is called via the menu bar.
Accept Accept calculated value for the parameter and close dialog box.
• Only available if the calculator is called via the input area.
Cancel Discard calculated value and close dialog box.
• Only available if the calculator is called via the input area.
Input field Meaning
Mass of the payload Input parameters for the calculation
Mass of hoisting cage
Reeving, counter-
weight
Reeving, payload

Note!
The DSD does not transfer values from the input area to the auxiliary calculator.
• Ensure that the values for the reeving in the auxiliary calculator correspond to the
values entered in DSD to avoid incorrect calculations.
