7 Applications
7.22 Winding drive for rewinder/unwinder
208
Lenze · Drive Solution Designer · Manual · DMS 4.2 EN · 12/2013 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
7.22.3 Dimensioning strategies
The diagram below shows the basic procedure for dimensioning a winding drive. DSD automatically
guides you through the required dimensioning steps.

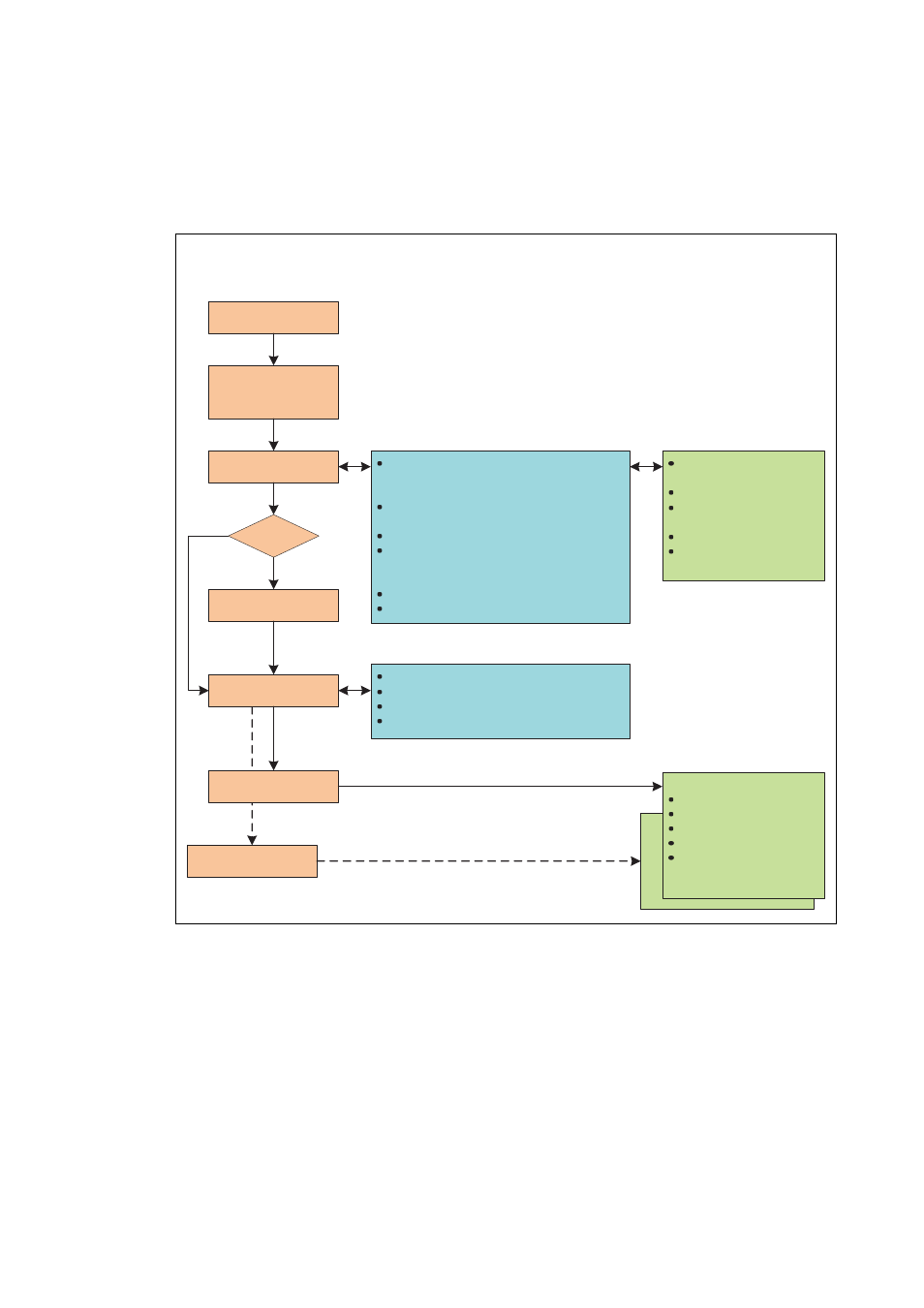

[7-232] Strategy for dimensioning a winding drive in DSD
Calculation of the
physical values
(M, n, P)
Select motor
Select inverter
Select gearbox
Motor type (asynchronous, synchronous,
frame size, weight, enclosure, servo,
standard)
Select low rated speed for high field
weakening (e.g. 29-Hz technology)
Gearbox yes/no
Field weakening factor k
f
< winding ratio q
(the greater k
f
, the lower the motor/inverter
power)
Mechanical requirements
Ambient conditions
Drive solution 1
Enter process
parameters
Dimensioning of the
drive in DSD
Dimensioning
diameter d
dim
Load-matching factor k
J
Impact of disturbance
variables
Rated power
Emergency stop times
(acceleration/braking)
Consideration of dimensioning criteria Observance and
evaluation of results
Winding concept
Control mode
Accuracies (e.g. ranges of control)
Technology modules (FAST)
Drive solution n
Log, project comparison
Technology
Price
Unit volume
Energy efficiency
Dimension service brake
for emergency stop
manually
No
Gearbox?
Yes
