7.21.4 Dimensioning

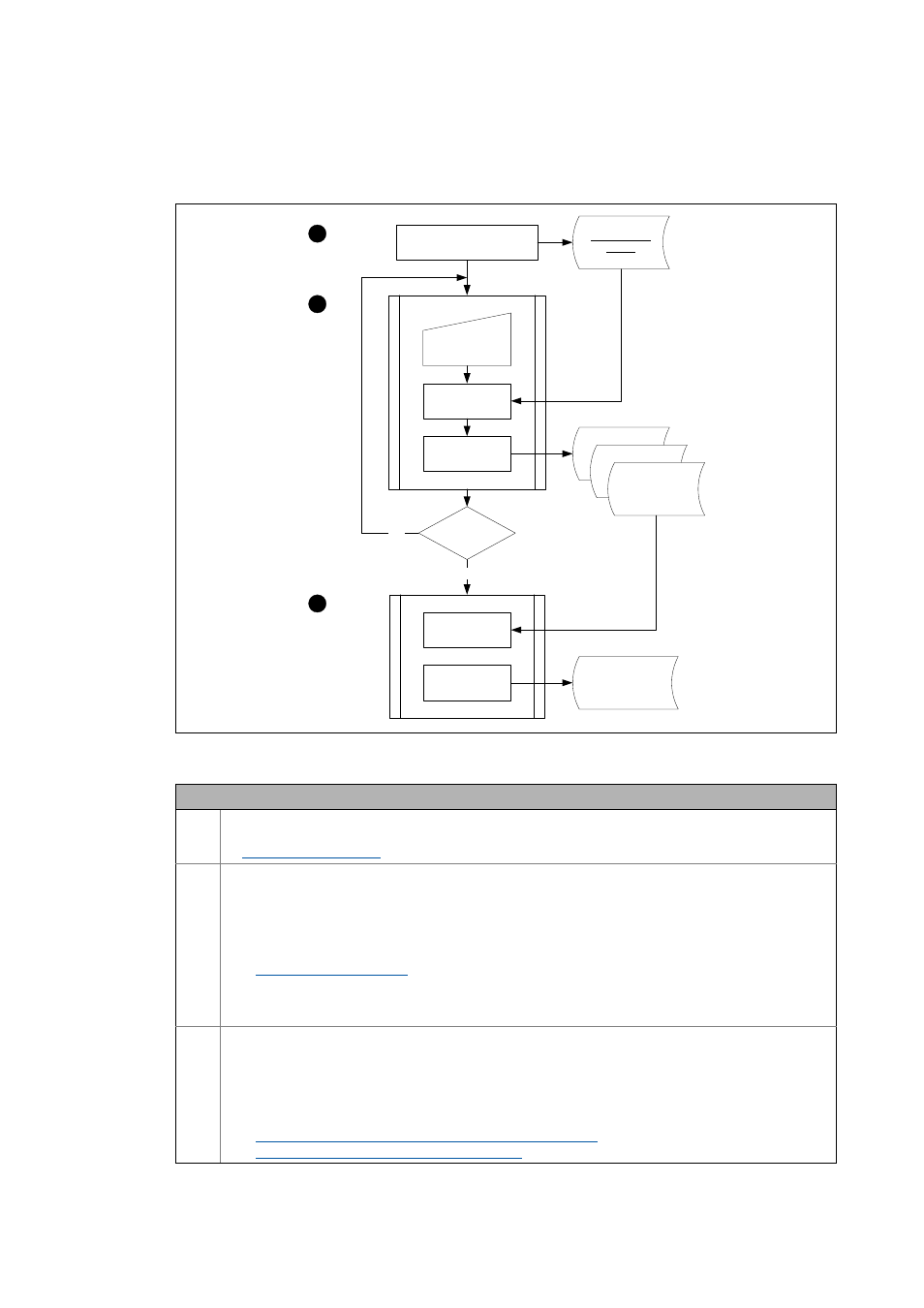

[7-192] General procedure of dimensioning a coordinated multi-axis system
Describe kinematics for the
drive axes
Dimension the drive axis
Enter the
application data
Dimension the
components
Load the motion
profile
Dimension the
drive axis?
Dimension the multi-axis
system
Read in the drive
axes (*.dsd)
DSD project
Drive axis
(*.dsd)
Dimension the
components
No
Yes
DSD project
Multi-axis system
(*.dsd)
Motion profile
(*.lmp)
1
2
3
Description
 Go to the independent MotionDesigner, create the motion profiles for all drive axes and save them to a file
(*lmp).
• Movement of drive axes ( 195)
 Dimension all drive axes of the multi-axis system.
• Load the Imp file with the motion profiles in the MotionDesigner of the drive axis, select and accept the
corresponding motion profile.
• Select "Inverter with DC supply (multi-axis application)" as electrical drive concept. DSD automatically re-
duces the selection and only offers inverters that are suitable for the DC-bus connection.
• Dimension components and consider the compatibility of the products in the DC bus.
• Combining Lenze products ( 191)
• The power in generator and motor mode in the DC bus is calculated separately. DSD considers influenc-
ing values as power required of the application, power loss of the drive components and kinetic energy
demand due to mass inertia.
 Select the "Dimension multi-axis system" application and read in the DSD projects of the drive axes.
• Optional processing for each DSD project:
• Time displacement of the motion profile.
• Multiple repetition of the motion profile.
• Number of drive axes for a DSD project.
• Dimension components and define possible supply strategies:
• Central mains supply via regenerative power supply module ( 185)
• Central mains supply via power supply module ( 187)
