10 Structure of the drive axis
10.3 Drive concept
298
Lenze · Drive Solution Designer · Manual · DMS 4.2 EN · 12/2013 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

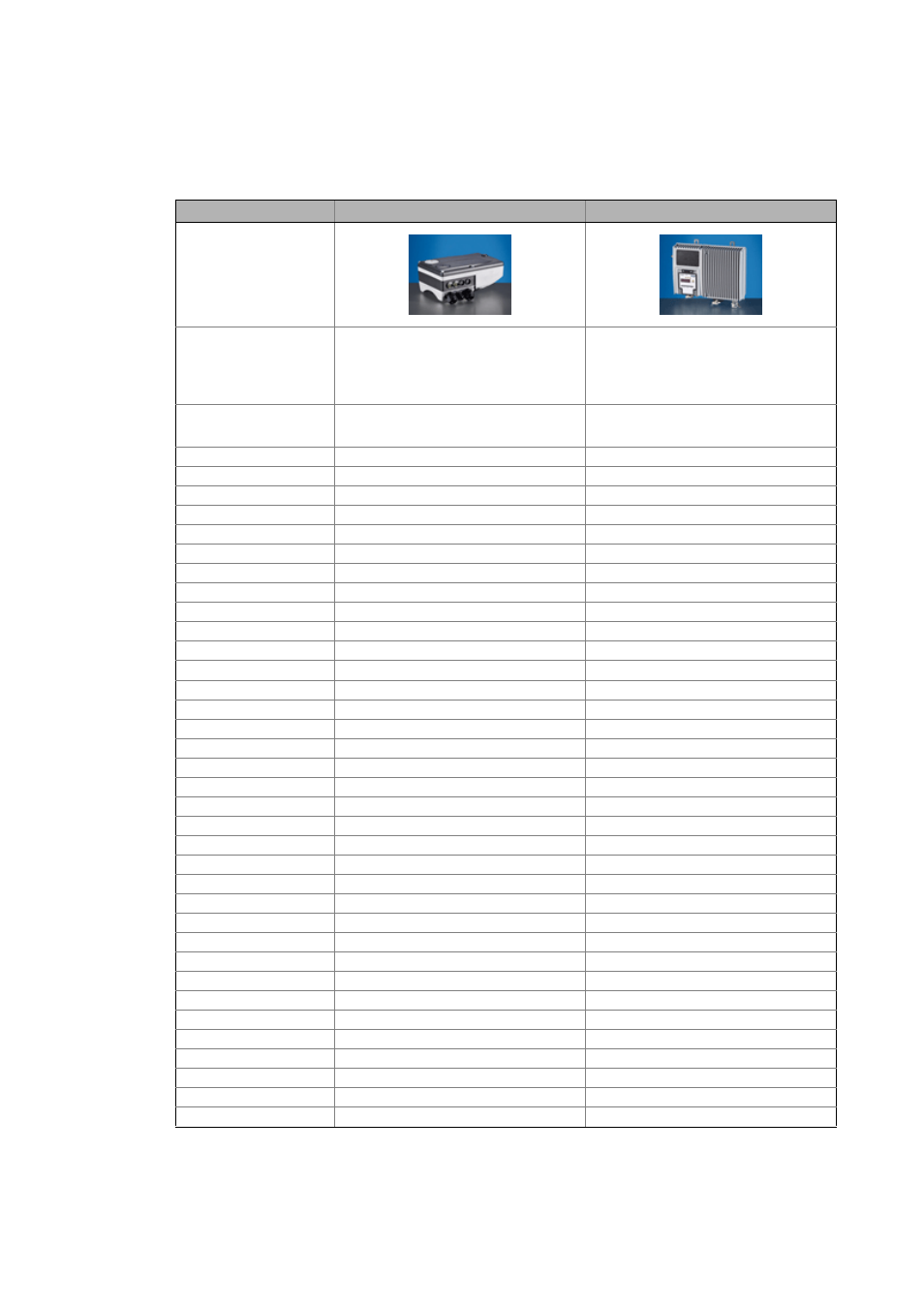

10.3.4.3 Decentralised inverters
8400 motec 8400 protec
Illustration
Short description Frequency inverters for motor and wall mounting, V/f
control without encoder, vector control without speed
feedback, optionally with integrated safety functions,
fieldbus communication, pluggable memory chip for
the parameter set, high operational reliability thanks to
a thermally independent system
Frequency inverter for wall mounting, vector control
with and without speed feedback, overload capacity up
to 180 %, optionally with integrated safety functions,
fieldbus communication, pluggable memory chip for
the parameter set, high operational reliability thanks to
a thermally independent system
Voltage range/power range 3 AC 320 … 528 V: 0.37 … 7.5 kW 3 AC 320 … 550 V:
0.75 … 4.0 kW (1st version)
7.5 kW (2nd version)
Approvals CE (UL in preparation) CE (UL in preparation)
Permissible power systems TN, TT, IT TN, TT
Switching frequencies 4, 8, 16 kHz 2, 4, 8, 16 kHz
Mechanical design
Built-in unit – –
Push-through technique – –
Cold plate technique – –
Motor mounting  –
Wall mounting  
Enclosure IP 55 / IP 66 IP 65
Operation in generator mode
Integrated brake resistor  
External brake transistor – –
Regenerative – –
Control types
V/f control  
Vector control (encoderless)  
Servo control – 
Drive function
Voltage / frequency control  
Torque control – 
Closed-loop speed control  
PID controller  
Motion Control – –
Programmability
Parameterisation  
Function block programming – 
IEC 61131-3 – –
I/O
Analog input / output 0/0 or 1/0 1/0
Digital input / output 2/0 or 5/1 4/2 or 6/0
Relay output  –
Speed feedback – 
PTC  
KTY – –
