16 Auxiliary means
16.1 Auxiliary means integrated in the DSD
408
Lenze · Drive Solution Designer · Manual · DMS 4.2 EN · 12/2013 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

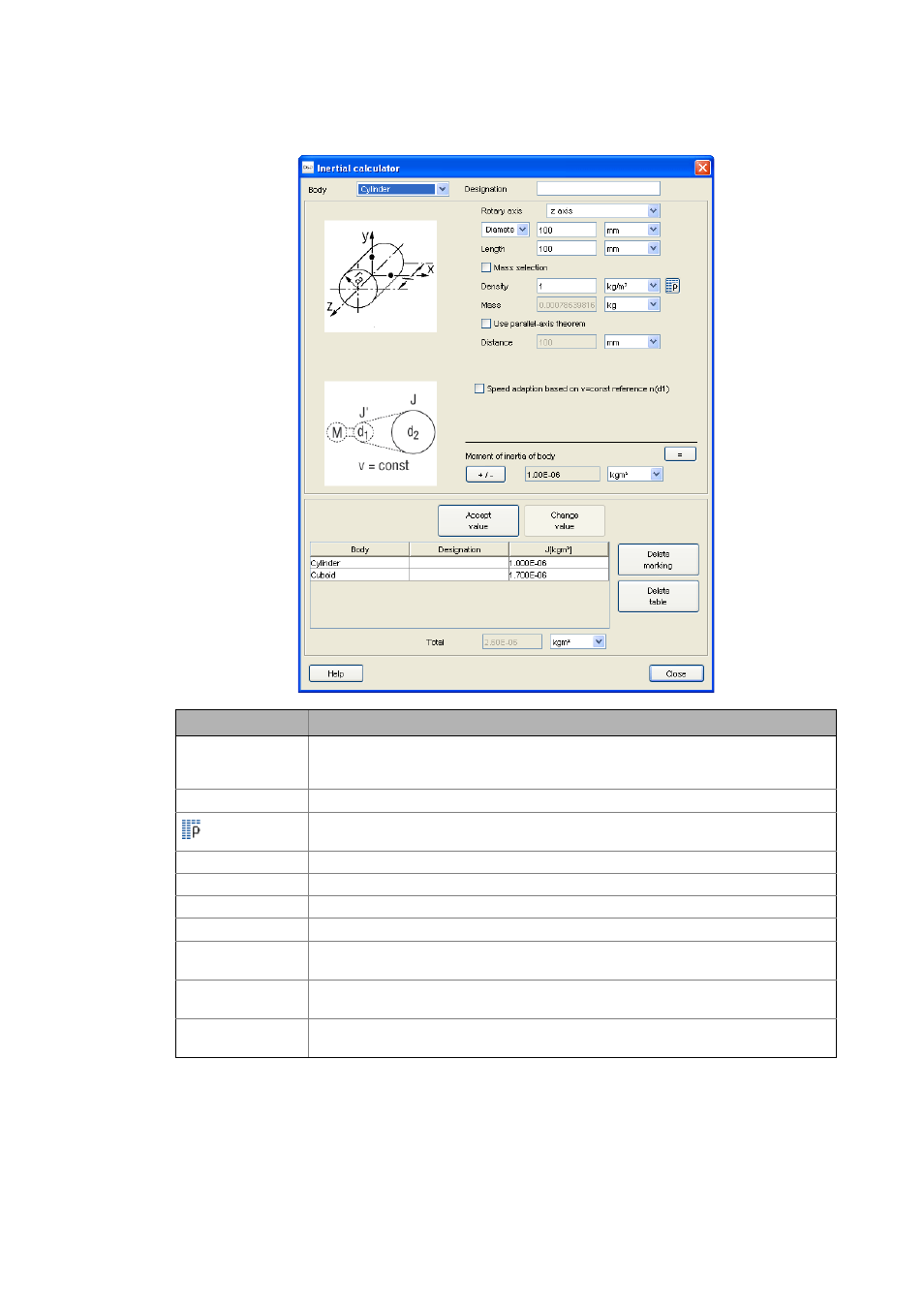

Button Function
+/- Switch over between negative and positive inertia.
• Required with regard to a negative mass (e. g. bore) which has to be subtracted from the
field.
= Display result.
Call up density table.
• In the density table, the specific weight of the most important materials is specified.
Accept value Add calculated inertia of the subfield to the table (to the total inertia).
Change value Apply changes to the subfield selected from the table.
Delete marking Delete the subfield selected from the table.
Delete table Delete all subfields in the table.
Close Close dialog box.
• Only available if the calculator is called via the toolbar or the menu bar.
Accept Accept calculated value for the parameter and close dialog box.
• Only available if the calculator is called via the input area.
Cancel Discard calculated value and close dialog box.
• Only available if the calculator is called via the input area.
