7.22.6 Application data
Enter the application-specific data in the Data of the application dimensioning step.
7.22.6.1 Winder control mode
A DSD wizard supports you in the optimal dimensioning of the winding drive and the selection of the components. DSD displays messages (tips,
notes, and warnings) if the further dimensioning influences certain settings:
• Winder control mode
• Data of the application and motion
• Type of inverter control
The messages are also included in the DSD protocol.
Overview
Symbol Description
Mode • Tension control (M)
• Dancer position control (n)
• Tension control (M)
• Tension control (n)
• Velocity control (n)

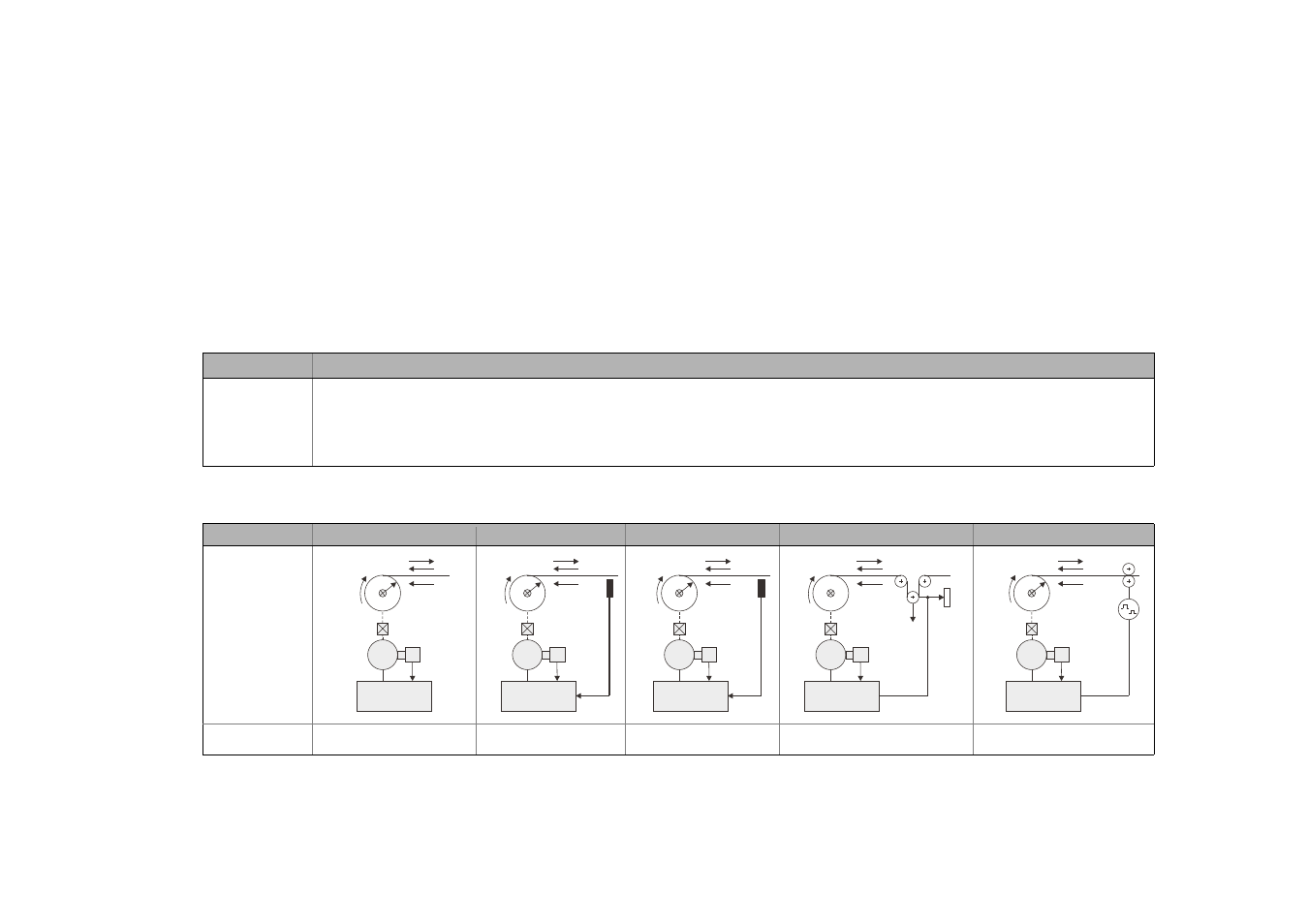

Tension control (M) Tension control (M) 1) Tension control (n) 1) Dancer position control (n) Velocity control (n)
Winder control mode
Traversing motor con-
trol
Open-loop torque control Closed-loop torque control Closed-loop speed control Closed-loop speed control Open-loop speed control
v
F
M
3~
Inverter
n, M r
v
F
n, M r
M
3~
Inverter
M = f(F, r)
n = f(v, r)
F
act
v
F
n, M r
M
3~
Inverter
M = f(F, r)
n = f(v, r)
F
act
v
F
F~F
G
F
G
M
3~
n, M
Inverter
Actual
position
v
F
M
3~
n, M r
v
act
Inverter
M = f(F, r)
n = f(v, r)
