11.2.6 Thermal utilisation
For the calculation of the thermal utilisation, the heating in the motor is simulated by a PT1 func-
tion.
Important quantities for the utilisation A
th
(t):
• Utilisation of the gearbox via a cycle.
• The utilisation results from the ratio of the instantaneous torque value M(n(t)) and the cor-
responding value M
S1
(n(t)) from the continuous characteristic
• Thermal time constant of the motor.

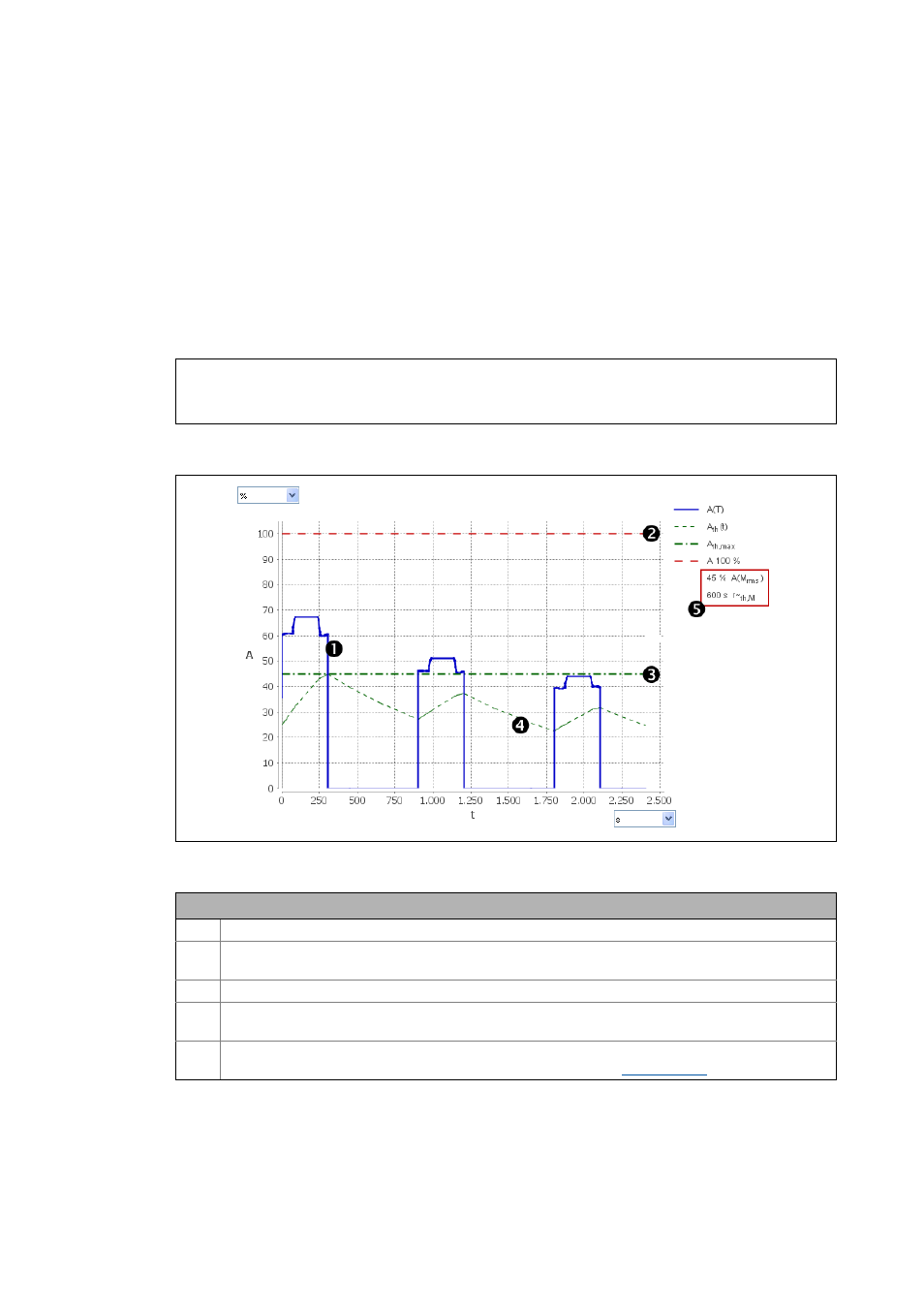

[11-4] Calculation of the thermal utilisation of the motor via a cycle
[11-5] Diagram of motor: Thermal utilisation
A
th
t ( )
M n t ( ) ( )
M
S1
n t ( ) ( )
--------------------------
 
 
2
=
Description
 Instantaneous utilisation
 100 % utilisation
• If this limit is exceeded, the motor will be overheated.
 Max. value of the thermal utilisation
 Thermal utilisation
• Simulated value, calculated with the time constant of the motor.
 Performance features
• The performance features can also be found in the selection table. Selection table ( 319)
