11.6.1.3 Overcurrent operation for Servo Drives 9400
The inverters are designed for two overcurrent modes:
• Cycle of 5 s
• Load period of 0.5 s with peak current 
• Recovery time of 4.5 s with limited current 
• Cycle of 3 min
• Load period of 1 min with peak current 
• Recovery time of 2 min with limited current 
After a load period with a peak current a recovery time has to follow. During the recovery time the
current may not exceed the value specified.
The values specified refer to the rated output current I
N,out
.

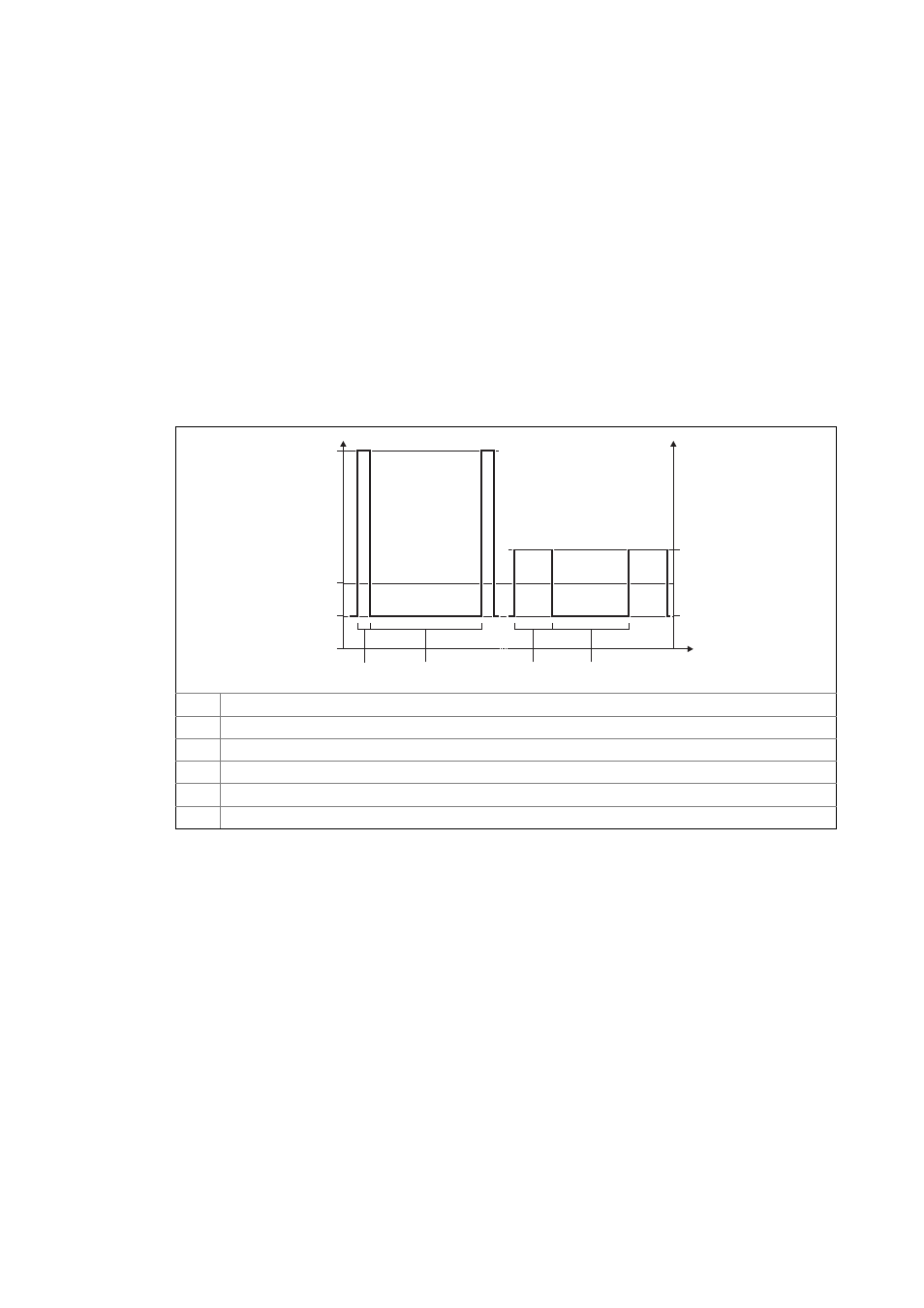

[11-20] Overcurrent capability for Servo Drives 9400 at 45 °C
 Cycle of 5 s
 Peak current for 0.5 s
 Max. current during the recovery time for 4.5 s
 Cycle of 180 s
 Peak current for 60 s
 Max. current during the recovery time for 120 s
t 0
100
2
0
1 3
0.5 s 4.5 s 60 s 120 s

‚
