3.1.3
Drawing

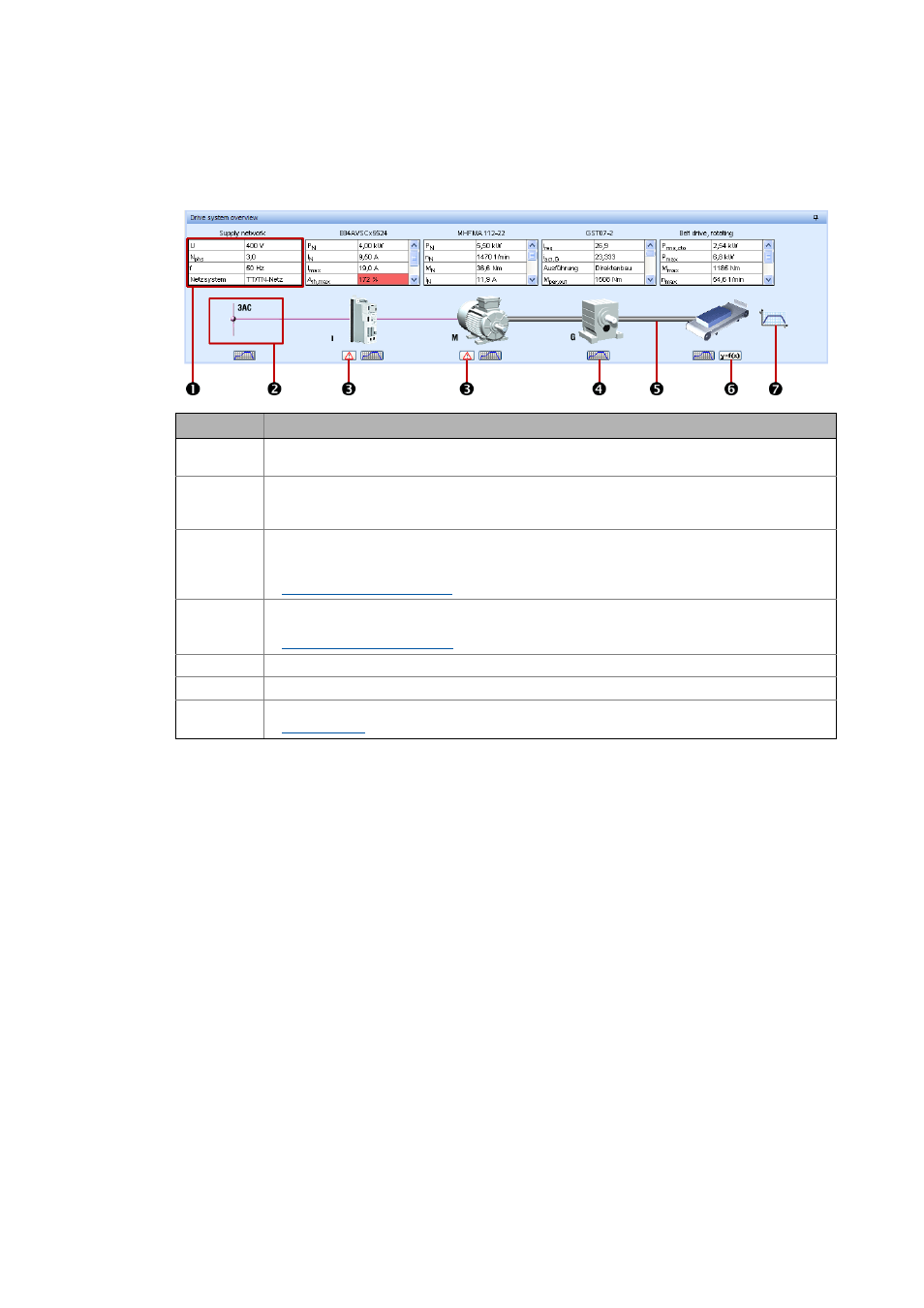

The drawing visualises the current state of the drive dimensioning.
Notes
• At the beginning of the configuration a general drive train is displayed, consisting of the follow-
ing components:
• Mains/environment
• Inverters
• Motor
• Gearbox
• Application
• Motion
• The components inverter and gearbox (with or without an additional drive element) are option-
al, i. e. their existence depends on the application or the dimensioning procedure.
• Therefore these components are displayed in an inactive manner at the beginning of the di-
mensioning. Depending on the further procedure the inverter or gearbox is displayed or re-
moved from the drawing.
• Additionally, with regard to multi-axis applications, the drawing can be extended by a power
supply module (Master project) or by a place holder (Slave project).
• If an "Additional drive element" is used, this is symbolised by a toothed belt in the drawing, ir-
respective of the type selected.
Legend
Information
Short overview of the drive system with the data entered, rated data of the selected drive compo-
nents and their utilisation, and display of warning parameters.
Illustration of the component (at the same time button).
• By clicking on the illustration you directly reach the selection table for the corresponding compo-
nent where a variety of data is provided.
Button for calling messages and notes for the corresponding component.
• Disregarding warning signals may result in damage or malfunctions of the application, as far as
this is not monitored by the system.
Drive dimensioning messages ( 441)
Button for calling the diagrams for the corresponding component.
• Graphical representation of the speed, torque and utilisation behaviour.
Diagrams for the components ( 387)
Representation of the drive train used.
Button for calling the description of the application in the online help.
Button for calling the motion profile.
