7.21.2.3
Central mains supply via inverter

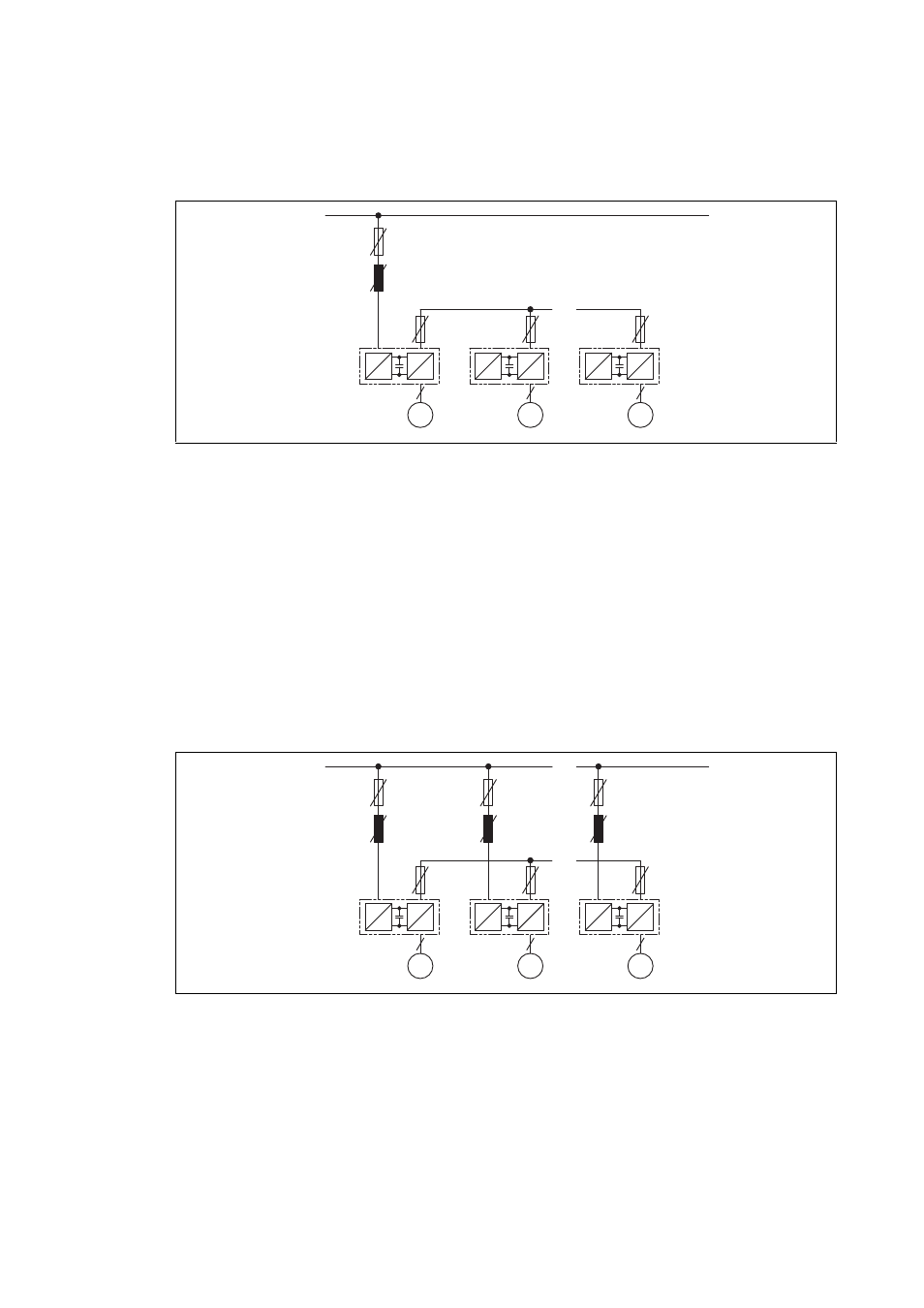

[7-189] Central mains supply via inverter
• The arrangement cannot be dimensioned in the DSD.
• The drive axes can be each dimensioned separately in the DSD.
• The DC parameters for the inverter on the mains must be calculated manually. The required
intermediate results are provided by DSD.
• The entire power balance must be calculated manually.
• The operation of i700 axis modules via the DC bus of an inverter is principally possible.
• The drive axes can be each dimensioned separately in the DSD.
• The DC parameters for the inverter on the mains must be calculated manually. The required
intermediate results are provided by DSD.
7.21.2.4
Decentralised mains supply via several inverters
[7-190] Decentralised mains supply via several inverters
• The arrangement cannot be dimensioned in the DSD.
• The drive axes can be each dimensioned separately in the DSD.
• Additional parameters for the DC bus connection must be determined manually.
