Figure 2. remote peer management - example 1 – Allied Telesis AT-S99 User Manual
Page 47
AT-S73 and AT-S99 Management Software User’s Guide
47

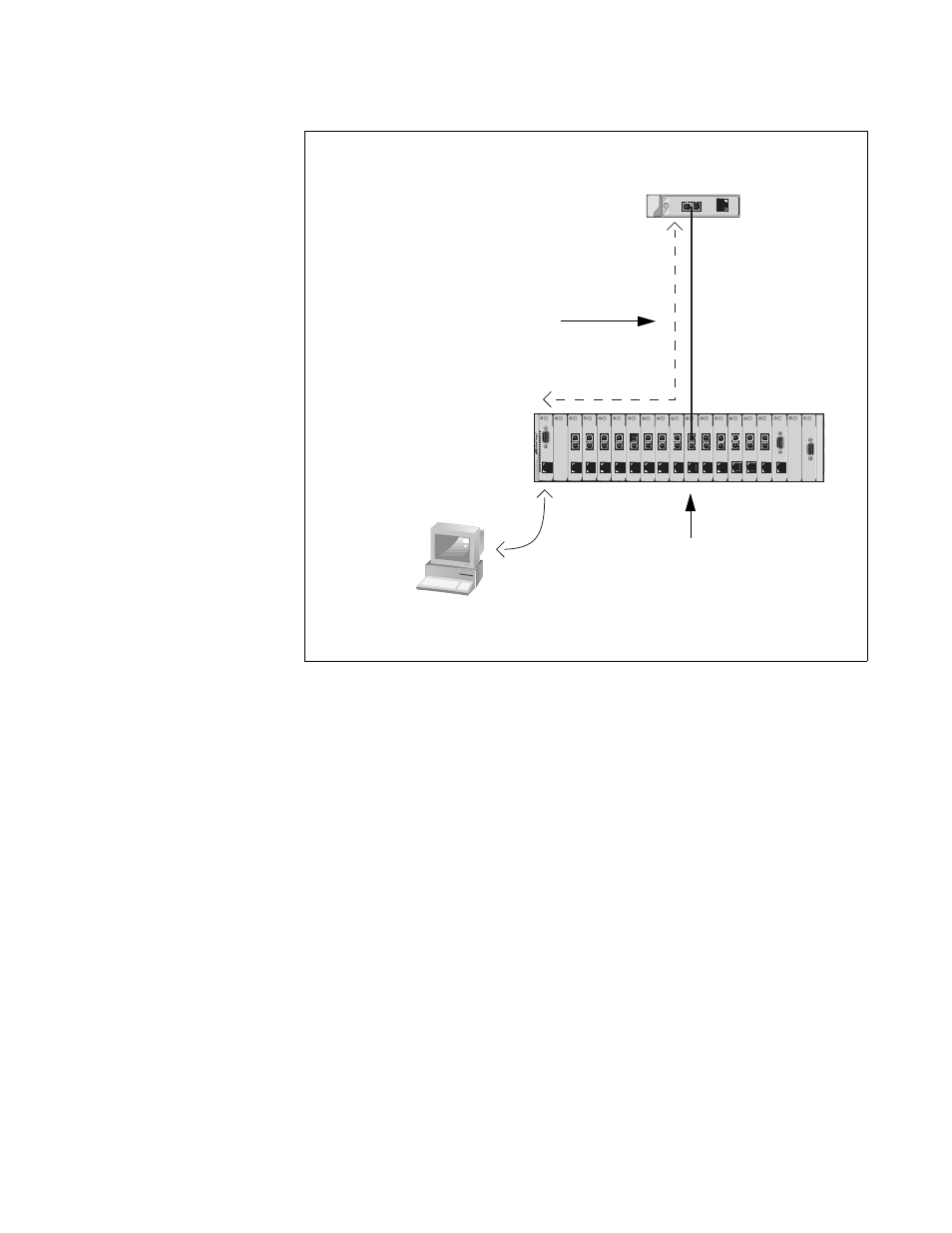

Figure 1. Remote Peer Management - Example 1
This feature is supported on all of the Converteon chassis. In the next
example the chassis with the management card is the AT-CV1203
Chassis.
FAN1
PS1
RDY
A
T
-CV5000
AT-CM Line Card in remote
AT-CV1000 Chassis
AT-CV5000 Chassis
and AT-CV5M02
Management Card
AT-CM Line Card
in slot 11
Management traffic
Local or remote management
workstation
