AT-S73 and AT-S99 Management Software User’s Guide
105
Configuring the Syslog Client
For background information, refer to “Syslog Client” on page 23.
Menus
To configure the syslog client from the menus:
1. From the Main Menu, select Administration to display the
Administration Menu shown in Figure 28 on page 98.
2. From the Administration Menu, select the Syslog Server Address
field and enter the IP address of the syslog server on your network. To
stop the management card from sending any further event messages
to the server, enter 0.0.0.0 as the server address.
3. Select the Syslog Facility Code field and enter a facility code for the
events. The management card adds this code to the messages when it
sends the messages to the syslog server. The range is 0 to 23. The
default is 1. The numerical codes are defined in the RFC 3164
standard.
4. To save your changes in the master configuration file, return to the
Main Menu and select Configuration and Save System and All Line
Card Configurations.
Web Browser
To configure the syslog client from the web browser windows:
1. Select Administration from the menu bar.
2. Click the Syslog tab to display the tab in Figure 33.

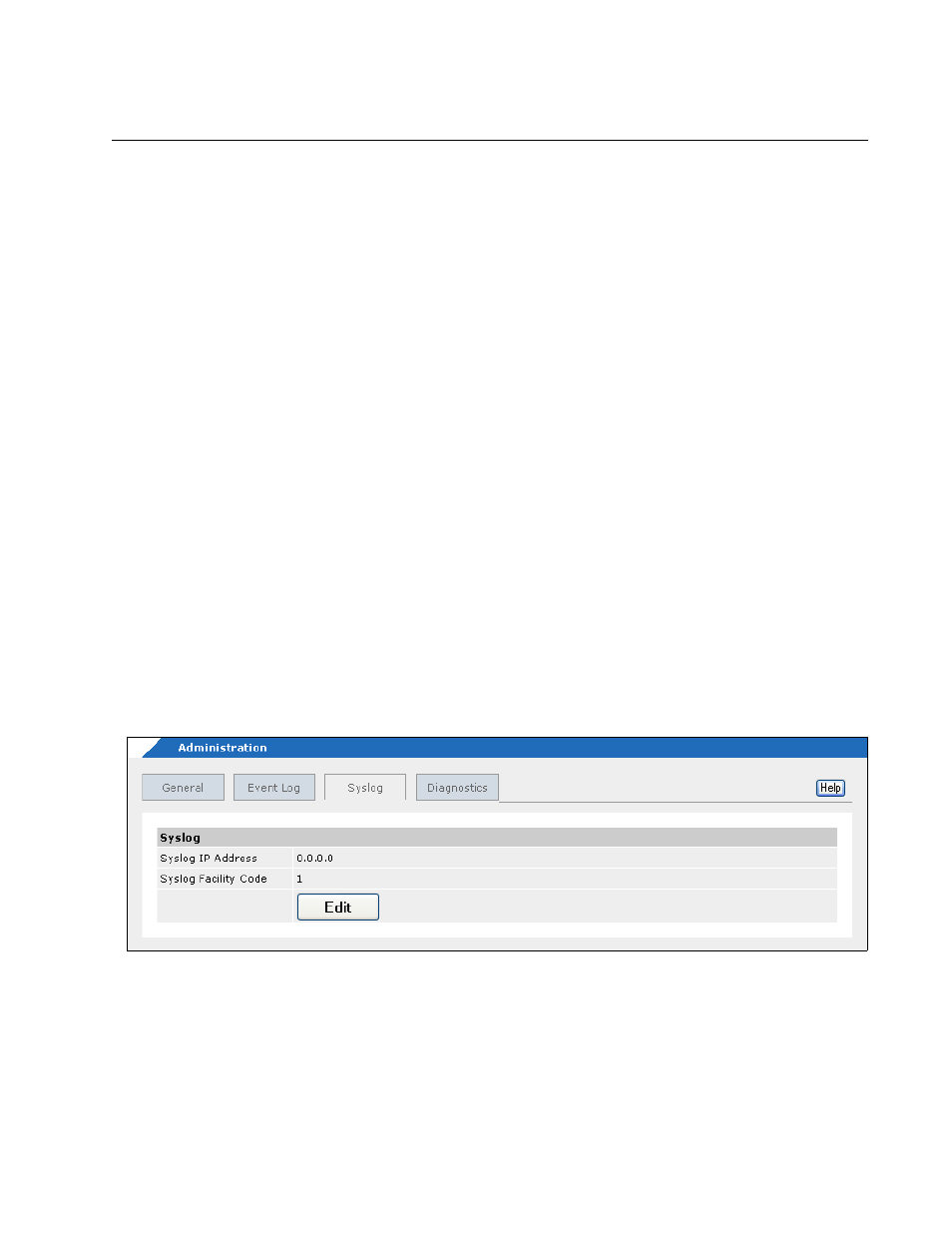

Figure 33. Syslog Tab
3. Click Edit to display the Syslog pop-up window.
