AT-S73 and AT-S99 Management Software User’s Guide
163
Web Browser To reset all of the media converter line cards in the chassis from the web
browser windows:
1. Select Administration from the menu bar.
2. If the General tab shown in Figure 68 is not selected, select it.

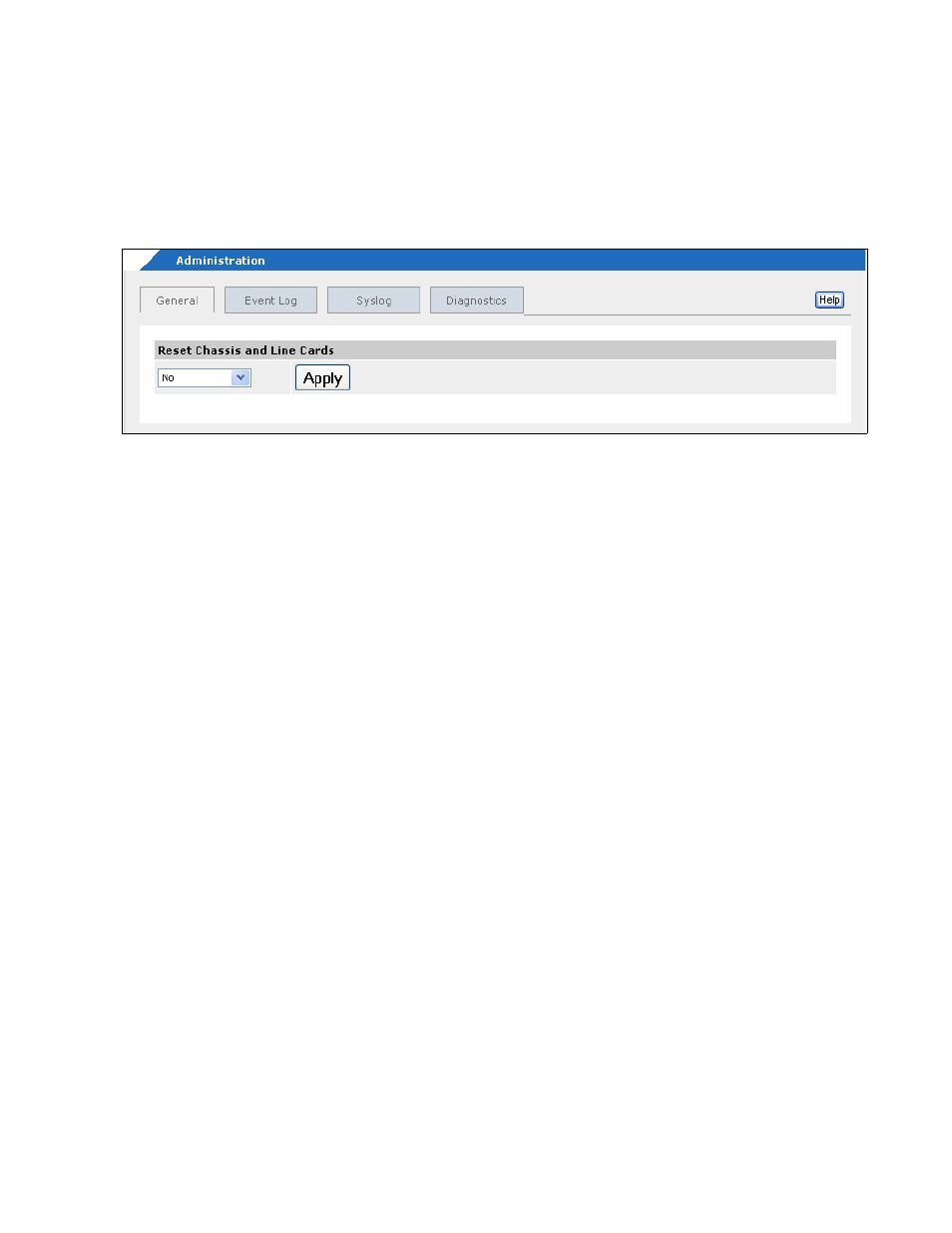

Figure 68. General tab
3. In the Reset Chassis and Line Cards section of the window, select Yes
from the pull-down menu and click Apply.
4. To monitor the status of the AT-CM Line Cards, select the Menu View
from Module Status & Configuration. A line card has completed the
reset process when its status changes to On in the Menu View.
