Chapter 8: Configuring the Operations, Administration, and Maintenance Client
220
Web Browser To display status information for local OAM clients from the web browser
windows:
1. Select Module Status & Configuration from the menu bar.
2. From the Chassis View, click Port A, the fiber optic port, on the AT-CM
Line Card whose OAM information you want to view. Alternatively,
select the Menu View and click the model name of the AT-CM Line
Card.
3. If Port A is not selected, select it. The OAM client is only supported on
Port A.
4. Click the OAM Local Information tab to display the window in Figure
97.

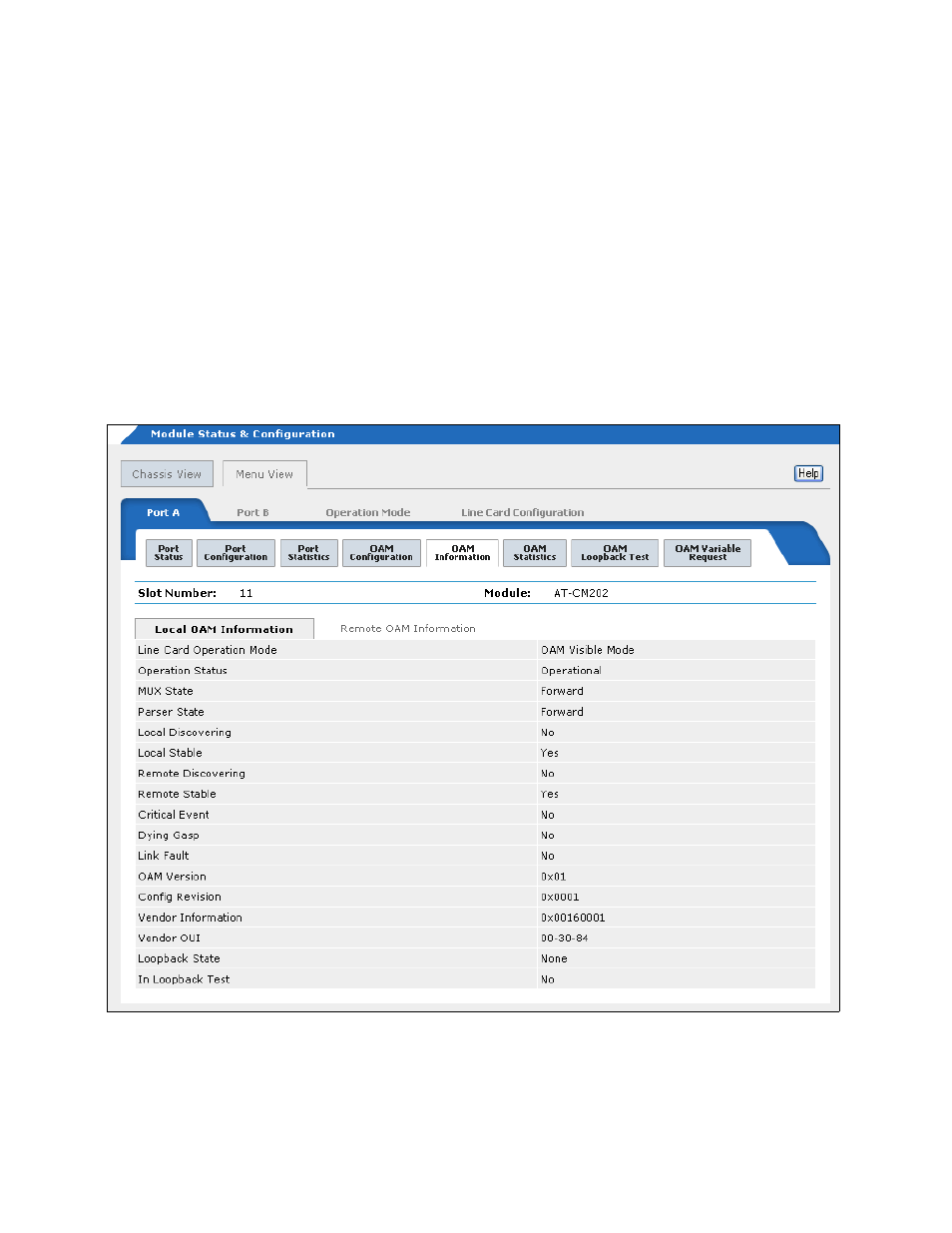

Figure 97. OAM Local Information Tab
This tab is for viewing purposes only. The items are defined in Table 26
on page 215.
