Chapter 4: Configuring the AT-CV5M02 Management Card
110
5. To save your changes in the master configuration file, go to the Main
Menu and select Configuration to display the Configuration menu and
select Save System and All Line Card Configurations.
Web Browser
To configure the 10/100Base-TX port on the management card from the
web browser windows:
1. Select Module Status and Configuration from the menu bar.
2. In the Chassis View, click the 10/100Base-TX port on the
management card. Alternatively, select the Menu View tab and click
the name of the management card. The Port A tab for the
management card is shown in Figure 37.

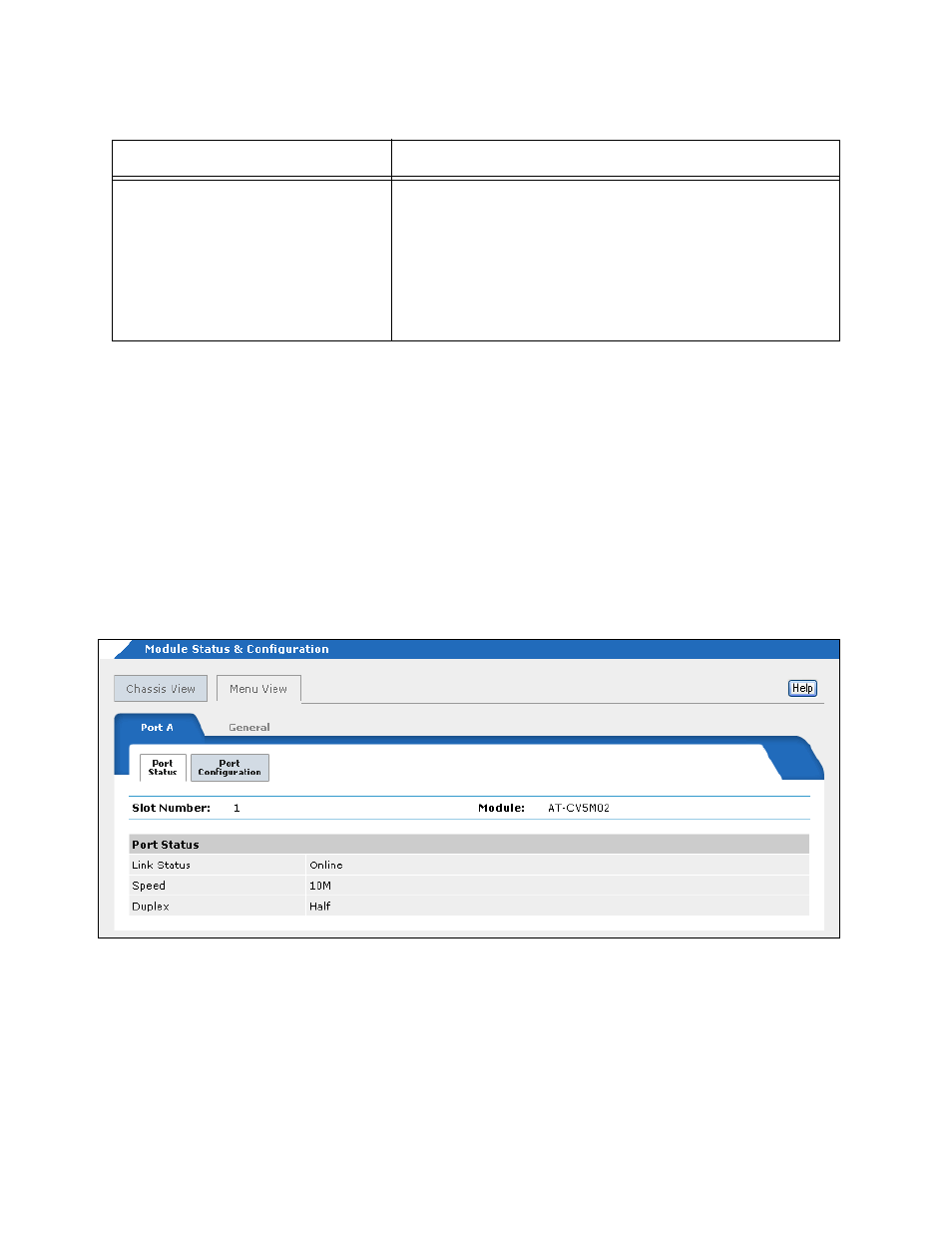

Figure 37. Port A Tab for the Management Card
Auto negotiate
Manual negotiate
Full
Half
Hundred Base <100Base-TX>
Ten Base <10Base-T>
(Continued)
When configuring a port, observe the following
guidelines:
ˆ If the network device connected to a line card port
does not use Auto-Negotiation and has a fixed
duplex mode of full duplex, disable Auto-Negotiation
on the port and set the speed and duplex mode
manually to avoid a duplex mode mismatch.
Table 11. Port Configuration Menu for the 10/100Base-TX Port on the Management Cards
Setting Description
