Allied Telesis AT-S99 - Manual (Page 155)

AT-S73 and AT-S99 Management Software User’s Guide
155
7. To save your changes in the master configuration file, wait for the line
card to finish initializing its management software and then select Save
Line Card Configuration from the Line Card Configuration Menu.
Web Browser
To return the parameter settings of the AT-CM Line Cards to the default
settings from the web browser windows:
1. Select Module Status & Configuration from the menu bar.
2. In the Chassis View, click either port on the AT-CM Line Card you want
to configure. Alternatively, select the Menu View tab and click the
name of the line card. You can configure only one line card at a time.
3. Click the Line Card Configuration tab.
4. Select the Default Configuration tab, shown in Figure 64.

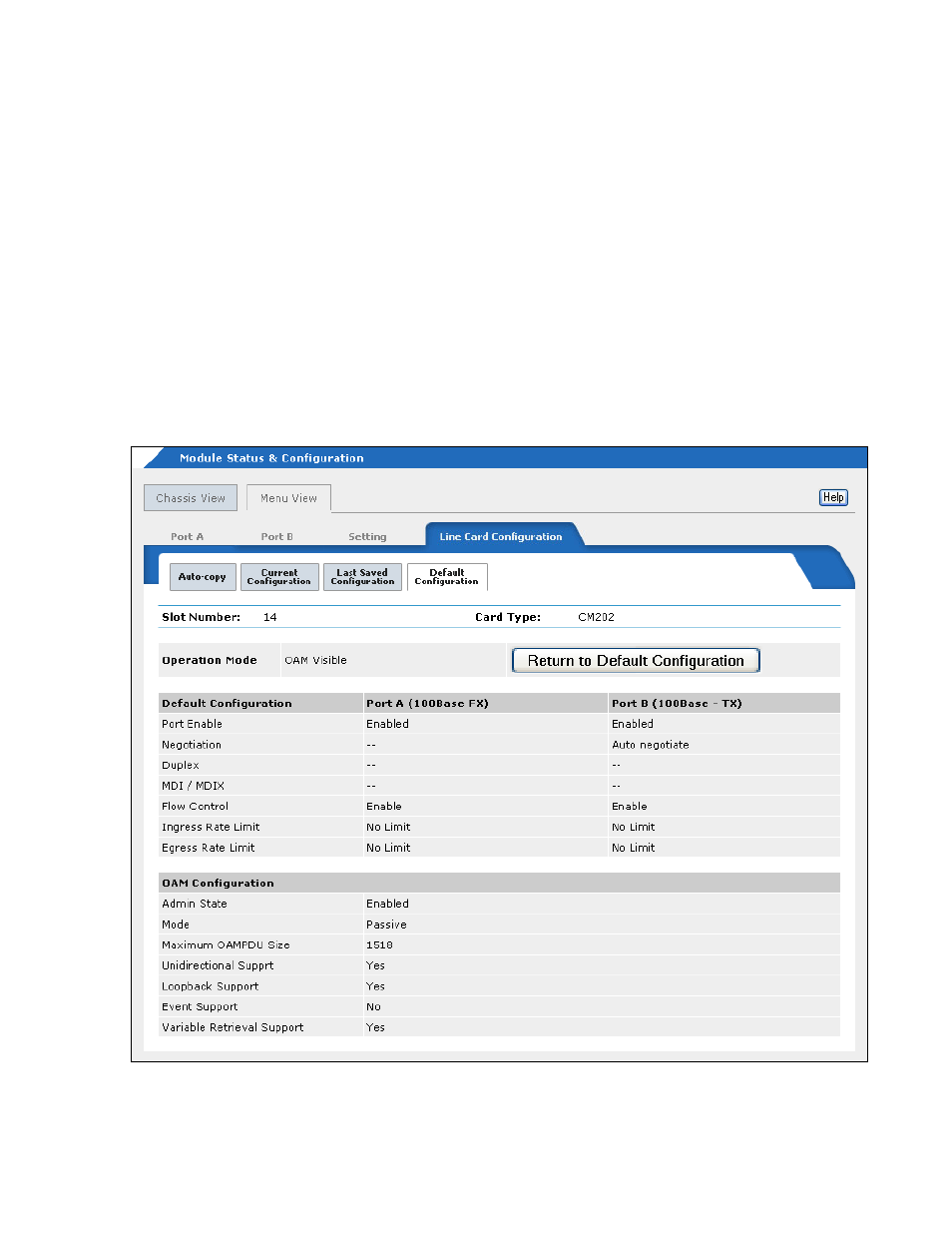

Figure 64. Default Configuration Tab
