Web Browser To set the operating modes of the AT-CM and AT-CV Line Cards from the
web browser windows:
1. Select Module Status & Configuration from the menu bar.
2. In the Chassis View, click one of the ports on the line card you want to
configure. Alternatively, select the Menu View tab and click the name
of the line card. You can configure only one line card at a time.
3. Click the Setting tab, shown in Figure 58.

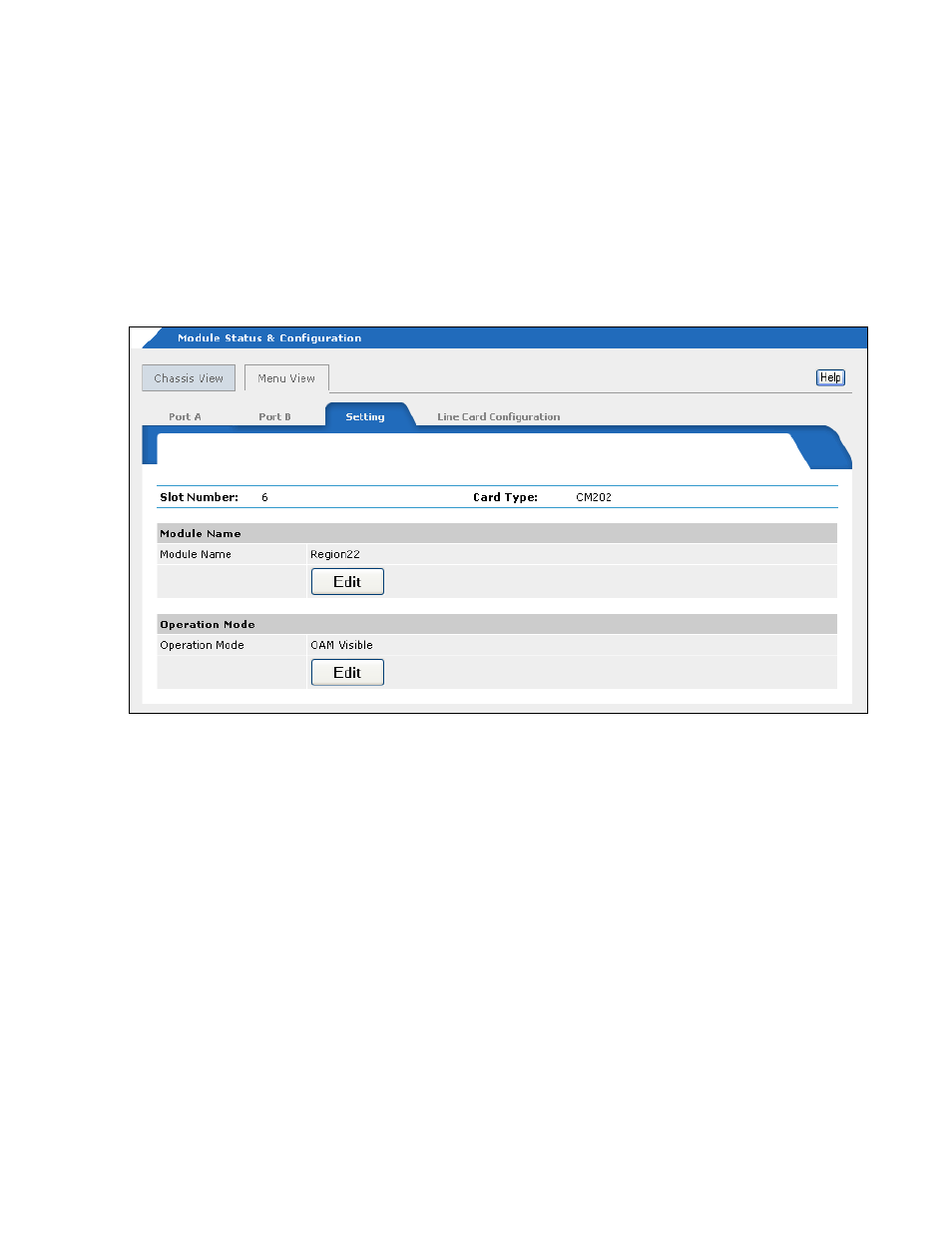

Figure 58. Setting Window
4. Click Edit in the Operation Mode section of the window.
5. In the Operation Mode pop-up window, select the new operating mode
for the line card from the pull-down menu. You can select only one
operating mode. The “Line Card DIP Switch Mode” selection activates
the DIP switches on the line card so that the operating mode is
controlled with the switches instead of the management software.
6. Click Update.
The management card automatically updates its master configuration
file with the new setting for the line card’s operating mode. Afterwards,
the Module Status and Configuration menu is displayed again.
The line card resets. When the operating mode is changed on an
AT-CM Line Card, the device has to initialize its management software
and configure its operating parameters before resuming normal
operations. In contrast, the AT-CV Line Cards immediately return to
