AT-S73 and AT-S99 Management Software User’s Guide
193
that had a management card whenever you wanted to configure the T1/E1
ports.

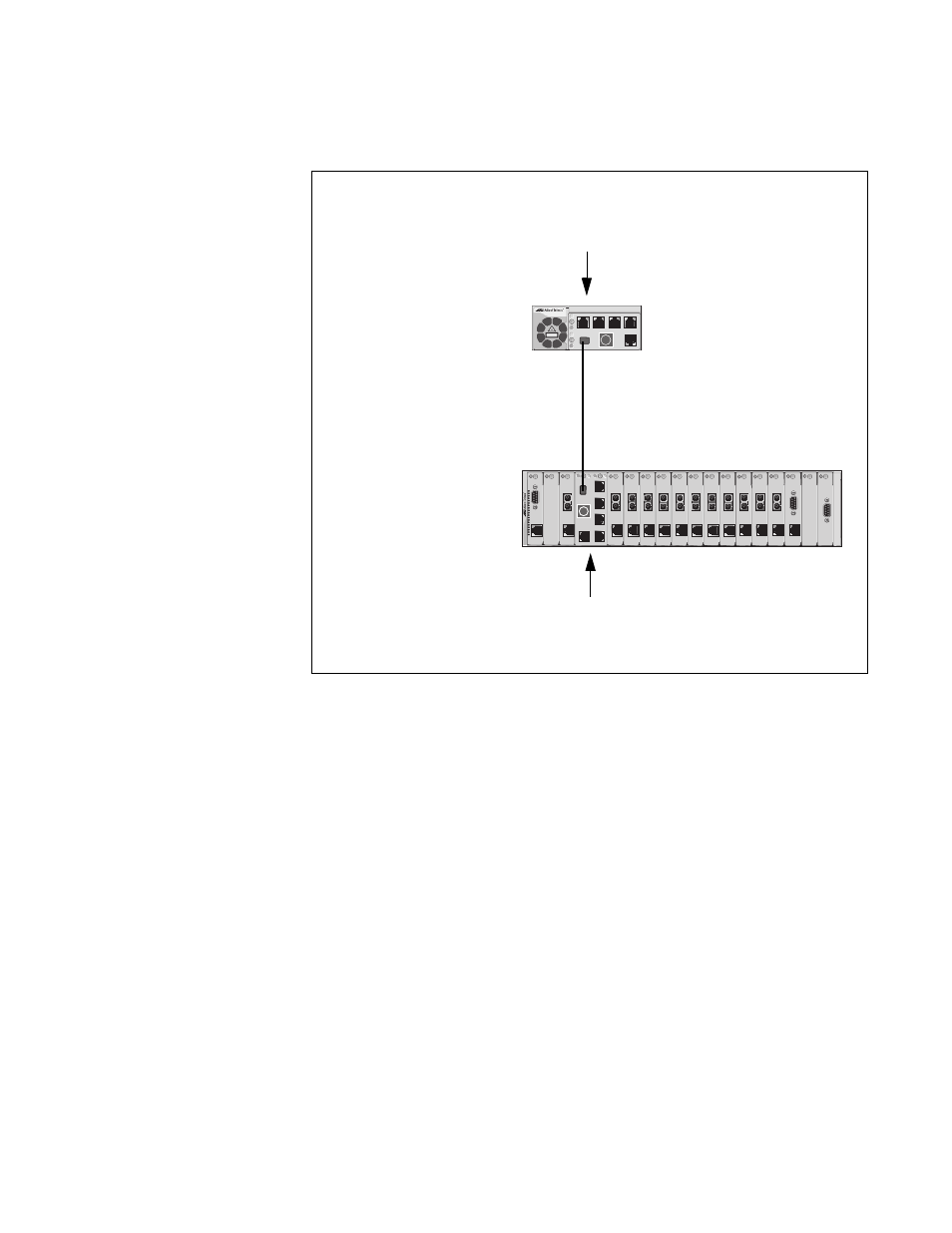

Figure 82. UART Setting on the AT-CM70S Line Card
Here are the general steps to configuring a pair of AT-CM70S Line Cards:
1. For the initial configuration, install both AT-CM70S Line Cards in an
AT-CV5000 Chassis that has the AT-CV5M02 Management Card.
2. Using the menus interface in the management card, change the UART
setting on both cards to UART backplane mode so that you can
configure all of the card’s parameter settings, including the T1/E1
ports, using the management card.
3. Using the management card, configure all of the settings of the two
AT-CM70S Line Cards, including the settings for the T1/E1 ports, as
required by your network.
4. For the AT-CM70S Line Card intended for the remote site, change its
UART setting to UART local console mode after configuring its T1/E1
ports. This will make it possible for you to adjust the settings of the T1/
E1 ports from the Console port when the line card is installed at the
remote site.
AT-CV1200
FAN1
PS1
RDY
A T -CV5000
AT-CV1203 Chassis
AT-CV5000 Chassis
with a Management
Card
AT-CM70S Line Card Set
to the UART Backplane
Mode
AT-CM70S Line Card Set
to the UART Local
Console Mode
