Figure 20 – Rockwell Automation 7000L PowerFlex Medium Voltage AC Drive (C-Frame) - ForGe Control User Manual
Page 43
Rockwell Automation Publication 7000L-UM301D-EN-P - June 2014
43
Drive Installation
Chapter 2

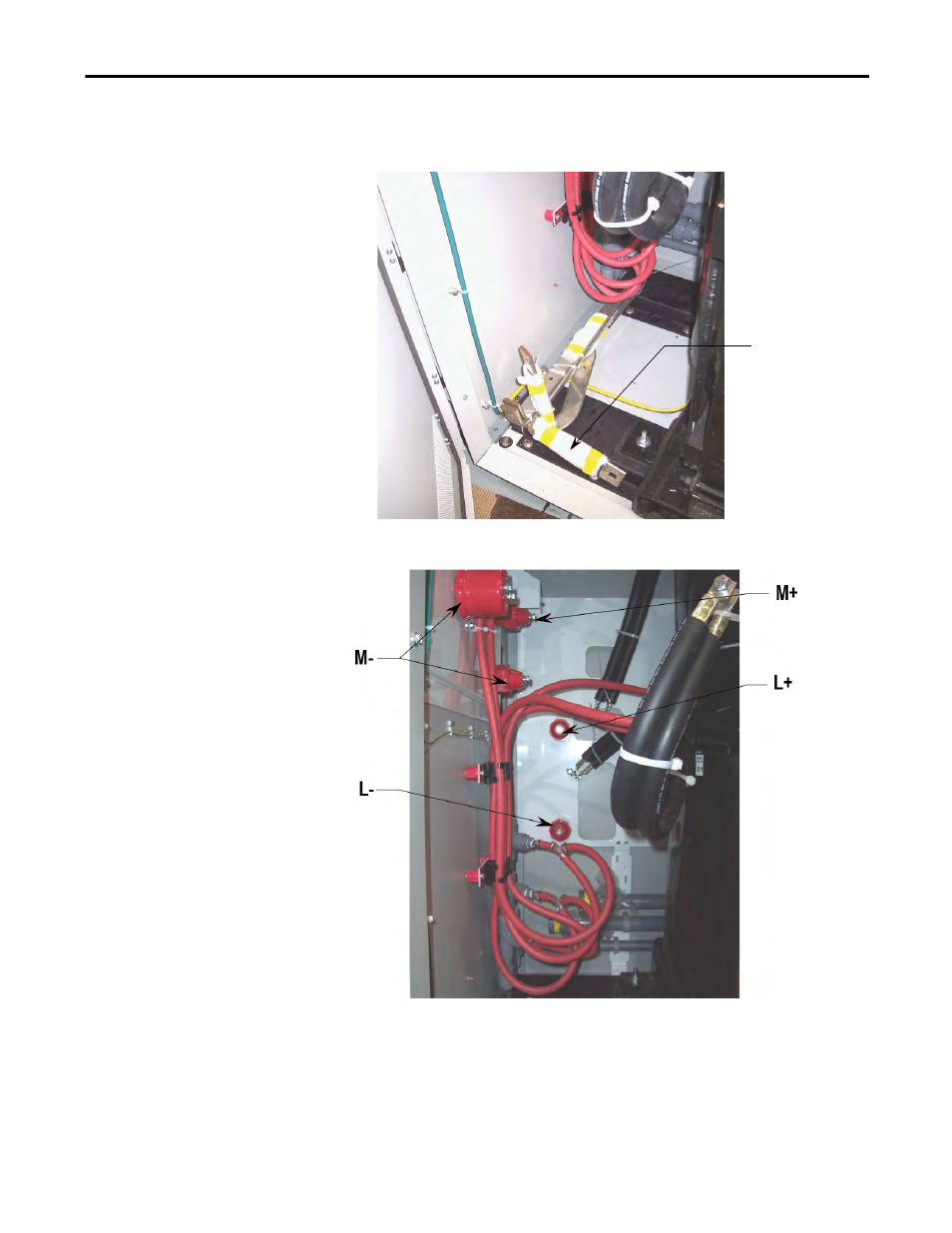

Figure 20 - DC Link Choke Cabinet
Power Bus (4) pieces; Ground bus (1) shipped disassembled
Figure 21 - DC Link Choke Cabinet before field power bus connections
MV Bus (4 pieces)
Ground Bus Link (1 piece)
Inside DC Link Choke Cabinet
