Rockwell Automation Publication 7000L-UM301D-EN-P - June 2014

211

Commissioning

Chapter 4

Table 11 - Plug 4 (4) – PWR

If any values are out of the expected range, a bad DC/DC converter is suspect.

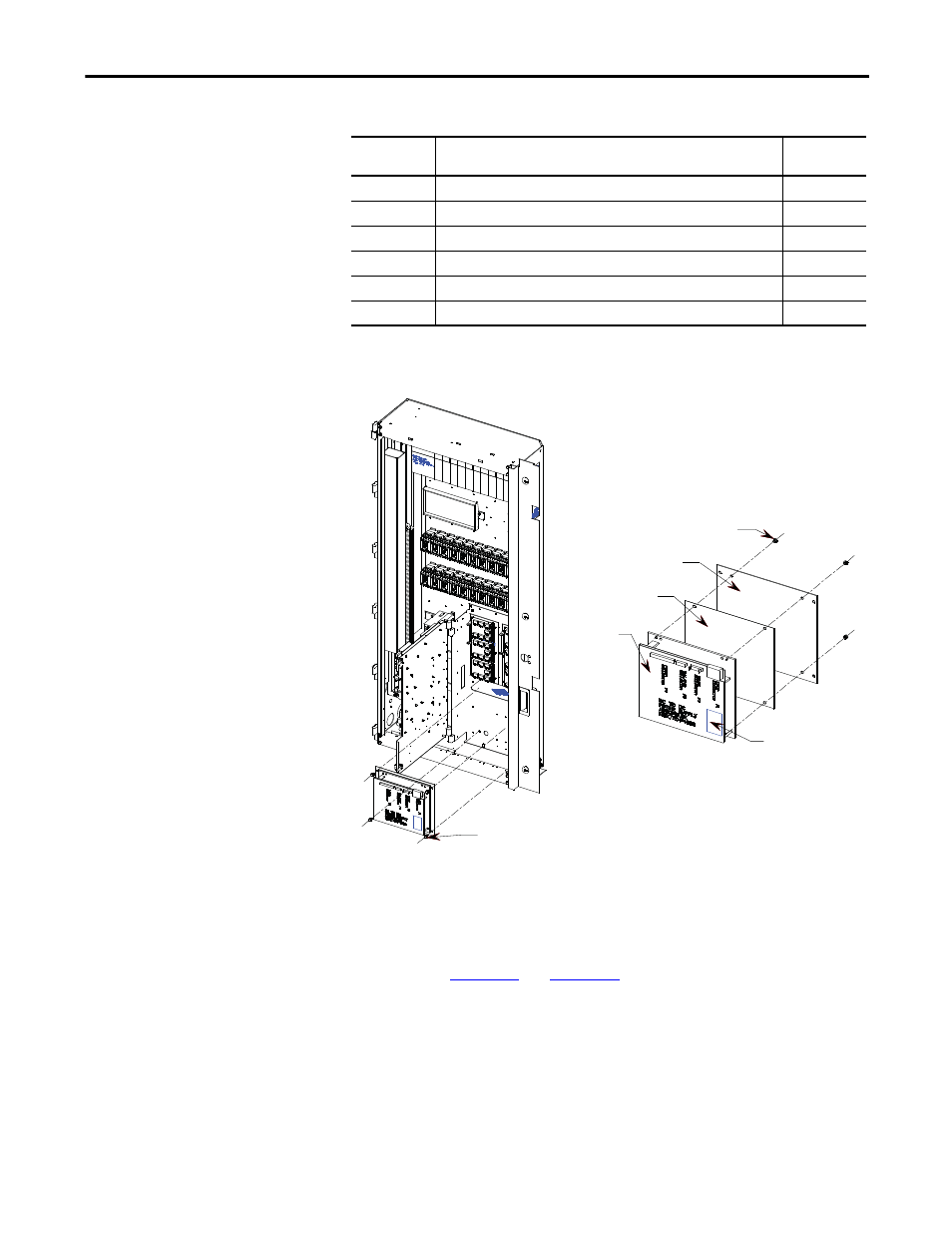

Figure 193 - DC/DC Converter (PS2)

SGCT Power Supplies (IGDPS)

Note:

Refer to

Figure 194

and

Figure 195

for location of IGDPS.

Terminal
Numbers

Description

Value

1

2

+24V_XIO (+24V,2A)–XIO_COMM (COM3) ±5%

3

4

+HECSPWR (+24V,1A)–LCOMM (COM2) ±1%

5

4

-HECSPWR (-24V,1A)–LCOMM (COM2) ±1%

6

7

+15V_PWR (+15V,1A)–ACOMM (COM1) ±0.5V

8

7

-15V PWR (-15V,1A)–ACOMM (COM1) ± 0.5V

9

10

+5V PWR (+5V,5A)–DGND (COM1) 5.1-5.5V

M4 (P.H.M.S.) and

nylon shoulder washer

Mounting Plate

Black Insulation

DC/DC

power supply

Part ID Label

M6 (H.H.T.R.S.)

VIEW “1”

VIEW “2”
