System Fill

There should be a 200 L (55 U.S. gallon) drum of coolant provided with the
drive. The drive takes approximately 170 L (45 U.S. gallons) to fill the system.
The drum SHOULD NEVER BE DISCARDED. In the event that you need to
drain the system, you will want to have this handy to store the coolant so that it
can be reused.

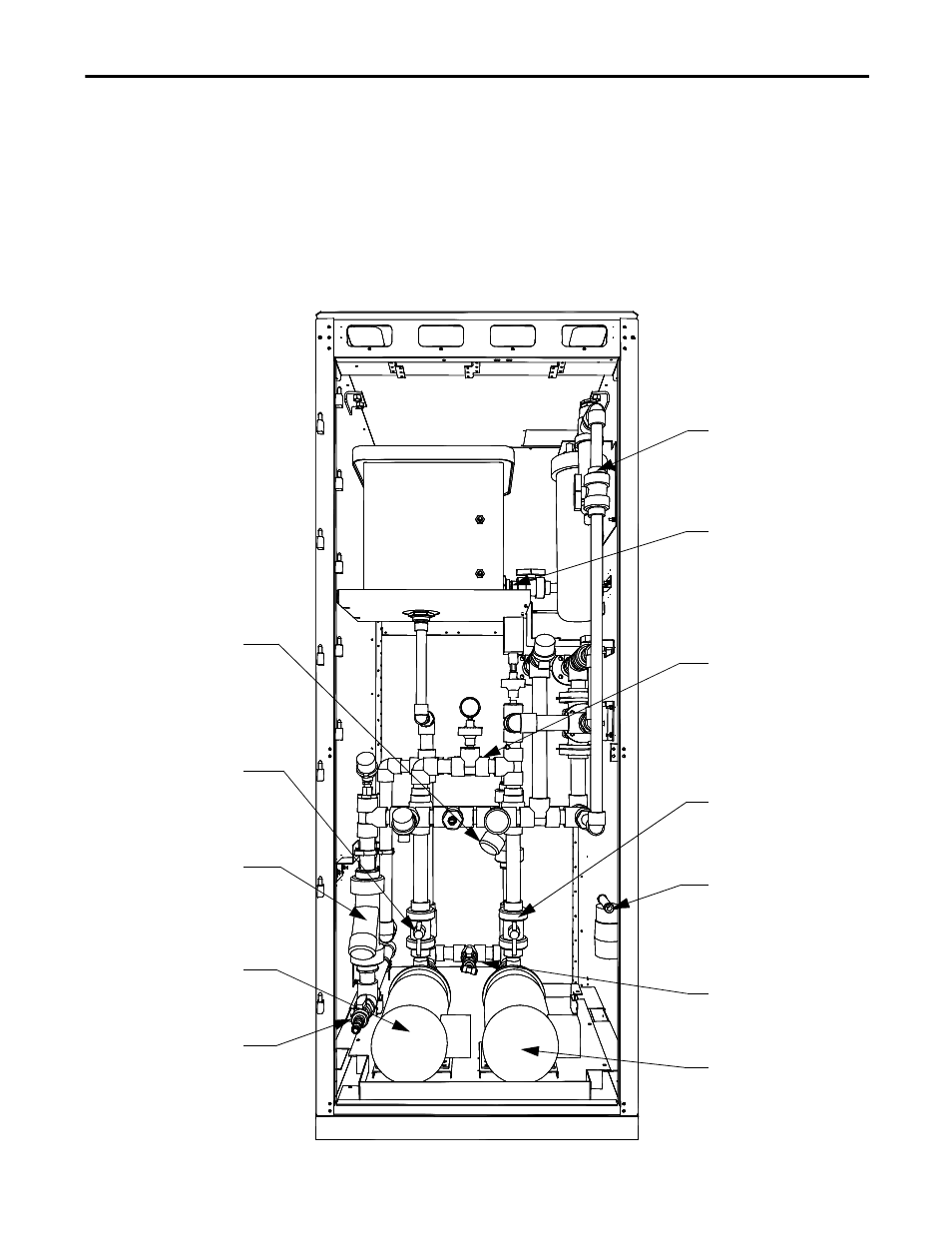

Figure 197 - Cooling Cabinet Overview showing Valve Locations – 1

V9 (if provided)

V2 (hidden)
(if provided)

V12

V7 drain/fill
(if provided)

V6 drain/fill

STR2

V11

STR1 (if provided)
