Rockwell Automation 7000L PowerFlex Medium Voltage AC Drive (C-Frame) - ForGe Control User Manual
Page 385
Rockwell Automation Publication 7000L-UM301D-EN-P - June 2014
385
Component Definition and Maintenance
Chapter 5
1.

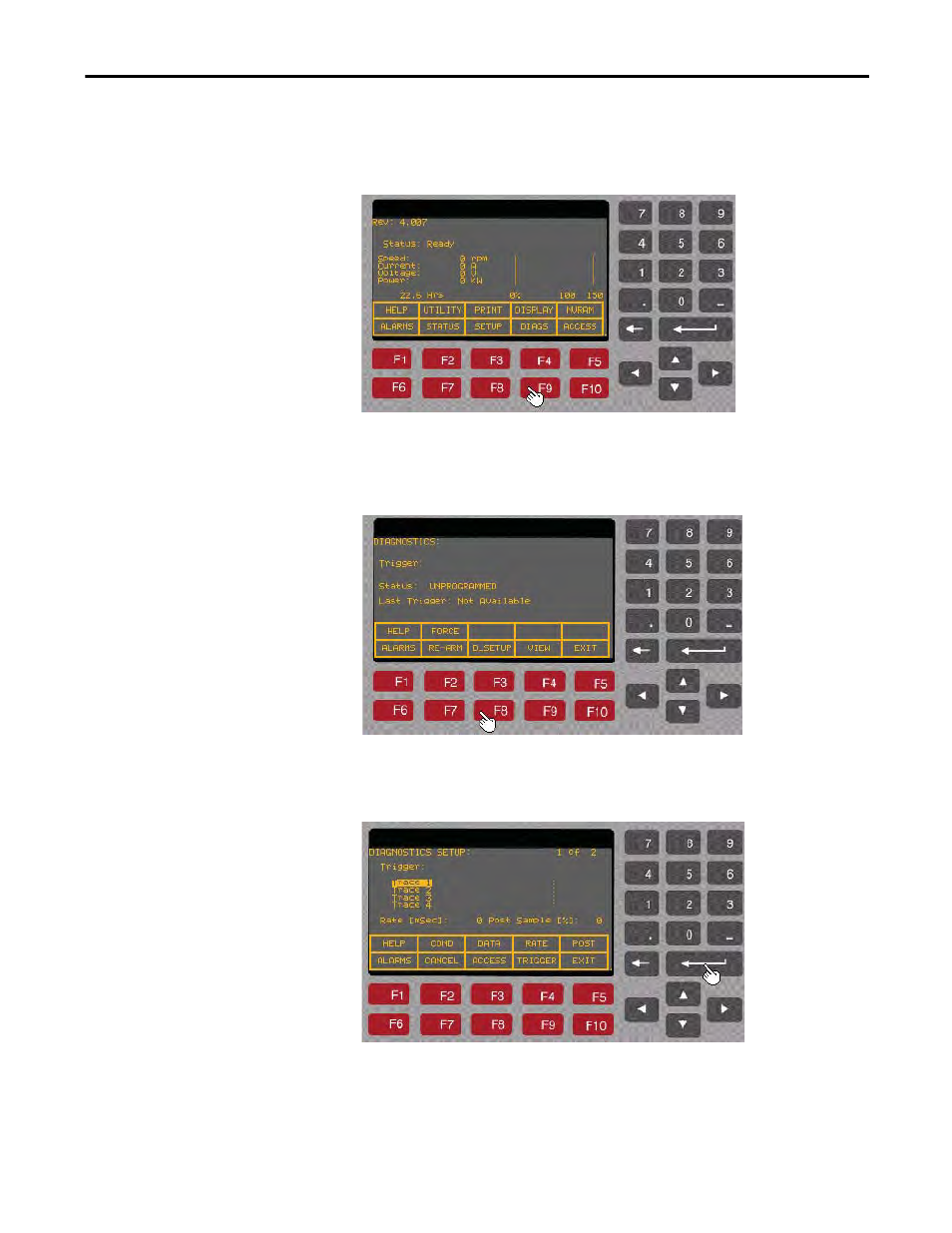

Press F9 [DIAGS] key on the main screen to display ‘Diagnostics’ screen
as shown in the picture below.
Figure 316 - Diagnostics screen
2.
Press F8 [D_SETUP]. The display will change to ‘Diagnostics Setup’
screen as shown in the picture below.
Figure 317 - Diagnostics Setup
3.
With Trace-1 selected, press Enter key as shown in the picture below.
Figure 318 - Trace-1
