Rockwell Automation Publication 7000L-UM301D-EN-P - June 2014

127

Operator Interface

Chapter 3

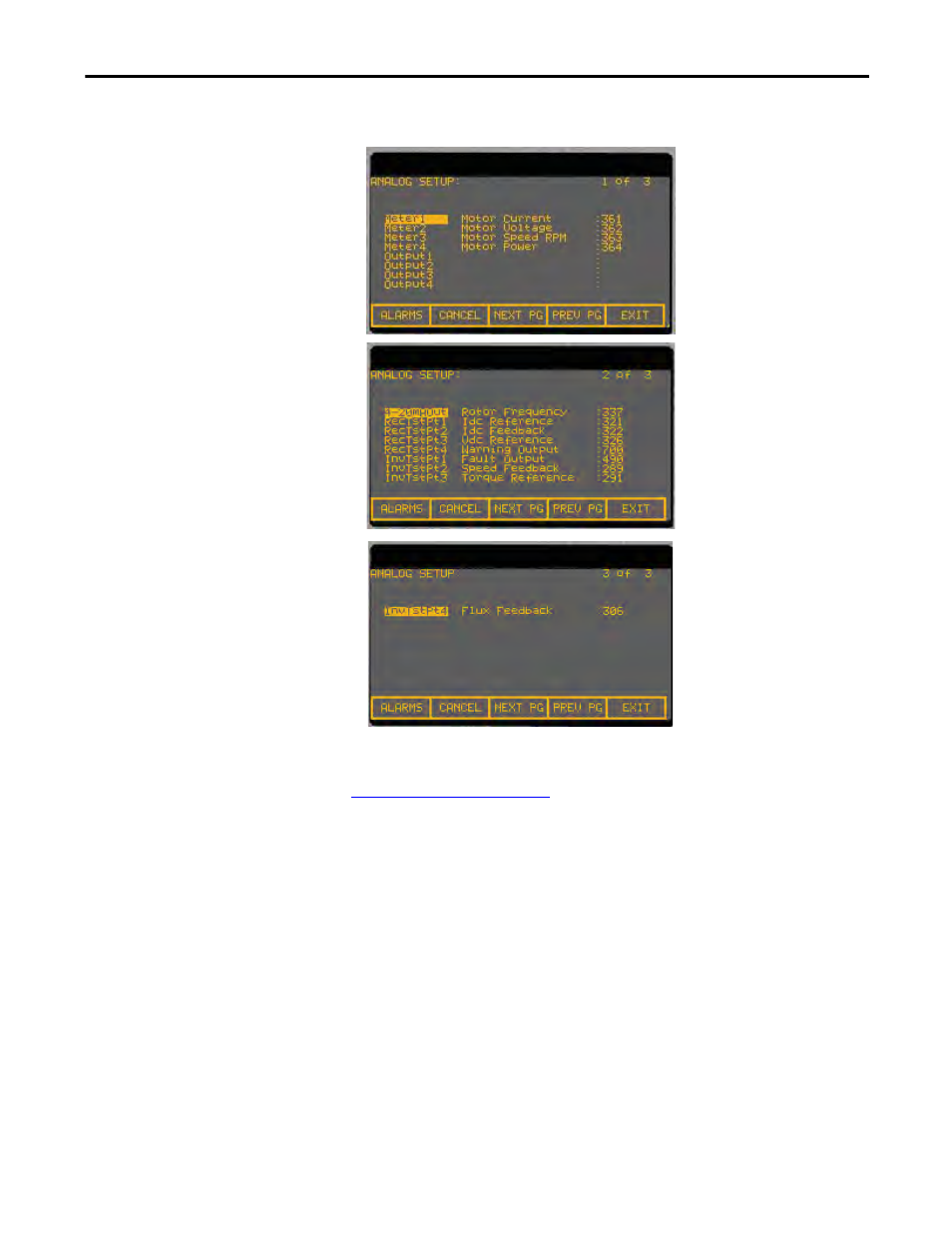

Figure 120 - Analog Setup

This will begin the selection process of a tag as described in the section entitled

Select a Parameter on page 110

. When you have completed the selection process,

the selected tag will be assigned to the port. To remove an assignment to the
highlighted port, press the [delete] (Backspace) key.

The changes made do not take affect until you press [F10] and exit the screen.
Any time prior to this you may cancel all of the changes made after coming to the
screen by pressing the [F7] key.
